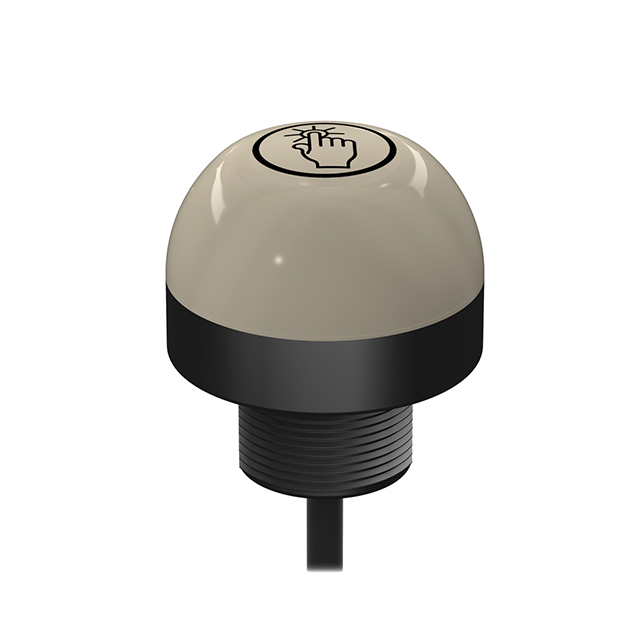

Product K50PTKQP
Pick-to-Light
Placement Sensor
Capacitive Sensor
Order number: 3806182Alternative order number : 806182
- Protection classes IP67 IP69K

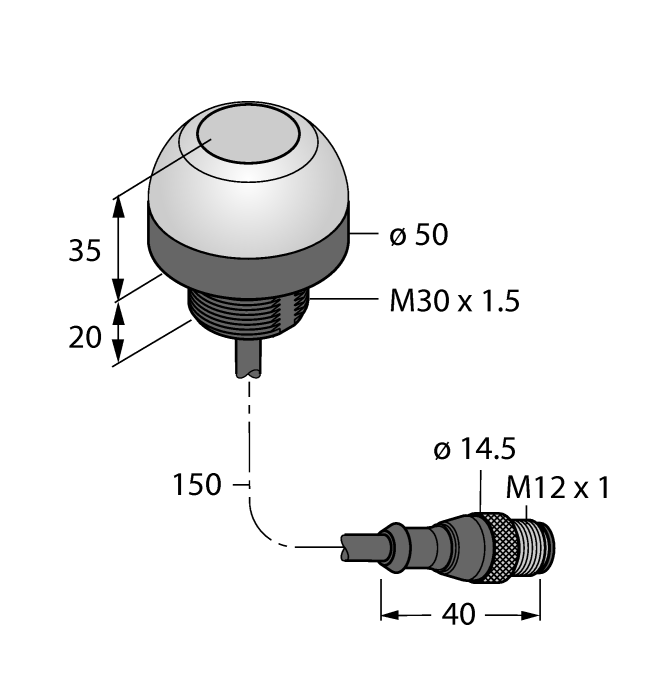

- Cable with M12 x 1 male connector, 4-pin, 150 mm
- RGB LED display
- Control of user-defined or predefined light colors
- Flashing function, alternation, 2-color display, intensity check and other animations
- Parameterizable via IO-Link
- Capacitive sensor of the second generation
- High immunity to false actuation by splashing, detergents, oils and other contaminants
General data
| EAN | 662488047337 |
| eCl@ss-Code (V5.1.4): | 27371201 -/- Indicator |
| Customs tariff number | 85365019000 |
| Country of origin | US |
| Weight | 158.76 g |
Technical Data
| Function | Touch Button |
| Light type | RGB |
| Dimmable | Programmable |
| Output function | Programmable, PNP/NPN |
| Communication protocol | IO-Link |
| Electrical connection | Cable with connector, M12 × 1 |
| Cable length | 0.150 m |
| Housing material | Plastic, PC, Black |
| Window material | Polycarbonate, diffuse |
| Ambient temperature | -40…+50 °C |
| Protection class | IP67/IP69 |
