Product RU300U-M30M-LFX-H1151
Ultrasonic Sensor
Diffuse Mode Sensor
Order number: 100000365- Smooth sonic transducer face

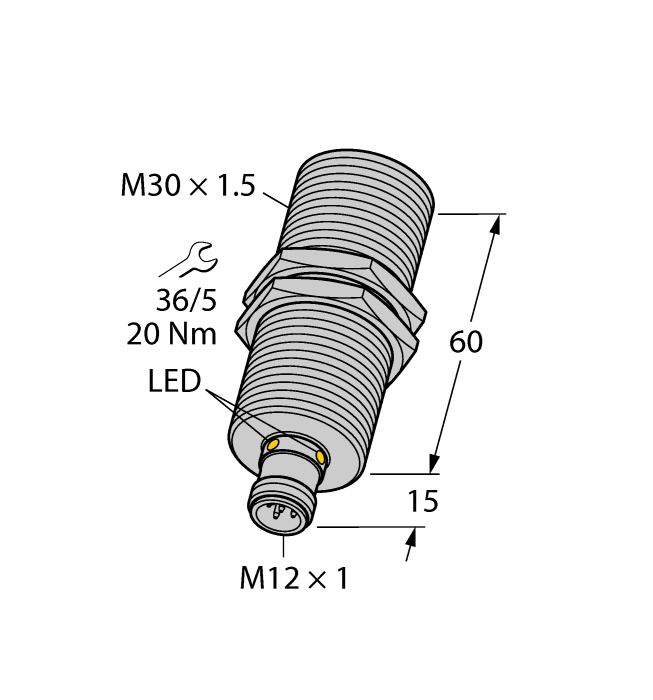

- Cylindrical housing M30, potted
- Connection via M12 × 1 male
- Temperature compensation
- Blind zone: 30 cm
- Range: 300 cm
- Resolution: 1 mm
- Aperture angle of sonic cone: ±15 °
- Frequency output 300…2000 Hz (150…1000 Hz)
- Frequency range selectable via FS control line (see functional principle)
General data
| EAN | 4047101437638 |
| eCl@ss-Code (V5.1.4): | 27272803 -/- Ultrasonic proximity switch |
| Customs tariff number | 85437090990 |
| Country of origin | DE |
| Weight | 180 g |
Technical Data
| Function | Proximity switch |
| Operating mode | Time-of-Flight |
| Design | Threaded barrel |
| Construction size | M30 x 1.5 |
| Radiation direction | straight |
| Range | 300…3000 mm |
| Resolution | 1 mm |
| Operating voltage | 15…30 VDC |
| Output function | Frequency |
| Electrical connection | Connector, M12 × 1 |
| Housing material | Metal, CuZn, Nickel Plated |
| Ambient temperature | -25…+70 °C |
| Protection class | IP67 |
| Approvals | CE, cULus |
| Special features | Compact |
Mounting accessories
|
MW30
Mounting bracket for threaded barrel sensors; material: Stainless steel A2 1.4301 (AISI 304) |
6945005 |
Connectivity accessories
|
RKC4.5T-2/TEL
Connection cable, M12 female connector, straight, 5-pin, cable length: 2 m, jacket material: PVC, black; cULus approval |
6625016 |
|
WKC4.5T-2/TEL
Connection cable, M12 female connector, angled, 5-pin, cable length: 2 m, jacket material: PVC, black; cULus approval |
6625028 |
Functional accessories
|
IM21-14-CDTRI
Rotation speed monitor with display indication, freely parametrizable monitoring functions, start-up bypass, interlock function, pulse output, current output |
7505650 |
|
IM12-FI01-2SF-2I-C0/24VDC | 7580229 |
|
|
IM12-FI01-1SF-1I1R-C0/24VDC | 7580225 |
|
|
IM12-FI01-2SF-1I1R-C0/24VDC/K71 | 100051431 |
|
|
IM12-FI01-2SF-2I-C0/24VDC/K71 | 100051432 |
