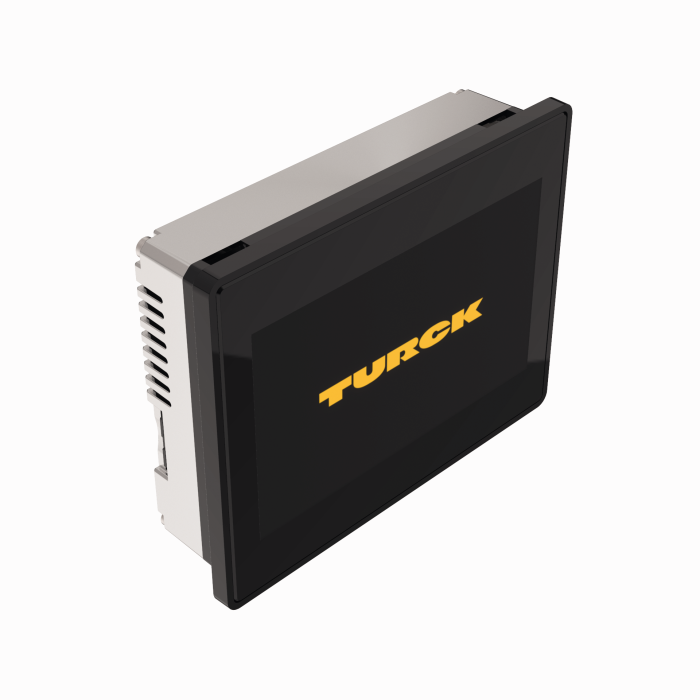

Product  TX707-P3CV01

TX700 HMI/PLC Series

7” Display - CODESYS V3 PLC with TARGET and WEB VISU

High-Quality Metal Housing and Glass Front with a Capacitive Touch

Order number: 100002030
    • 7" TFT wide screen color display
    • LED backlight
    • 800 x 480 pixel resolution
    • 16 M colors
    • Capacitive touchscreen with glass front
    • 3 RJ45 Ethernet ports with 10/100 Mbit
    • 1 serial interface (RS232, RS485, RS422)
    • 2 USB host ports
    • 1 SD card slot

General data

EAN 4047101456370
eCl@ss-Code (V5.1.4): 27242302 -/- Graphic panel (display and console)
Customs tariff number 85389099990
Country of origin IT
Weight 1560 g

Technical Data

Product series TX700
Device type Cloud Gateway, Industrial Control
Protection class IP66 front, IP20 rear
Interface RS232, RS485, 3 × RJ45
Radio interface Optional erweiterbar
Fieldbus master PROFINET, EtherNet/IP, Modbus TCP, Modbus RTU, CANopen, SAE J1939, EtherCAT
Fieldbus slave Modbus TCP, Modbus RTU
Programming CODESYS V3
