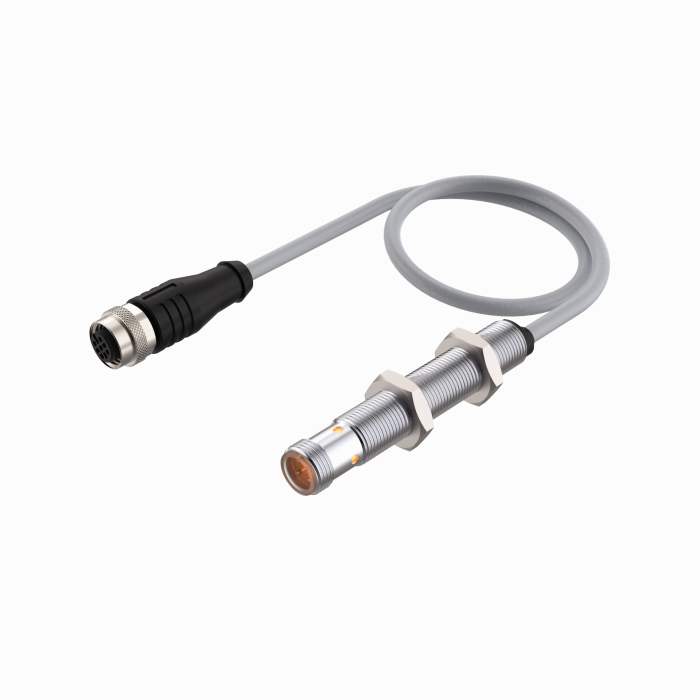

Product ILC-AIU-M12-IOL8X2-H1141
Inline Converter
Analog to IO-Link Converter
Order number: 100036698- Direct connection to an analog sensor due to compact design

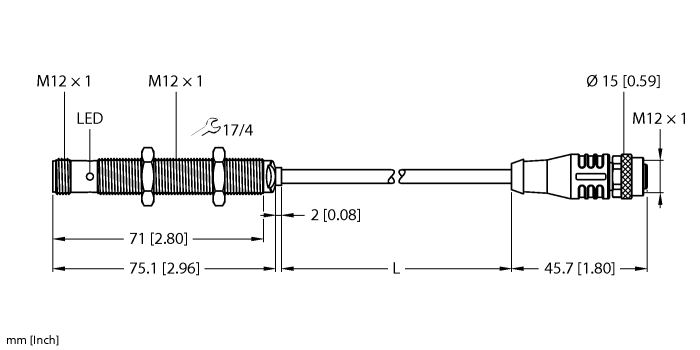

- 300-mm cable ("L") with M12 × 1 female connector, 4-pin
- M12 × 1 male connector, 4-pin
- Operating voltage: 18…30 VDC
- Protection class: IP67
- Parameterizable via IO-Link
- Input (300-mm cable with female connector, M12 × 1, 4-pin): adjustable; current 0…20/4…20 mA and voltage 0…5/1…6/0…10 V
- Output (M12 × 1 male connector, 4-pin): IO-Link
- For connecting analog sensors to an IO-Link master
General data
| EAN | 4047101591040 |
| Customs tariff number | 85437090990 |
| Country of origin | DE |
| Weight | 48 g |
Technical Data
| Operating voltage | 18…30 VDC |
| Communication protocol | IO-Link |
| Electrical connection | Connector Cable with connector, M12 × 1 |
| Cable length | 0.30 m |
| Housing material | Metal/plastic, CuZn |
| Ambient temperature | -25…+70 °C |
| Protection class | IP67 |
Mounting accessories
|
MW12
Mounting bracket for threaded barrel sensors; material: Stainless steel A2 1.4301 (AISI 304) |
6945003 |
Connectivity accessories
|
RKC4.4T-2-RSC4.4T/TEL
Extension cable, M12 female connector, straight, 4-pin to M12 male connector, straight, 4-pin, cable length: 2 m, jacket material: PVC, black; cULus approval |
6625208 |
|

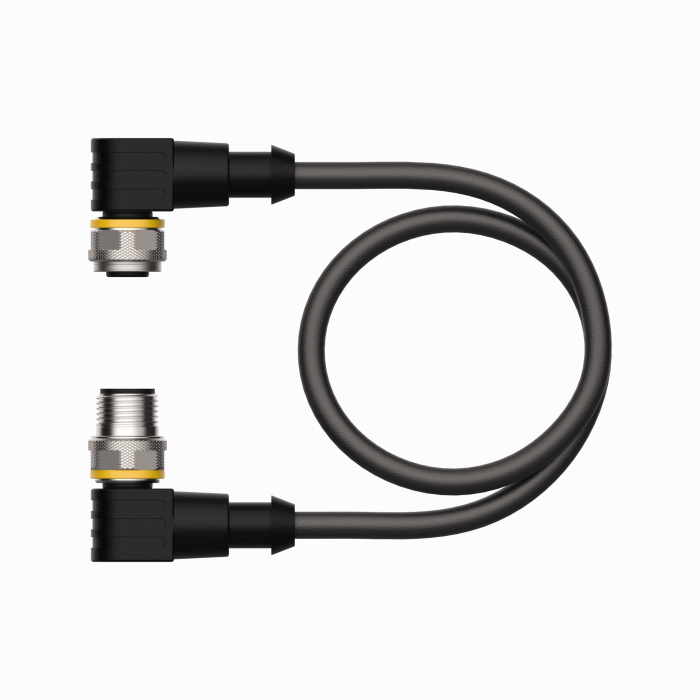

WKC4.4T-2-WSC4.4T/TEL
Extension cable, M12 female connector, angled, 4-pin to M12 male connector, angled, 4-pin, cable length: 2 m, jacket material: PVC, black; cULus approval |
6625256 |
