Product  BID1.5-G120KK-AP6-H1141

Inductive Sensor

For High Pressures

Order number: 1682001

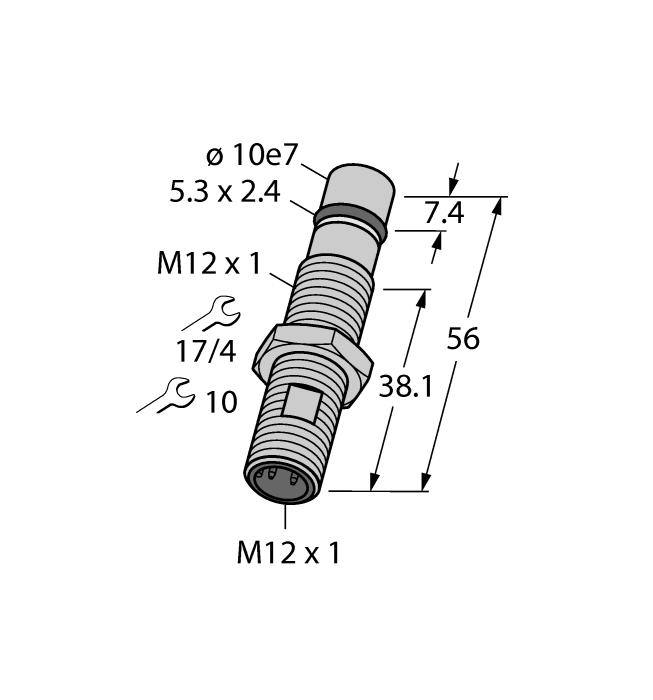

    • Threaded barrel, M12 x 1
    • Stainless steel, 1.4301
    • Admissible static pressure 500 bar
    • Admissible peak pressure 1000 bar
    • Suitable for use in high vacuum
    • DC 3-wire, 10…30 VDC
    • NO contact, PNP output
    • M12 x 1 male connector
#

General data

EAN 4047101330922
eCl@ss-Code (V5.1.4): 27270101 -/- Inductive proximity switch
Customs tariff number 85365019000
Country of origin HU
Weight 35 g

Technical Data

Design Threaded barrel
Construction size M12 x 1
Rated switching distance 1.5 mm
Mounting conditions Flush
Operating voltage 10…30 VDC
Output function NO contact, PNP
Switching frequency 0.60 kHz
Electrical connection Connector, M12 × 1
Housing material Stainless steel, 1.4305 (AISI 303)
Ambient temperature -25…+80 °C
Protection class IP68
Special features Pressure resistant
