Product BCT10-S30-UN6X2T-H1151
Capacitive Sensor

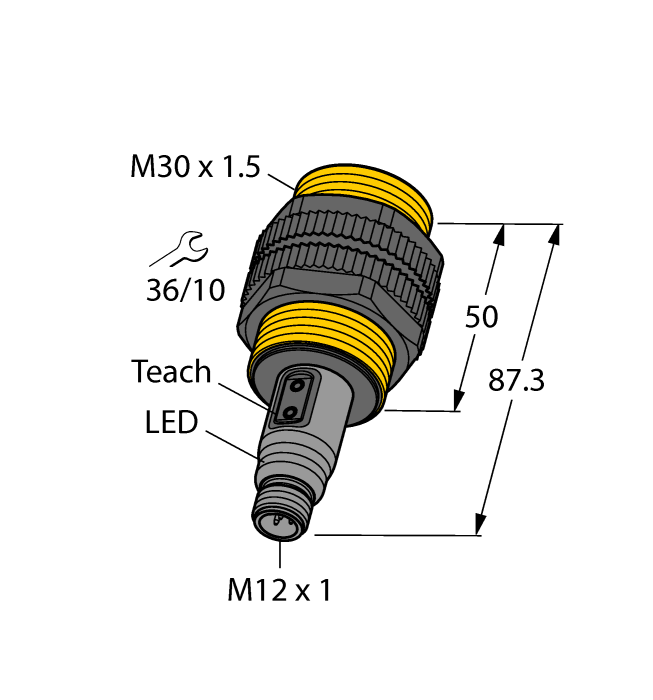

Order number: 2101600- M30 × 1.5 threaded barrel
- Plastic, PA12‐GF30
- Teach-in and configuration via buttons on the device, pin 5 and IO-Link
General data
| EAN | 4047101332759 |
| eCl@ss-Code (V5.1.4): | 27270102 -/- Capacitive proximity switch |
| Customs tariff number | 85365019000 |
| Country of origin | CN |
| Weight | 67 g |
Technical Data
| Design | Threaded barrel |
| Construction size | M30 x 1.5 |
| Rated switching distance | 15 mm |
| Operating voltage | 18…30 VDC |
| Output function | NO/NC, NPN |
| Communication protocol | IO-Link |
| Electrical connection | Connector, M12 × 1 |
| Housing material | Plastic, PA12-GF30, PEI |
| Ambient temperature | -25…+70 °C |
| Protection class | IP67 |
| Approvals | UL |
Data Sheets
| German | 513 KB |
| English | 512 KB |
| French | 513 KB |
| Spanish | 512 KB |
| Czech | 513 KB |
| Dutch | 512 KB |
| Romanian | 512 KB |
| Russian | 652 KB |
| Polish | 513 KB |
| Chinese | 595 KB |
| Turkish | 374 KB |
