Product TGR3/8MPFMQ
Sensing Tip
Plastic Fiber
Order number: 3023268Alternative order number : 23268
- For level measurements with fork plastic optical fibers of the type PBT46U and PBT26UM6M.1
- Housing made of polypropylene with 3/8-32 male thread
- Probe made of quartz glass
- ambient temperature of -30 °C…+70 °C
General data
| EAN | 662488232689 |
| Customs tariff number | 39269097900 |
| Country of origin | US |
| Weight | 40 g |
Technical Data
| Detection type | medium contact |
| Medium | liquids |
| Measuring principle | Optical |
| Materials (contact with media) | Quartz |
| Housing material | Plastic |
| Medium temperature | -30…+70 °C |
| Ambient temperature | -30…+70 °C |
| Protection class | IP67 |
Functional accessories
|

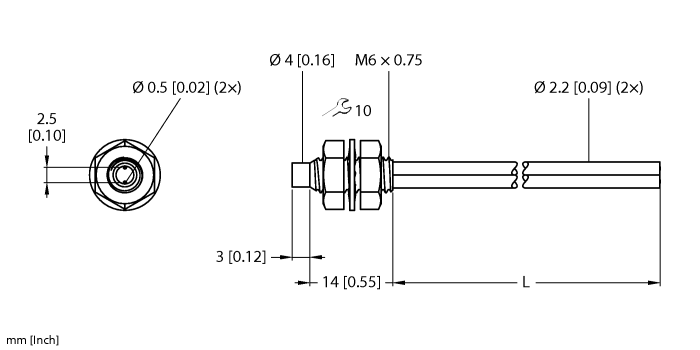

PBT26UM6M.1
Plastic fiber-optic sensor, operating mode: Diffuse mode sensor, M6 threaded sleeve, preassembled wire without end tip, polyethylene outer jacket, ambient temperatures of -30 °C…+70 °C; length: 1829 mm, core diameter: 0.5 mm |
3065942 |
|

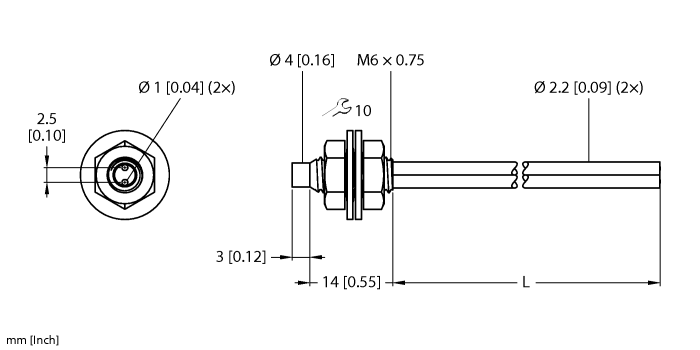

PBT46UM6M.1
Plastic fiber-optic sensor, operating mode: Diffuse mode, M6 threaded sleeve, preassembled wire without end tip, polyethylene outer jacket, ambient temperatures of -30 °C…+70 °C, length: 1829 mm, core diameter: 1 mm |
3077833 |
