Product SLE30B6V W/30'
Photoelectric Sensor
Bifurcated Retroreflective Sensor
Order number: 3056536- Cable, PVC, 9 m, 5-wire
- Protection class IP67
- Slot width 30 mm
- Sensitivity adjusted via teach button
- Operating voltage: 10…30 VDC
- Switching output, bipolar
- Light or dark operation
General data
| EAN | 662488565367 |
| eCl@ss-Code (V5.1.4): | 27270909 -/- Slot sensor |
| Customs tariff number | 85365019000 |
| Country of origin | US |
| Weight | 1 g |
Technical Data
| Function | Slot sensor |
| Design | Fork |

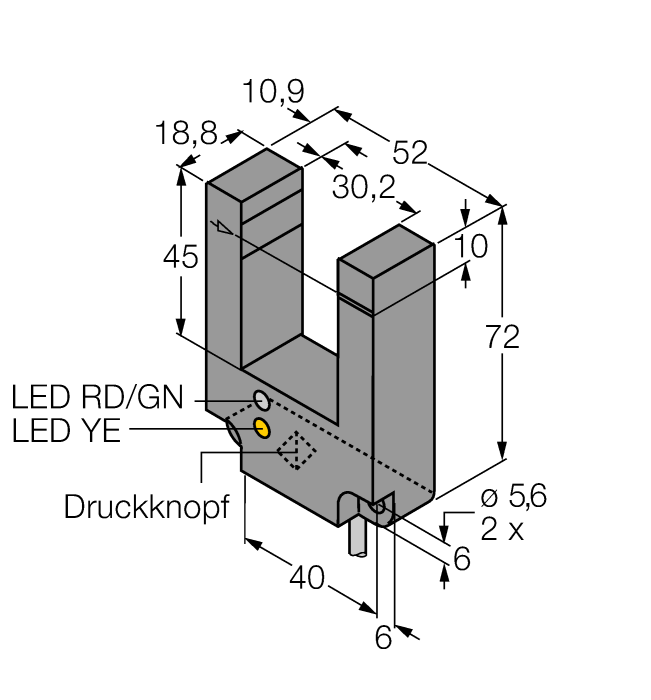

| Construction size | 72 x 18.8 x 52 mm, SL30 |
| Light type | Red |
| Operating voltage | 10…30 VDC |
| Output function | NO contact, PNP/NPN |
| Electrical connection | Cable |
| Cable length | 9.0 m |
| Housing material | Plastic, ABS, Black |
| Ambient temperature | -20…+70 °C |
| Protection class | IP67 |
