Product M18TB14
Temperature sensor
Passive Infrared Sensor
With Switching Output
Order number: 3073651Alternative order number : 73651
- Connection via cable, 2 m
- D:S ratio 14:1
- Operating voltage 10…30 VDC
- Switching point adjustable via teach-in
- Temperature measuring range 0…300 °C
General data
| EAN | 662488736514 |
| eCl@ss-Code (V5.1.4): | 27200211 -/- Radiation temperature measurement device |
| Customs tariff number | 85365019000 |
| Country of origin | US |
| Weight | 205 g |
Technical Data
| Detection type | contactless |
| Design | Tube |
| Measuring range | 0…300 °C |
| D:S ratio | 14:1 |

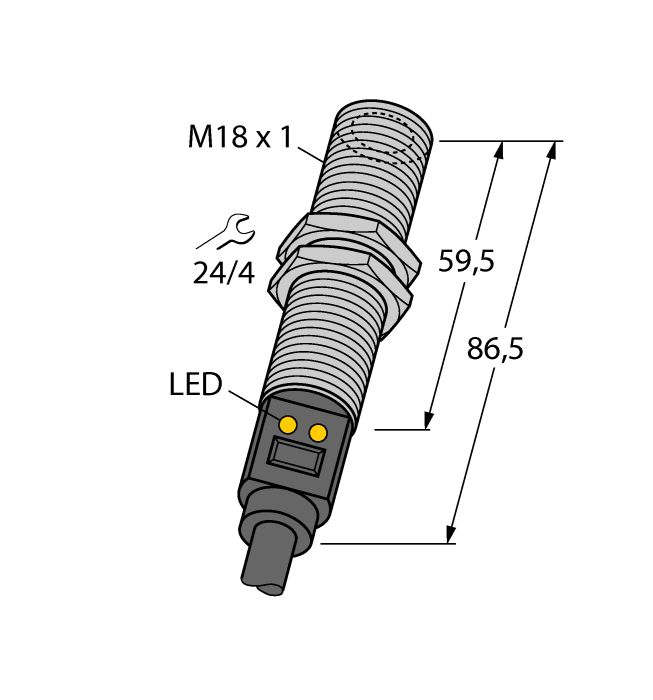

| Process connection | M18 × 1 |
| Operating voltage | 10…30 VDC |
| Electrical output | Switching output |
| Communication protocol | 1-wire-serial |
| Electrical connection | Cable |
| Cable length | 2.0 m |
| Housing material | Metal, Stainless steel, Grey |
| Ambient temperature | -20…+70 °C |
| Protection class | IP67 |
