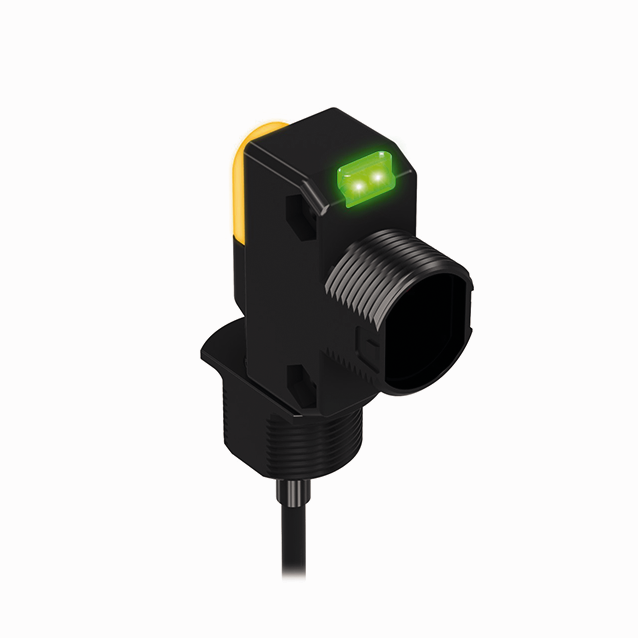

Product DS18VP6LPQ5
Photoelectric Sensor
Diffuse Mode Sensor
Order number: 3076557Alternative order number : 76557
- Male M12 x 1, 4-pin
- Protection class IP67
- LED all-round visible
- Operating voltage: 10…30 VDC
- PNP switching output
- Operating voltage: 10…30 VDC
- PNP switching output, changeover
General data
| EAN | 662488765576 |
| Customs tariff number | 85365019000 |
| Country of origin | US |
| Weight | 35 g |
Technical Data
| Function | Retroreflective Sensor |
| Operating mode | Polarized |
| Design | Rectangular with thread |
| Construction size | 31.1 x 15 x 47.9 mm, DS18 |
| Range | 5…3500 mm |
| Operating voltage | 10…30 VDC |
| Output function | NO/NC, PNP |
| Electrical connection | Cable with connector, M12 × 1 |
| Cable length | 0.150 m |
| Housing material | Plastic, Thermoplastic material |
| Ambient temperature | -20…+70 °C |
| Protection class | IP67 |
