Product TTR891APSC7D-2.0FL-CTR
Photoelectric Sensor
Reflex Light Grid
Roller Conveyor Sensor

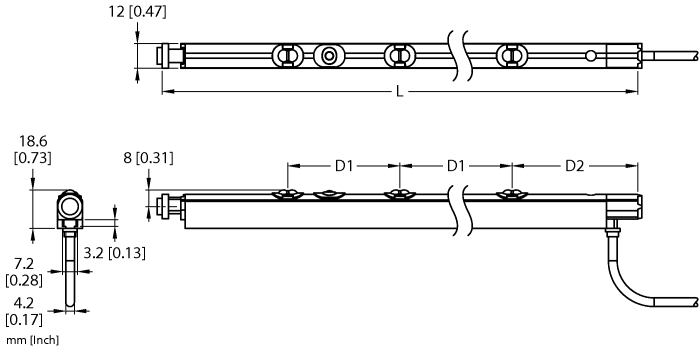

Order number: 3809715- Overall length/frame size "L": 891 mm
- Infrared light beams
- Range: 120 mm
- Beam distance "D1": 108 mm
- Beams centered between frames
- Operating voltage: 18…30 VDC
- Switching output: PNP, light operation
- D-type end cap: 11-mm hexagonal shape, flat end on the top and 8-mm spring
General data
| EAN | 662488079376 |
| Customs tariff number | 85365019000 |
| Country of origin | US |
| Weight | 290 g |
Technical Data
| Function | Proximity switch |
| Operating mode | Diffuse |
| Design | Rectangular |
| Construction size | 891 x 12 x 18.6 mm, TTR |
| Range | 0…120 mm |
| Optical resolution | 108 mm |
| Light type | IR |
| Operating voltage | 18…30 VDC |
| Output function | NO contact, PNP |
| Electrical connection | Cable, Open end |
| Cable length | 2.0 m |
| Housing material | Metal, AL, Black |
| Ambient temperature | -10…+55 °C |
| Protection class | IP50 |
| Approvals | CE, cULus |
