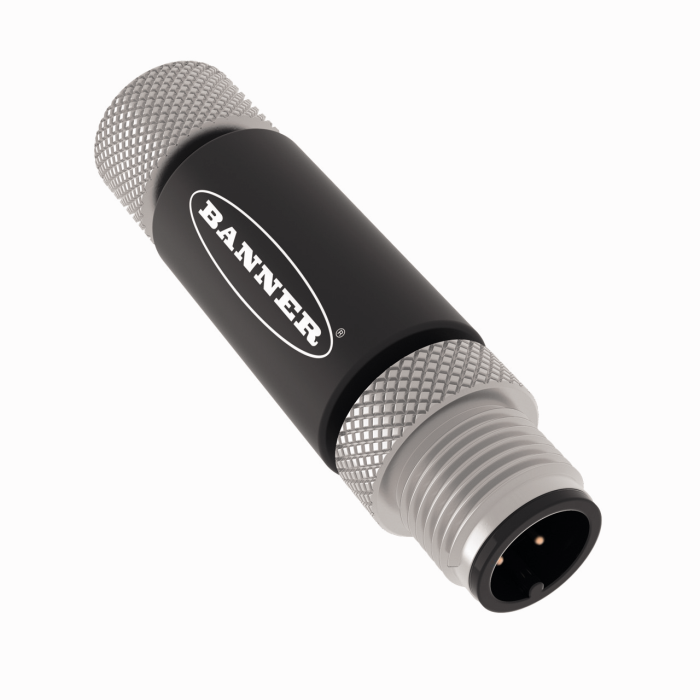

Product  S15CM-PW-IQ

Converter

Analogue Current to PWM Converter

Current to PWM

Order number: 3810468
    • Direct connection to an analog sensor due to compact design
    • Operating voltage: 18…30 VDC
    • Input: current, 4…20 mA
    • Output: PWM, 0…100 %
    • Protection class: IP67
    • Status LEDs for signal strength and signal loss
    • Operating voltage: 12…30 VDC
    • Input: analog, 4…20 mA
    • Output: PWM (Pulse Width Modulation)
    • Converts the current signal into a 0…100 % PWM signal
#

General data

EAN 662488085940
Customs tariff number 85176200000
Country of origin TW
Weight 26.31 g

Technical Data

Construction size 57.8 mm
Housing diameter Ø  15  mm
Housing material Plastic, PVC, Black
Ambient temperature 40…+70 °C
Protection class IP67
