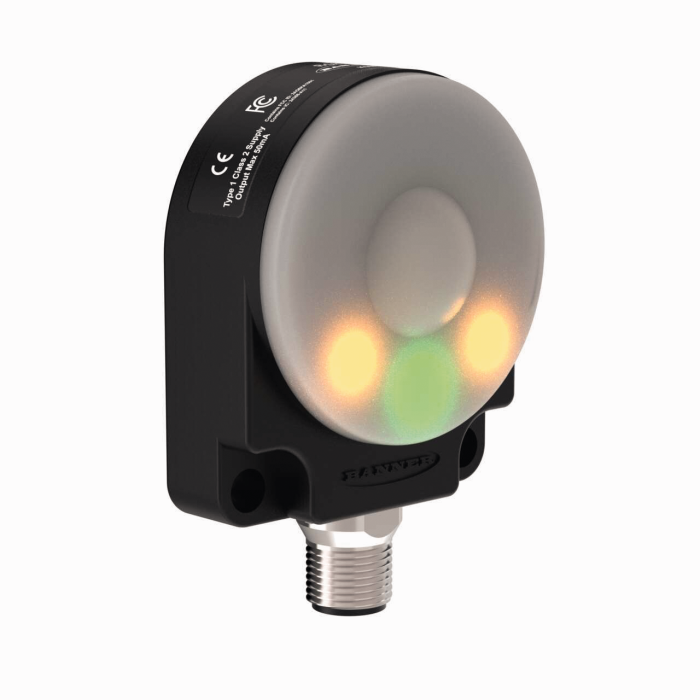

Product K50RF-8060-LDQ
Radar Sensor
With Switching Outputs
Order number: 3812848- Protection class IP67
- M12 × 1 connector, 5-pin
- Pulse Coherent Radar (PCR) for detecting moving and stationary objects
- 60 GHz frequency band
- Max. range 2.5 m
- Configuration via software
- Operating voltage 12…30 VDC
- 2 PNP/NPN switching outputs
General data
| EAN | 662488109646 |
| eCl@ss-Code (V5.1.4): | 27279090 -/- Sensor technology (not classified) |
| Customs tariff number | 85261000900 |
| Country of origin | US |
| Weight | 113.4 g |
Technical Data
| Function | Proximity switch |
| Design | Rectangular |

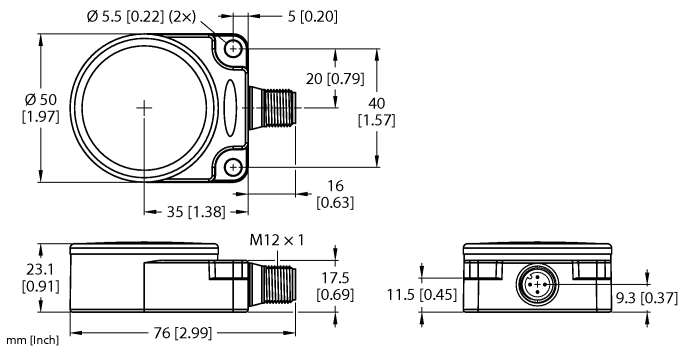

| Construction size | 76 x 50 x 23.1 mm, K50RF |
| Range | 100…2500 mm |
| Frequency range | 60.5 GHz |
| Beam angle | 80° × 60° |
| Operating voltage | 12…30 VDC |
| Switching element function | NO/NC programmable |
| Output function | PNP/NPN |
| Electrical connection | Connector, M12 × 1 |
| Setting option | Remote Teach, Vision Software and Firmware |
| Housing material | Plastic, PC |
| Ambient temperature | -40…+60 °C |
| Protection class | IP67 |
Connectivity accessories
|
RKC4.5T-2/TEL
Connection cable, M12 female connector, straight, 5-pin, cable length: 2 m, jacket material: PVC, black; cULus approval |
6625016 |
|
WKC4.5T-2/TEL
Connection cable, M12 female connector, angled, 5-pin, cable length: 2 m, jacket material: PVC, black; cULus approval |
6625028 |
|
RKS4.5T-2/TEL
Connection cable, M12 female connector, straight, 5-pin, cable length: 2 m, jacket material: PVC, black; shielded; cULus approval |
6626361 |
|
WKS4.5T-2/TEL
Connection cable, M12 female connector, angled, 5-pin, cable length: 2 m, jacket material: PVC, black; shielded; cULus approval |
6626364 |
