Product FCS-68A4-NA/D003
Flow Monitoring
Immersion Sensor without Integrated Processor
Order number: 6872044- Sensor for liquid media
- Calorimetric functionality
- Adjustment via signal processor
- Status indicated via LED chain on signal processor
- Temperature range: +10…+120 °C

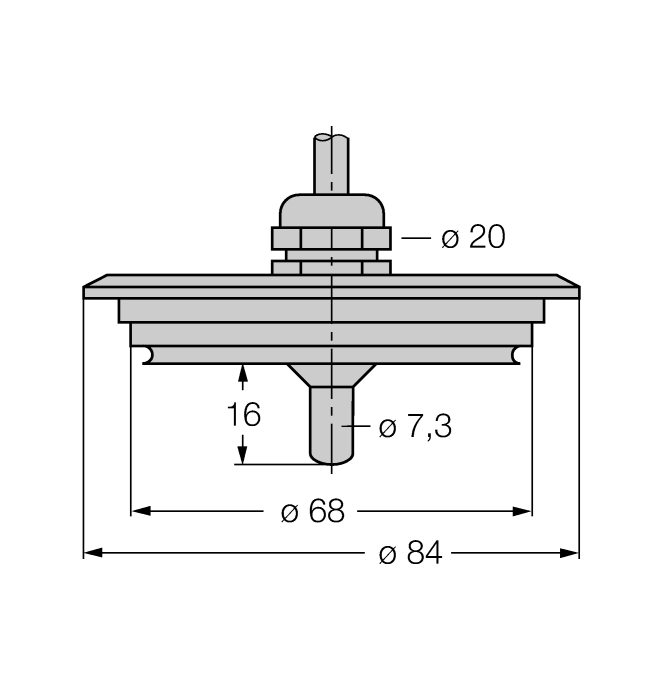

- Mechanical Connection: Varivent
- Cable device
- 4‐wire connection to the processor
General data
| EAN | 4047101176452 |
| eCl@ss-Code (V5.1.4): | 27273190 -/- Flow meter (not classified) |
| Customs tariff number | 90261029000 |
| Country of origin | DE |
| Weight | 804 g |
Technical Data
| Function | Flow monitoring |
| Design | Immersion |
| Process connection | Varivent |
| Medium | liquids |
| Detection type | Calorimetric |
| Electrical connection | Cable |
| Cable length | 2.0 m |
| Sensor material | Stainless steel |
| Housing material | Stainless steel, 1.4571 (AISI 316Ti) |
| Medium temperature | 10…+120 °C |
| Ambient temperature | -20…+80 °C |
| Protection class | IP68 |
Functional accessories
|
FM-IM-3UP63X
Signal processor for non-Ex flow sensors from the FC….-NA… family; operating voltage 20…30 VDC; LED bar for displaying flow speed and medium temperature; IO-Link device with transistor outputs for flow, temperature and errors |
7525100 |
|
|
FM-IM-3UR38X
Signal processor for non-Ex flow sensors from the FC….-NA… family; operating voltage 20…250 VAC; LED bar for displaying flow speed and medium temperature; IO-Link device with transistor outputs for flow, temperature and errors |
7525102 |
|
FM-IM-2UPLI63X
Signal processor for non-Ex flow sensors from the FC….-NA… family; operating voltage 20…30 VDC; LED bar for displaying flow speed and medium temperature; IO-Link device with analog output for flow and transistor outputs for temperature and errors |
7525104 |
