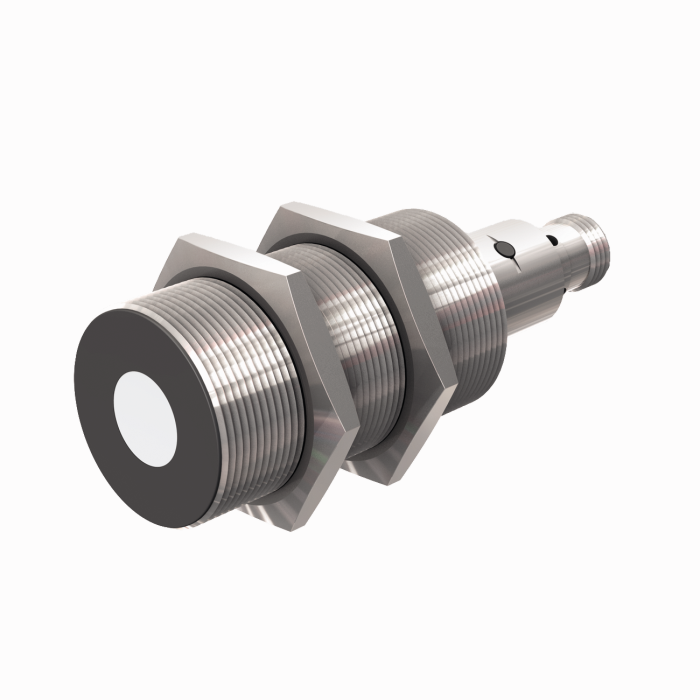

Product  RU300U-M30E-2UP8X2T-H1151

Ultrasonic Sensor

Diffuse Mode Sensor

Order number: 1610040
    • Smooth sonic transducer face

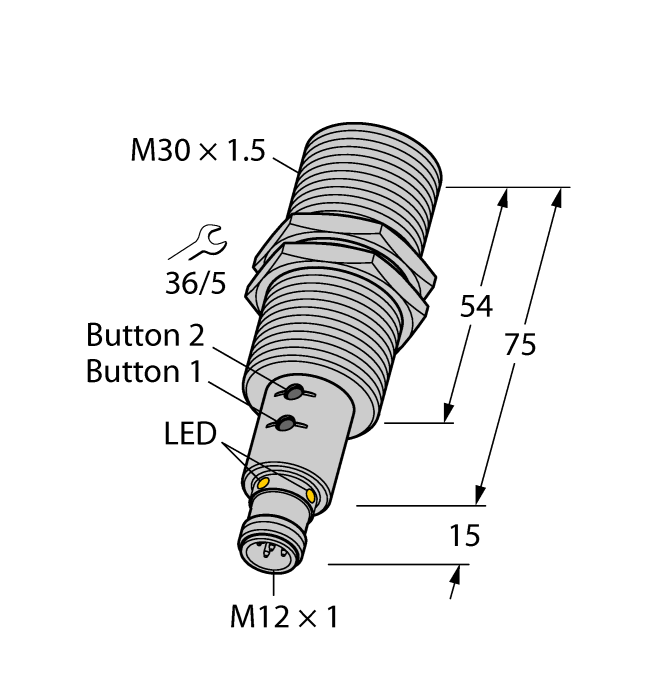

    • Cylindrical housing M30, potted
    • Connection via M12 x 1 male
    • Measuring range adjustable via teach button/Easy-Teach
    • Temperature compensation
    • Blind zone: 30 cm
    • Range: 300 cm
    • Resolution: 1 mm
    • Sonic cone angle: 15°
    • 2 x switching outputs, PNP
    • NO/NC programmable
#

General data

EAN 4047101287431
eCl@ss-Code (V5.1.4): 27272803 -/- Ultrasonic proximity switch
Customs tariff number 85365019900
Country of origin DE
Weight 156 g

Technical Data

Function Ultrasonic diffuse mode sensor
Design Threaded barrel
Construction size M30 x 1.5
Max. range 3000  mm
Electrical design NO/NC, PNP
Electrical connection Connectors
Housing material Metal, CuZn, Nickel-plated
