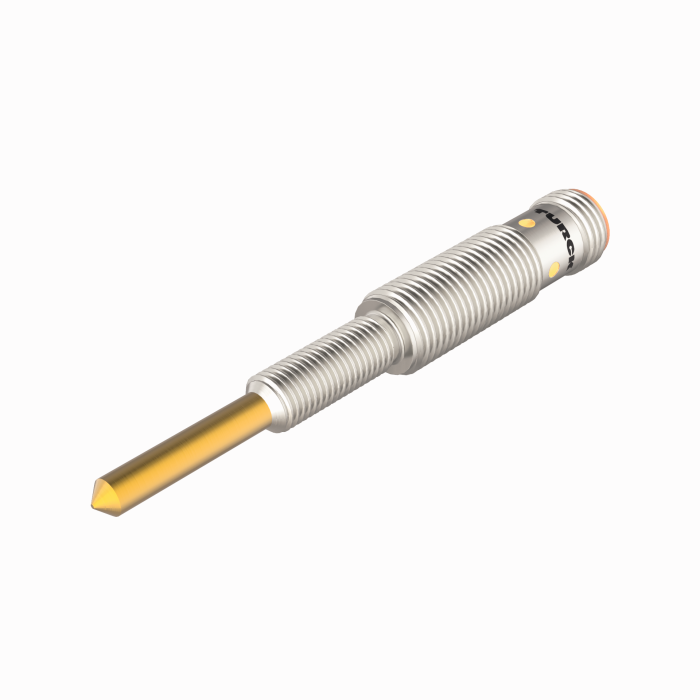

Product  NIMFE-EM12/4.9L88-UP6X-H1141/S1182

Magnetic Field Sensor

For Detection of M6 Weld Nuts

For Detection of Ferromagnetic Parts

Order number: 1600616
    • Threaded barrel, M12 x 1
    • Stainless steel, 1.4301
    • DC 3-wire, 10…30 VDC
    • NC/NO parametrizable with teach adapter VB2‐SP1
    • M12 x 1 male connector

General data

EAN 4047101209785
eCl@ss-Code (V5.1.4): 27270101 -/- Inductive proximity switch
Customs tariff number 85365019900
Country of origin DE
Weight 37 g

Technical Data

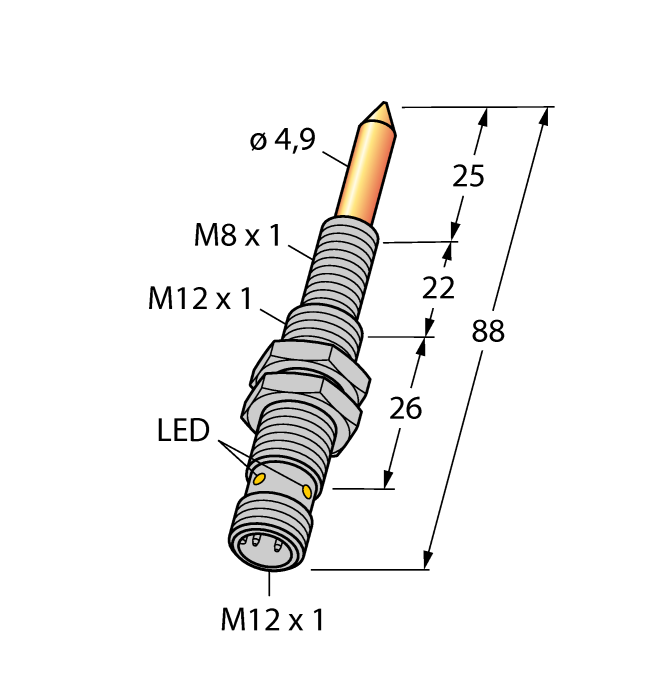

Design Threaded barrel
Construction size M12 x 1
Operating voltage 10…30 VDC
Output function Connection programmable, PNP
Electrical connection Connector, M12 × 1
Housing material Stainless steel, 1.4301 (AISI 304)
Ambient temperature -25…+70 °C
Protection class IP67
Special features Weld nut sensor
