Product  M12FTH4Q

Temperature and Humidity Sensor

With Serial Interface

For Connecting to a DX80 Radio Node

Order number: 3025895

Alternative order number : 25895

    • Rugged metal housing
    • Ambient temperature: -40…+85 °C
    • Protection class IP67
    • Relative humidity: 0…100 %
    • Resolution: 0.1 %
    • Temperature measuring range: -40…+85 °C
    • Resolution: 0.1 °C
    • 1-Wire Serial Interface
    • For connection to DX80 nodes DX80N2X1S-P6 and DX80N2Q45TH
#

General data

EAN 662488258955
eCl@ss-Code (V5.1.4): 27200211 -/- Radiation temperature measurement device
Customs tariff number 85365019900
Country of origin US
Weight 66 g

Technical Data

Function Temperature/humidity sensor

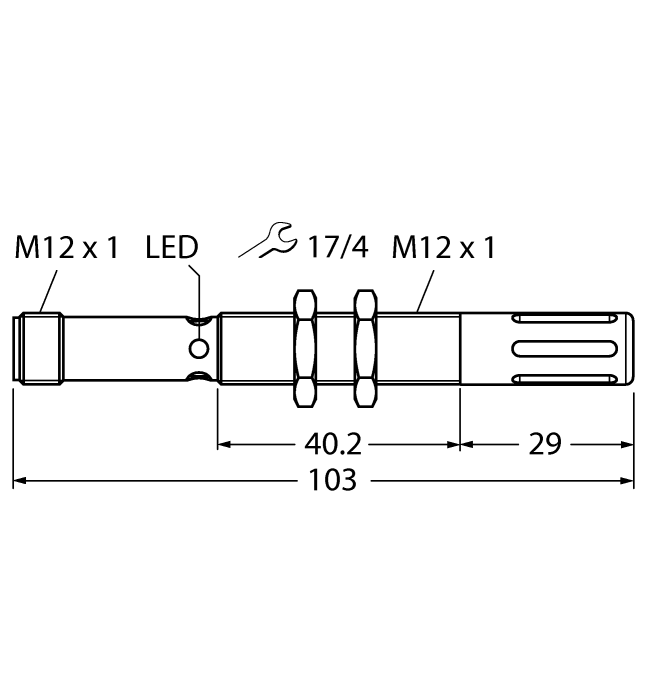

Construction type designation M12FT
Design Tube
Antenna connection No radio participant
Protection class IP67
Communication protocol 1-wire-serial
Electrical connection Connector, M12 × 1
Housing material Metal, Grey
Ambient temperature -40…+85 °C
