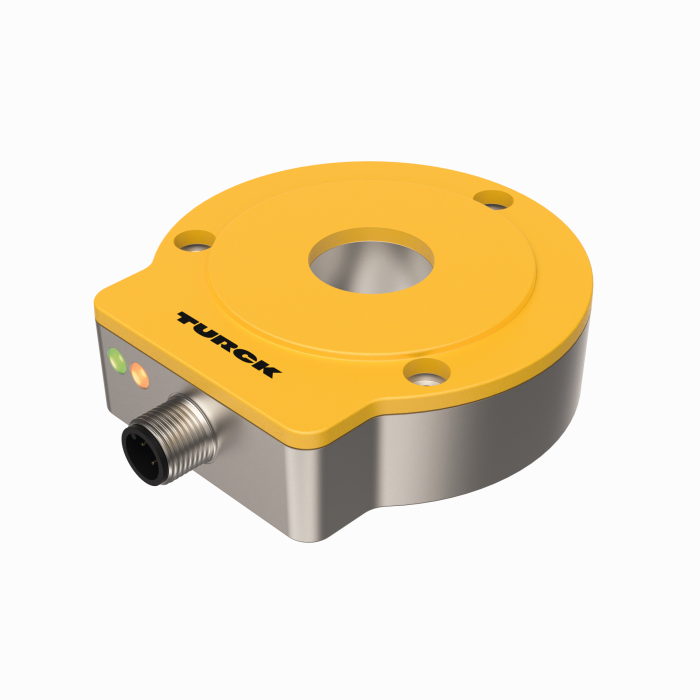

Product  RI360P0-QR24M0-IOLX2-H1141

Contactless Encoder

IO-Link

Premium Line

Order number: 1590975
    • Compact, rugged housing
    • Many mounting possibilities
    • Status displayed via LED
    • Immune to electromagnetic interference
    • 16 bits singleturn
    • Process value in 32 bit IO-Link telegram
    • 3 error bits
    • 16 bits singleturn
    • 13 bits multiturn
    • 15…30 VDC
    • M12 × 1 male connector, 4-pin
#

General data

EAN 4047101376852
eCl@ss-Code (V5.1.4): 27270501 -/- Encoder, absolute
Customs tariff number 90318020000
Country of origin DE
Weight 326 g

Technical Data

Encoder line Premium-Line
Technology Contactless
Output type Absolute semi-multiturn
Shaft Type Hollow shaft
Shaft diameter D [mm] 6  mm6.35  mm9.525  mm10  mm12  mm12.7  mm14  mm15.875  mm19.05  mm20  mm
Construction size 81 x 78 x 24 mm
Flange type Flange without mounting element
Measuring range 0…360°
Communication protocol IO-Link
Electrical connection Connectors, M12 × 1
Housing material Metal/plastic, ZnAlCu1/PBT-GF30-V0
Ambient temperature -25…+85 °C
Protection class IP68 / IP69K
