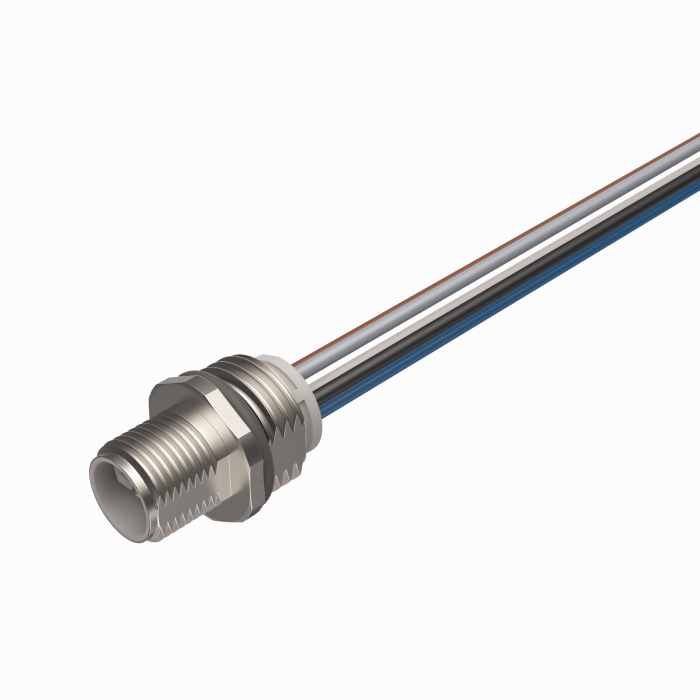

Product FS54PL-1/M16
M12 Power Flange
Front-mounted
Order number: 100003947- M12 male connector, L-coded, 4-pin + FE
- M12-Stecker, L-codiert, 4-polig + FE
General data
| EAN | 4047101490251 |
| Customs tariff number | 85366990990 |
| Country of origin | DE |
| Weight | 134 g |
Technical Data
| Application | Power |
| Connector A | Male, M12 × 1, L-coded |
| Number of pins | 4+FE |
| Flange housing | Brass, CuZn, Nickel-plated |
| Mounting type | front panel mounting |
| Screw-in thread | M16 × 1.5 |
| Flange housing | Brass, CuZn, Nickel-plated |
| Voltage | 63 V |
| Current | 16 A |
| Number of Conductors | 5 |
| Protection class | IP67, IP68 |
| Approvals | cULus recognized |
