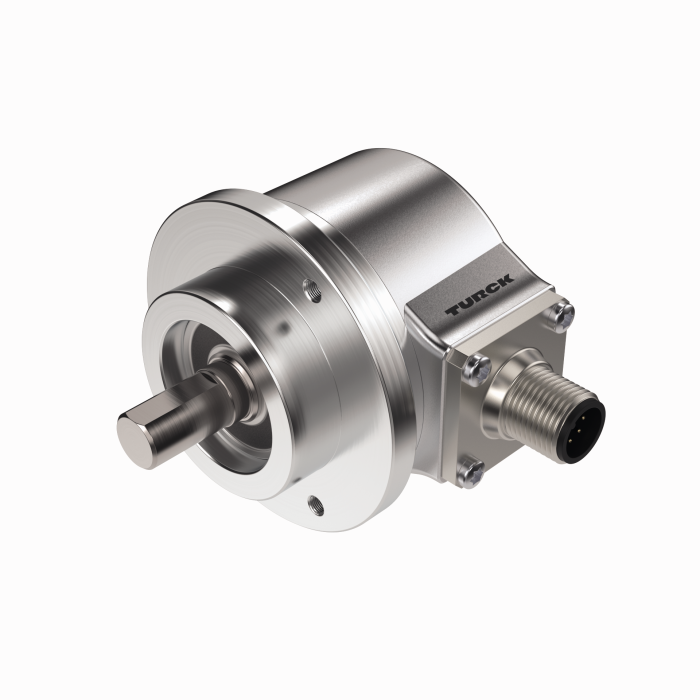

Product REI-E-113T10C-2B512-H1181

Zoom
Zoom

Incremental Encoder

Efficiency Line

Order number: 100011556

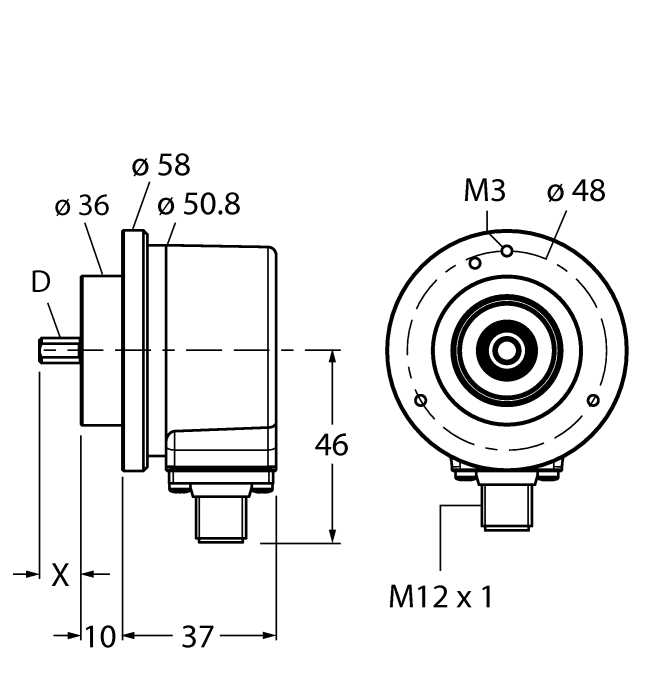

Clamping flange, Ø 58 mm
Solid shaft, Ø 10 mm × 20 mm
Optical measuring principle
Shaft material: stainless steel

Protection class IP64 on housing and shaft side
‐20…+70 °C
Max. 4500 rpm (continuous operation 3000 rpm)

10…30 VDC
Push-pull/HTL invertible
Pulse frequency max. 300 kHz
M12 × 1 male connector, 8-pin

512 pulses per revolution

Hide All Open All

Specifications
Download
Accessories
CAD

General data

EAN	4047101546750
eCl@ss-Code (V5.1.4):	27270502 -/- Encoder, incremental
Customs tariff number	90314990000
Country of origin	IN
Weight	400 g

Technical Data

Encoder line	Efficiency-Line
Technology	Optical
Output type	Incremental
Shaft Type	Solid shaft
Shaft diameter D (mm)	10
Flange diameter	Ø 58 mm
Flange type	Clamping flange
Resolution, incremental	512 ppr
Operating voltage	10…30 VDC
Output function	Push-Pull/HTL, invertable
Electrical connection	Connector, M12 × 1
Housing material	Die-cast zinc
Ambient temperature	-20…+70 °C
Protection class shaft	IP64
Protection class	IP64

Data Sheets

German	1932 KB
English	1932 KB
French	1932 KB
Spanish	1931 KB
Czech	1933 KB
Dutch	1932 KB
Romanian	1933 KB
Russian	1762 KB
Polish	1933 KB
Chinese	1987 KB
Turkish	1932 KB

Approval/Declaration

CE/UK Declaration of Conformity	123 KB

Manual

For incremental rotary encoders	3188 KB

Product Flyer

Encoder portfolio	1077 KB

Mounting accessories

	RA-BC-20-06-10 Bellows coupling with aluminum hub Ø 20 mm; d1 = 6 mm, d2 = 10 mm	100048779
	RA-BC-20-08-10 Bellows coupling with aluminum hub Ø 20 mm; d1 = 8 mm, d2 = 10 mm	100048781
	RA-BC-20-10-10 Bellows coupling with aluminum hub Ø 20 mm; d1 = 10 mm, d2 = 10 mm	100048782
	RA-BC-20-10-12 Bellows coupling with aluminum hub Ø 20 mm; d1 = 10 mm, d2 = 12 mm	100048783

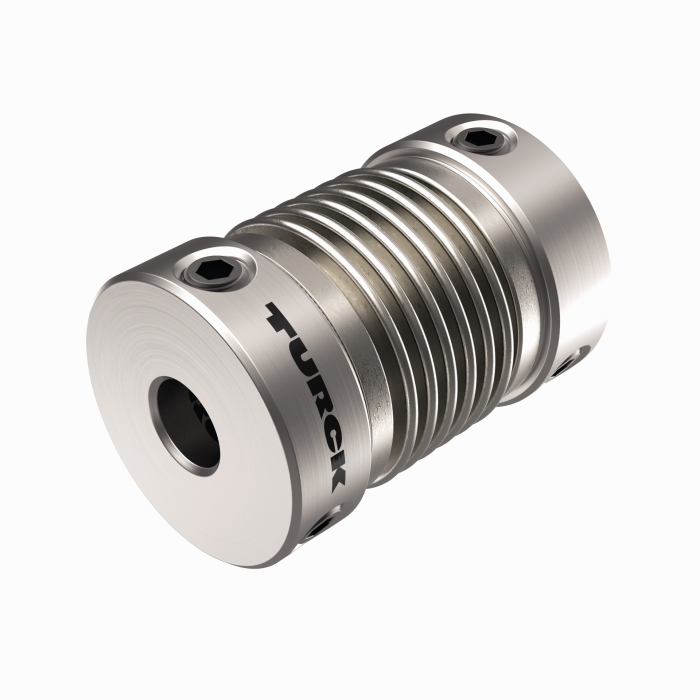

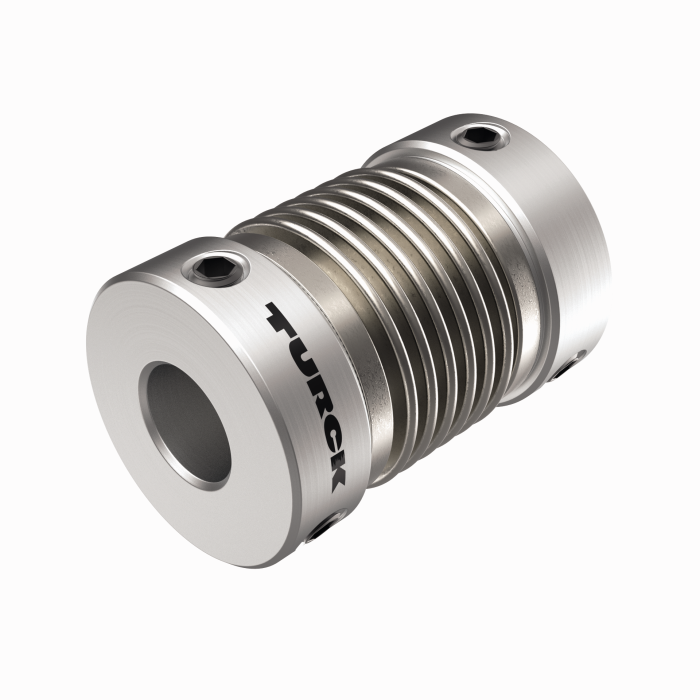

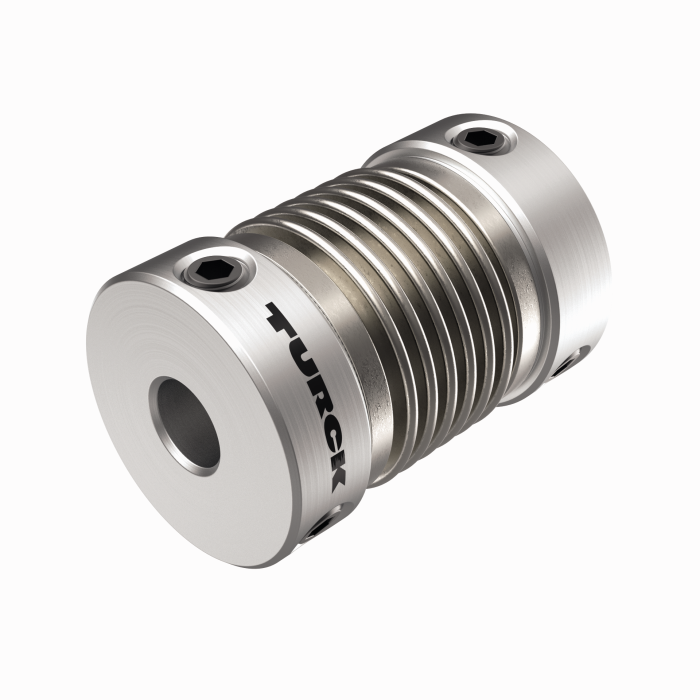

	RA-BC-E-20-06-10 Stainless steel bellows coupling Ø 20 mm; d1 = 6 mm, d2 = 10 mm	100048786

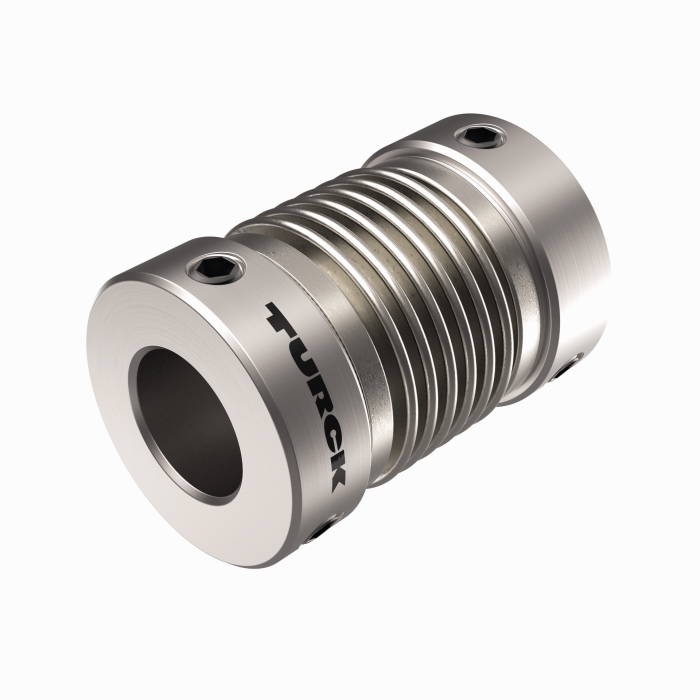

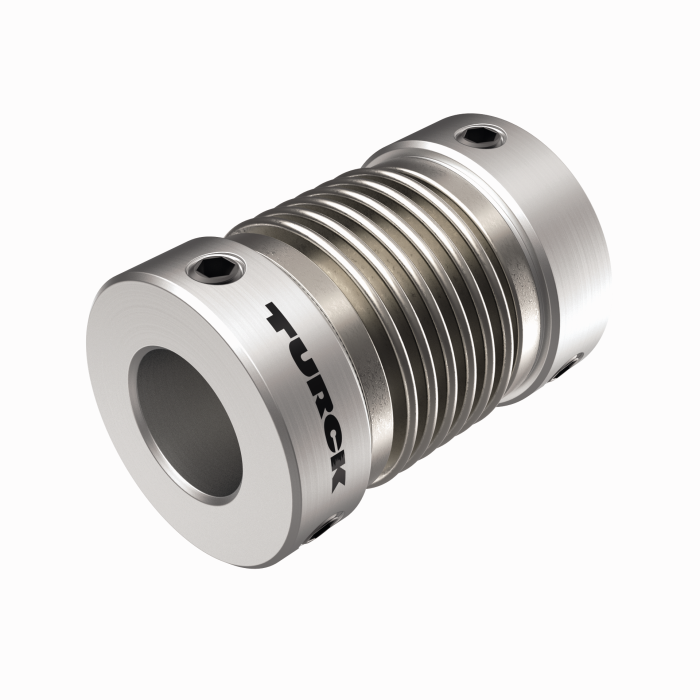

	RA-BC-E-20-10-10 Stainless steel bellows coupling Ø 20 mm; d1 = 10 mm, d2 = 10 mm	100048787
	RA-BC-E-20-10-12 Stainless steel bellows coupling Ø 20 mm; d1 = 10 mm, d2 = 12 mm	100048788

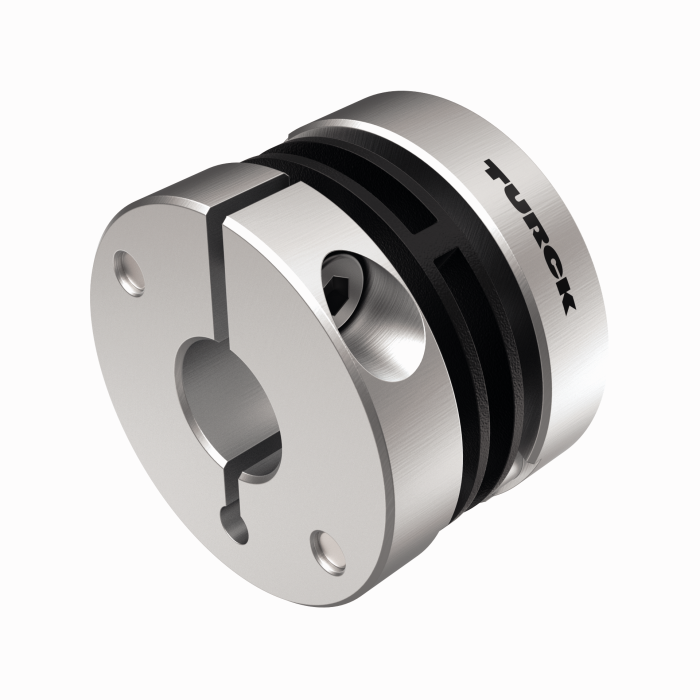

	RA-SDC-30-10-10 Spring disc coupling Ø 30 mm; d1 = 10 mm, d2 = 10 mm	100048792
	RA-SDC-30-10-12 Spring disc coupling Ø 30 mm; d1 = 10 mm, d2 = 12 mm	100048793

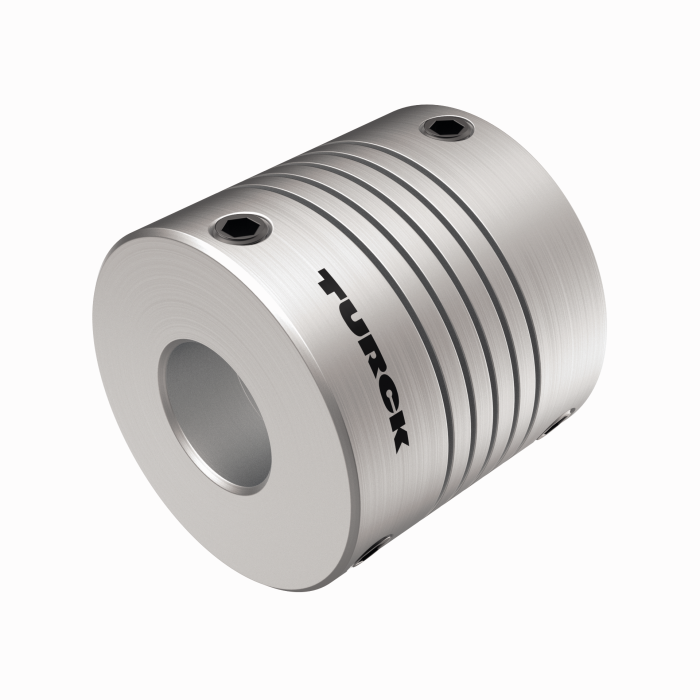

	RA-HC-25-10-10 Aluminum helix coupling Ø 25 mm; d1 = 10 mm, d2 = 10 mm	100048796
	RA-HC-25-10-12 Aluminum helix coupling Ø 25 mm; d1 = 10 mm, d2 = 12 mm	100048797

Connectivity accessories

	RKC8T-2/TXL Connection cable, M12 female connector, straight, 8-pin, cable length: 2 m, jacket material: PUR, black; cULus approval	6625142

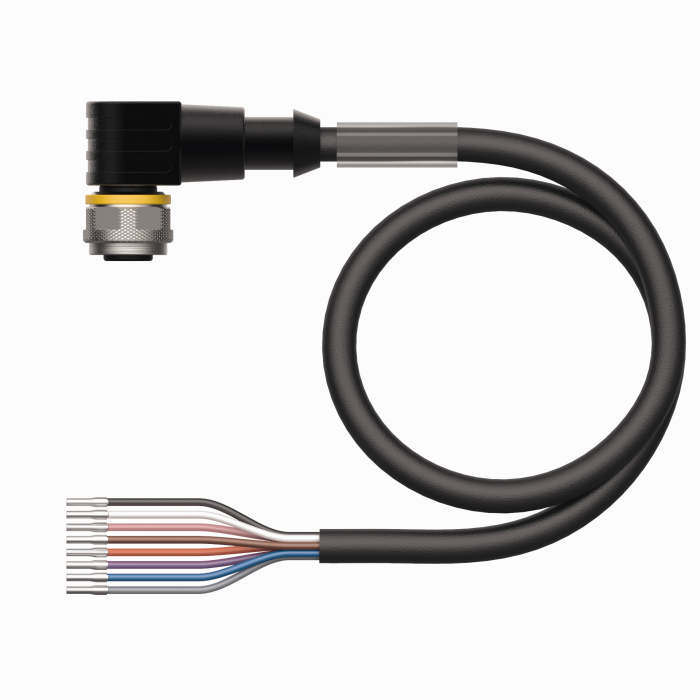

	WKC8T-2/TXL Connection cable, M12 female connector, angled, 8-pin, cable length: 2 m, jacket material: PUR, black; cULus approval	6625145

Functional accessories

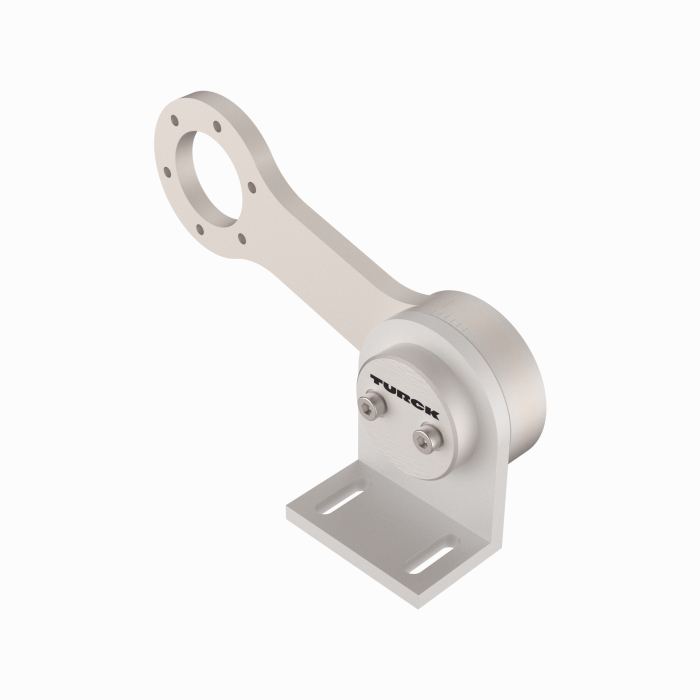

	RA-SAB-15-36 Spring arm for encoders with a 58-mm flange; recommended contact pressure 15 N; maximum contact pressure 30 N	100038251

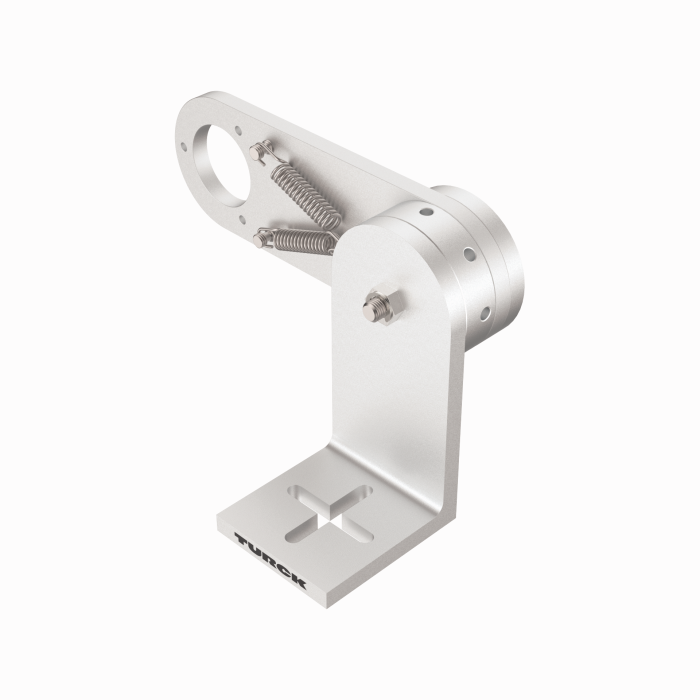

	RA-SAB-30-36 Spring arm for encoders with a 58-mm flange; recommended contact pressure 30 N; maximum contact pressure 40 N	100038294

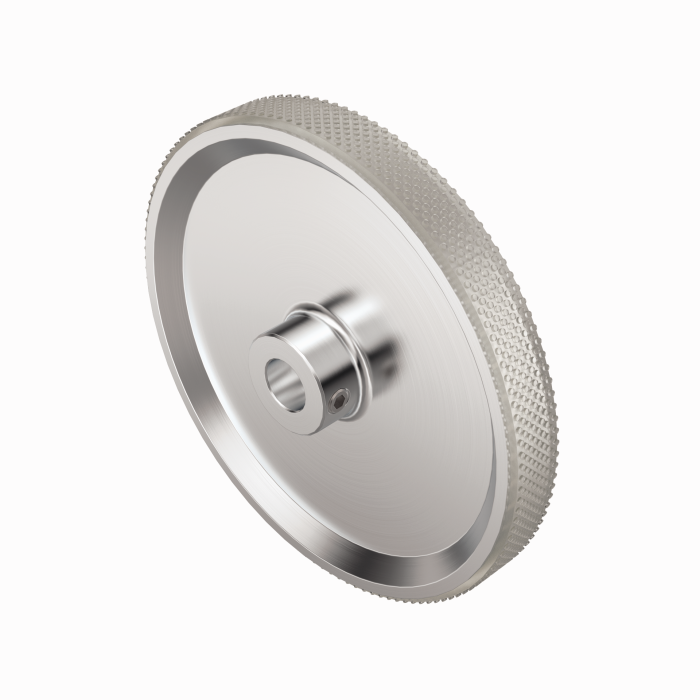

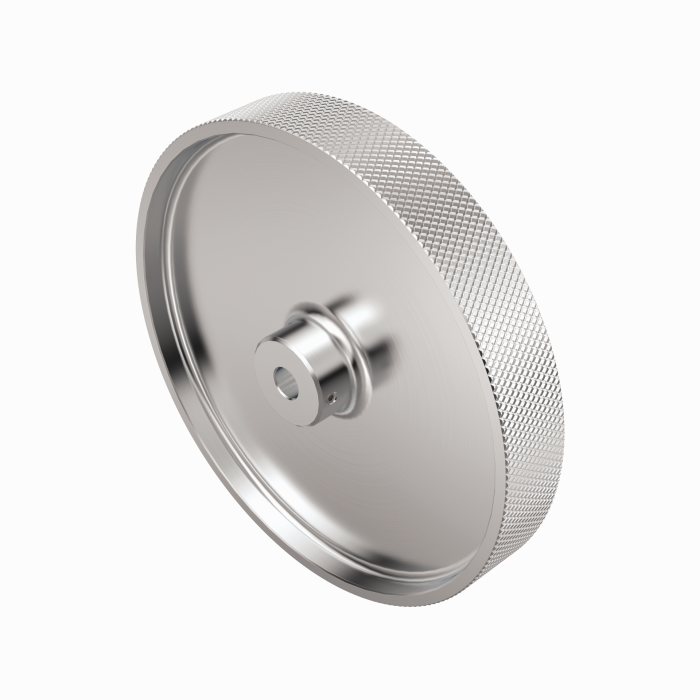

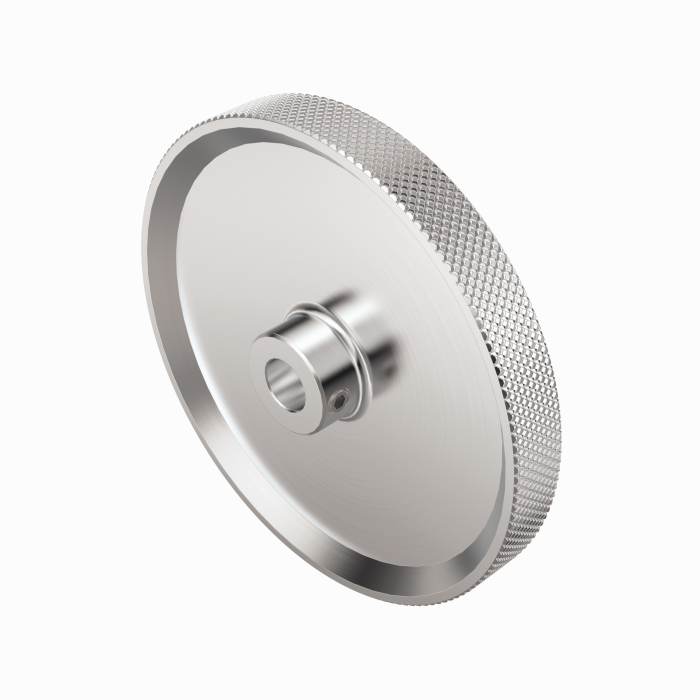

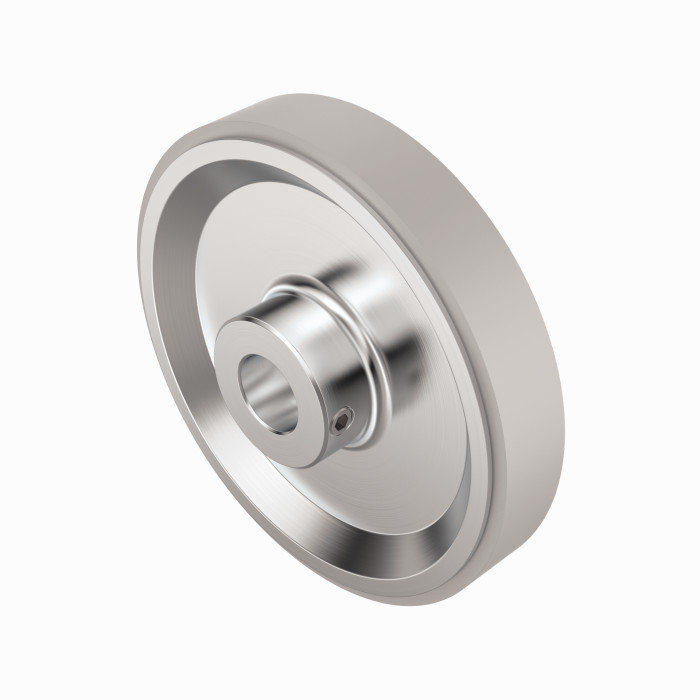

	RA-MW-500-25-DK1-10 Aluminum measuring wheel (cross knurled) for encoders; circumference 0.5 m, width 25 mm, D = 10 mm	100038314

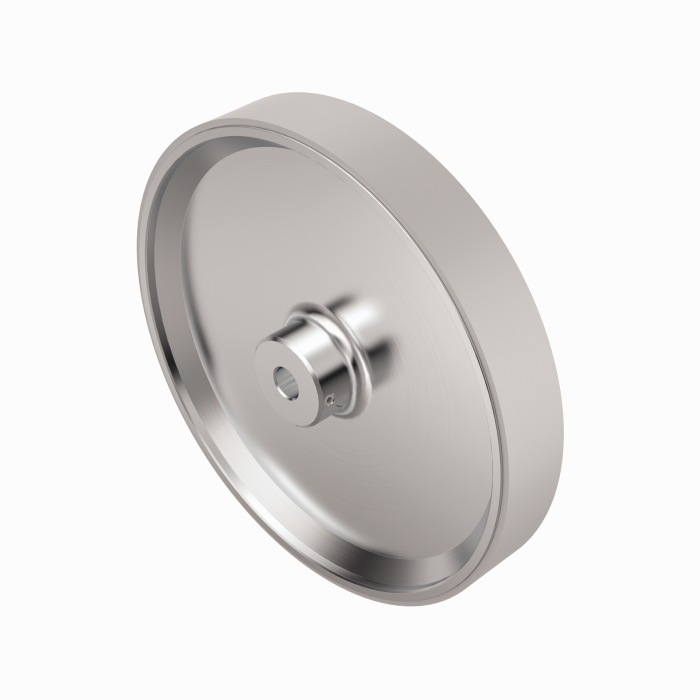

	RA-MW-500-25-PS1-10 Aluminum measuring wheel (smooth PU) for encoders; circumference 0.5 m, width 25 mm, D = 10 mm	100038315

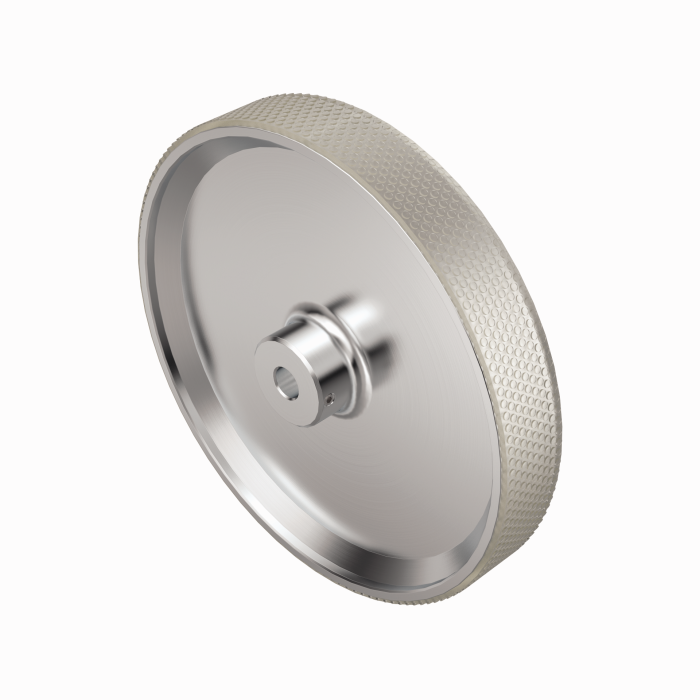

	RA-MW-500-25-RT1-10 Aluminum measuring wheel (studded PU) for encoders; circumference 0.5 m, width 25 mm, D = 10 mm	100038316

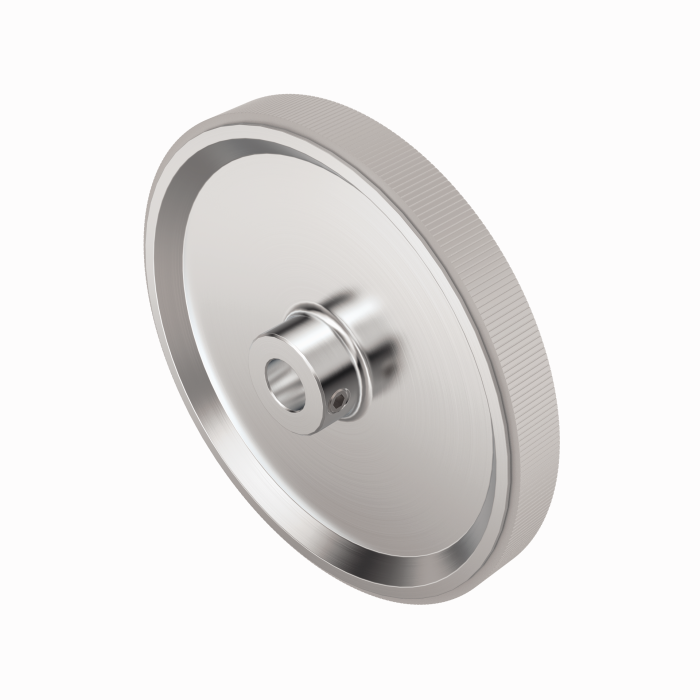

	RA-MW-500-25-PC1-10 Aluminum measuring wheel (grooved PU) for encoders; circumference 0.5 m, width 25 mm, D = 10 mm	100038317

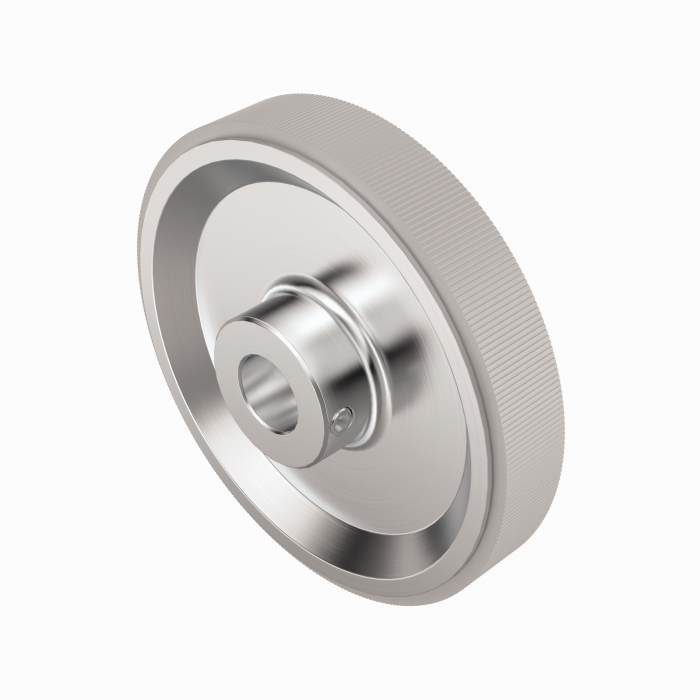

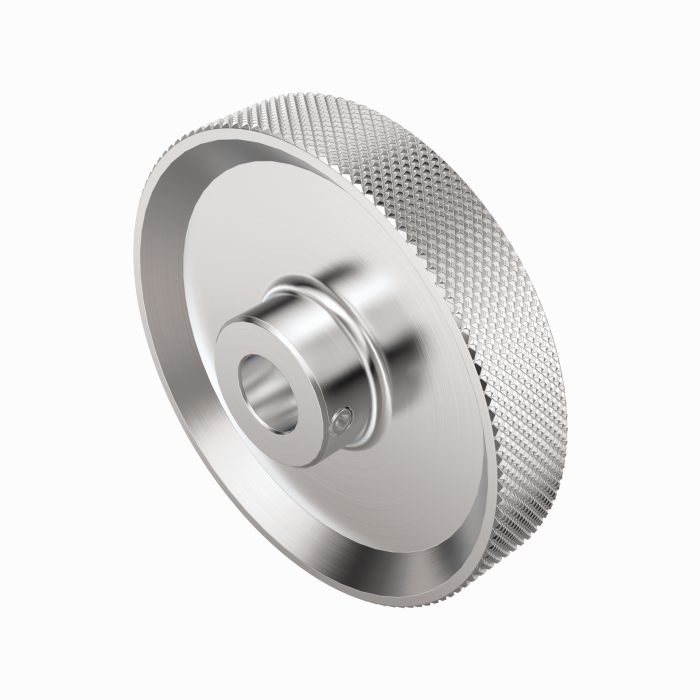

	RA-MW-300-12-DK1-10 Aluminum measuring wheel (cross knurled) for encoders; circumference 0.3 m, width 12 mm, D = 10 mm	100038306
	RA-MW-300-12-PS1-10 Aluminum measuring wheel (smooth PU) for encoders; circumference 0.3 m, width 12 mm, D = 10 mm	100038307
	RA-MW-300-12-RT1-10 Aluminum measuring wheel (studded PU) for encoders; circumference 0.3 m, width 12 mm, D = 10 mm	100038308
	RA-MW-300-12-PC1-10 Aluminum measuring wheel (grooved PU) for encoders; circumference 0.3 m, width 12 mm, D = 10 mm	100038309
	RA-MW-200-12-DK1-10 Aluminum measuring wheel (cross knurled) for encoders; circumference 0.2 m, width 12 mm, D = 10 mm	100038302
	RA-MW-200-12-PS1-10 Aluminum measuring wheel (smooth PU) for encoders; circumference 0.2 m, width 12 mm, D = 10 mm	100038303
	RA-MW-200-12-RT1-10 Aluminum measuring wheel (studded PU) for encoders; circumference 0.2 m, width 12 mm, D = 10 mm	100038304
	RA-MW-200-12-PC1-10 Aluminum measuring wheel (grooved PU) for encoders; circumference 0.2 m, width 12 mm, D = 10 mm	100038305
