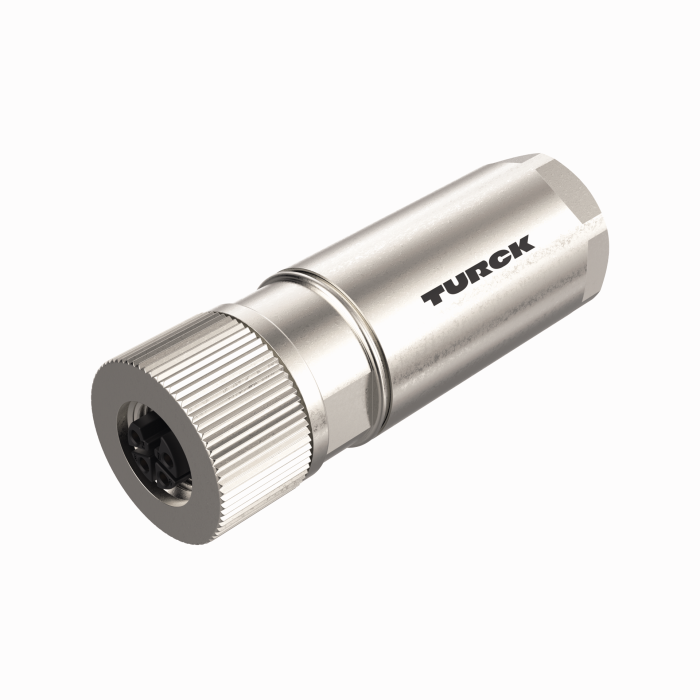

Product FW-ERKSM0414-PL-P-0611
Field-Wireable Connector
M12 Power

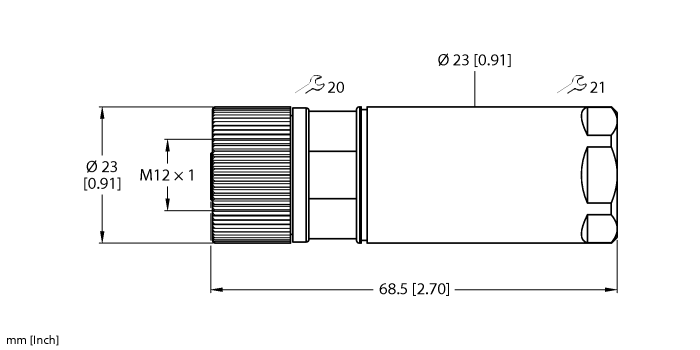

Female Connector M12 × 1, Straight
Order number: 100045547- L-coding
- Metal coupling nut
- Push-in connection
- 4-pin
- Cable feedthrough: 6.0…11.0 mm
- Shieldable
- Terminal capacity:
- Max. 1.5 mm² or 16 AWG (without cable end sleeve)
- Max. 2.5 mm² or 14 AWG (without cable end sleeve)
General data
| EAN | 4047101626414 |
| eCl@ss-Code (V5.1.4): | 27279201 -/- Connectivity (accessories sensors) |
| Customs tariff number | 85366990990 |
| Country of origin | DE |
| Weight | 74 g |
Technical Data
| Application | Power |
| Connector A | Female, M12 × 1, Straight, L-coded |
| Number of pins | 4 |
| Connection mode | Push-in connection |
| Housing material | Brass, Nickel-plated |
| Coupling nut/screw material | Brass, CuZn-Ni, Nickel-plated |
| External diameter of the cable | 6…11 mm |
| Core cross-section/Clamping ability | 0.75…2.5 mm² |
| Current | 16 A |
