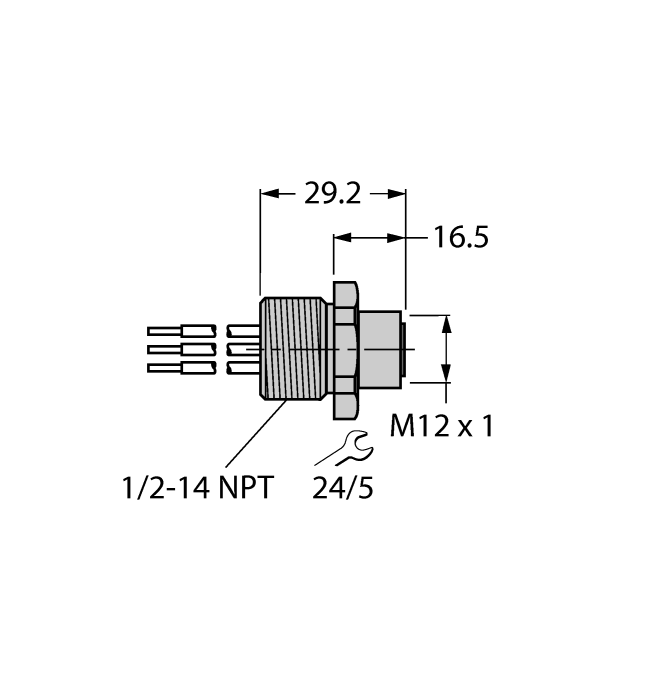

Product FKV48-0.3M/14.5/C1117
PROFIBUS-PA Receptacle
Flange
Order number: 6611025- Type: M12 female
- 1/2’’14 NPT screw-in thread
- Stainless steel receptacle housing
- 4-pin, braid length 0.3 m
- For use in PROFIBUS-PA applications
General data
| EAN | 4047101042689 |
| eCl@ss-Code (V5.1.4): | 27250314 -/- Connection technology |
| Customs tariff number | 85444290900 |
| Country of origin | US |
| Weight | 23 g |
Technical Data
| Application | Data |
| Connector A | Female, M12 × 1, Straight, A-coded |
| Number of Pins | 4 |
| Flange housing | Stainless Steel, 1.4401 (AISI 316) |
| Mounting type | front panel mounting |
| Screw-in thread | 1/2″-14 NPT |
| Flange housing | Stainless Steel, 1.4401 (AISI 316) |
| Network protocol | PROFIBUS-PA |
| Voltage | 250 V |
| Current | 4 A |
| Cable length | 0.30 m |
| Number of Conductors | 4 |
| Protection class | IP68 |
