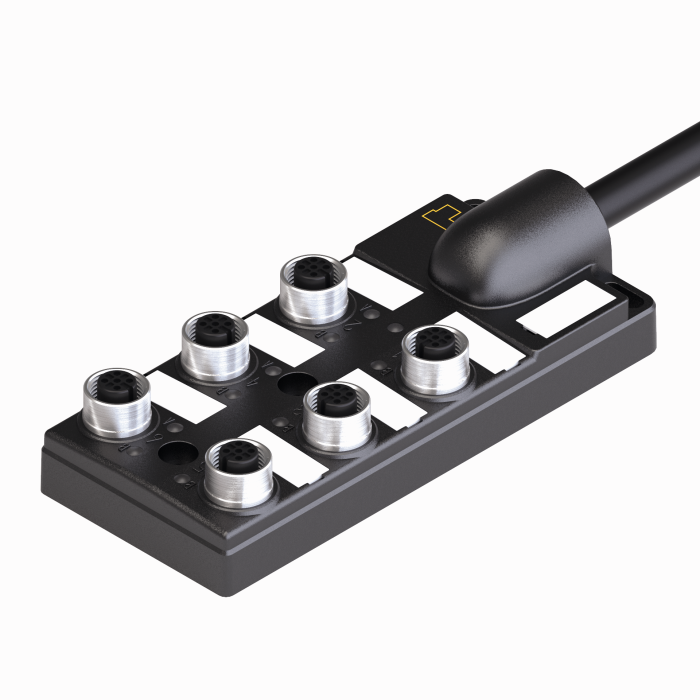

Product TB-6M12-5-10/TXL
Passive actuator/sensor junction box, M12 x 1
6-port, with integral homerun cable
Order number: 6611929- Housing material: Nylon
- Housing color: black
- Protection class IP67
- RoHS-compliant
- CE compliant
- I/O port (number of pins): 4-pin + PE
General data
| EAN | 4047101275902 |
| eCl@ss-Code (V5.1.4): | 27250316 -/- Passive sensor/actuator junction |
| Customs tariff number | 85444290900 |
| Country of origin | US |
| Weight | 1524.07 g |
Technical Data
| Application | Signal |
| Number of Ports | 6 |
| I/O port | M12 × 1 |
| Number of pins | 4+PE |
| Group terminal | Cable |
| Cable length | 10.0 m |
| Housing material | Plastic, PA |
| Voltage | 30 V |
| Ampacity | 2 A per signal contact, total current 9 A |
| Approvals | cULus |
