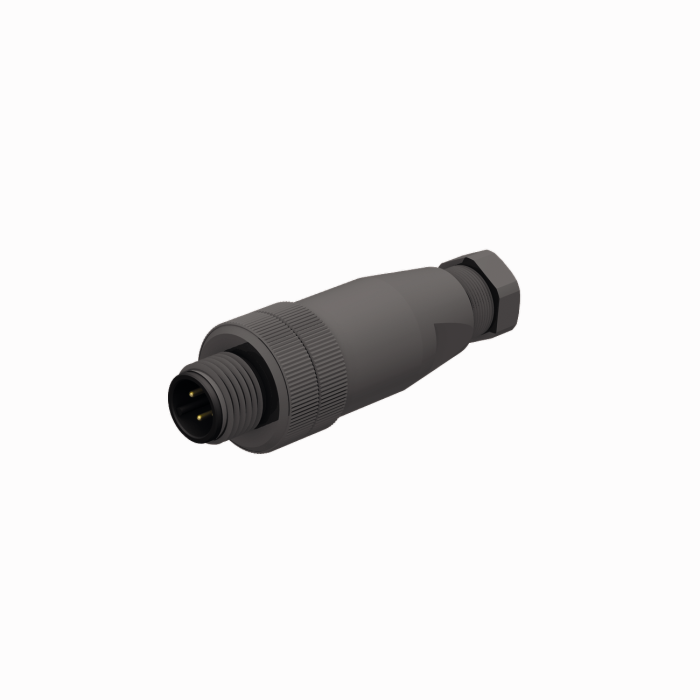

Product BS8151-0/9
Field-Wireable Connector

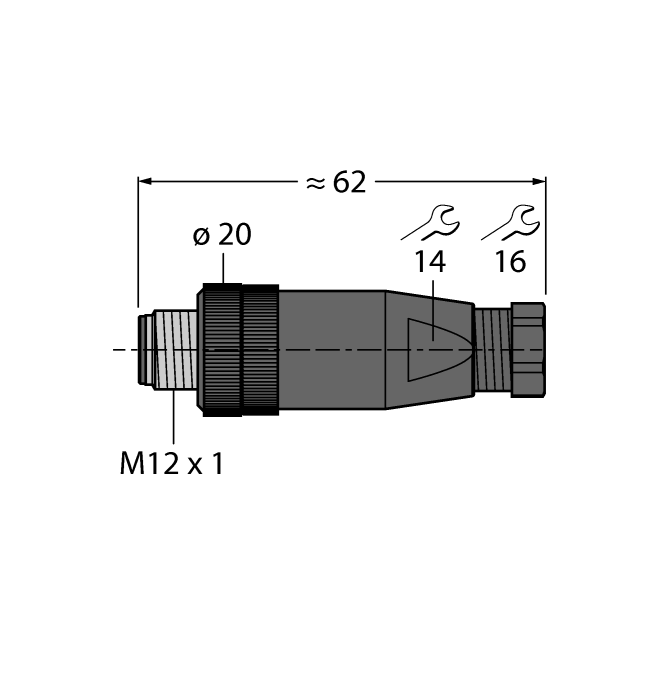

Male Connector M12 × 1, Straight
Order number: 6904613- For use in DeviceNet™/CANopen applications as well as for power supply
- A-coding
- Screw-clamp terminal
- 5-pin
- PG9 screw-in thread
- Cable feedthrough 6.0…8.0 mm
General data
| EAN | 4047101458459 |
| eCl@ss-Code (V5.1.4): | 27279201 -/- Connectivity (accessories sensors) |
| Customs tariff number | 85366990990 |
| Country of origin | DE |
| Weight | 20 g |
Technical Data
| Network protocol | DeviceNet, CANopen |
| Device type | Field-wireable connector |
| Approvals | UL |
