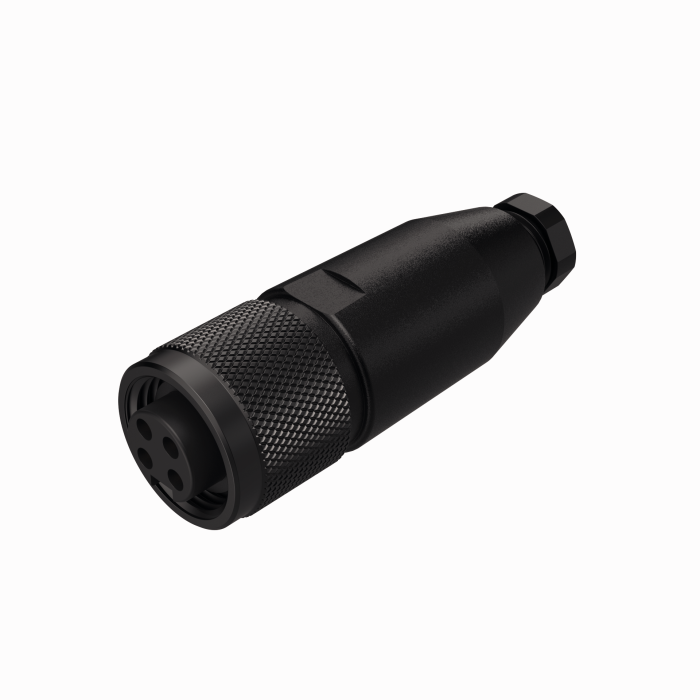

Product FW-MRKPM0416-P-S-0608
Field-Wireable Connector
7/8″ Power
7/8″ Female, Straight
Order number: 6914504- Screw terminal connection
- 4-pin
- PG9 screw-in thread
- Cable feedthrough 6.0…8.0 mm
General data
| EAN | 4047101496925 |
| eCl@ss-Code (V5.1.4): | 27279201 -/- Connectivity (accessories sensors) |
| Customs tariff number | 85366990990 |
| Country of origin | CZ |
| Weight | 46 g |
Technical Data
| Application | Signal, Power |
| Connector A | Female, 7/8″-16 UN, Straight |
| Number of pins | 4 |
| Connection mode | Screw/clamp connection |
| Screw-in thread | PG9 |
| Housing material | Plastic, PA |
| Coupling nut/screw material | Aluminum, Al, Anodized |
| External diameter of the cable | 6…8 mm |
| Core cross-section/Clamping ability | 0.34…1.5 mm² |
| Voltage | 250 V |
| Current | 9 A |
