Product PFKS4-0.2

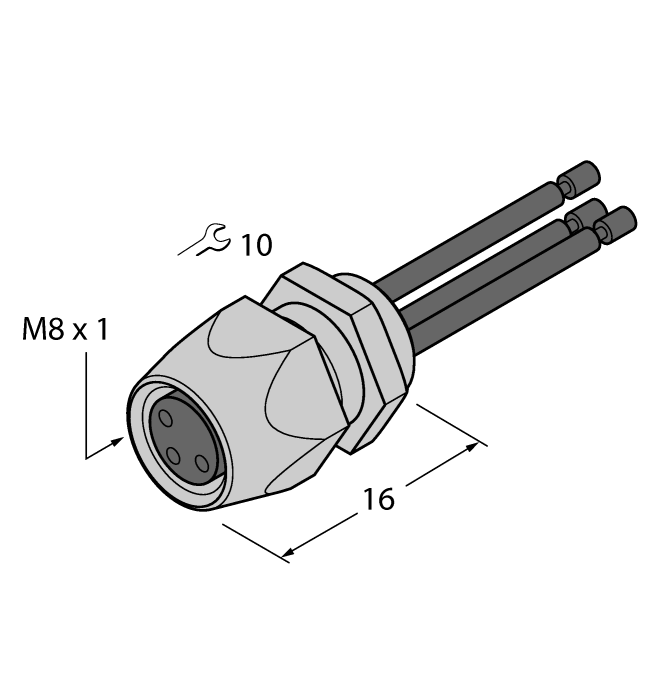

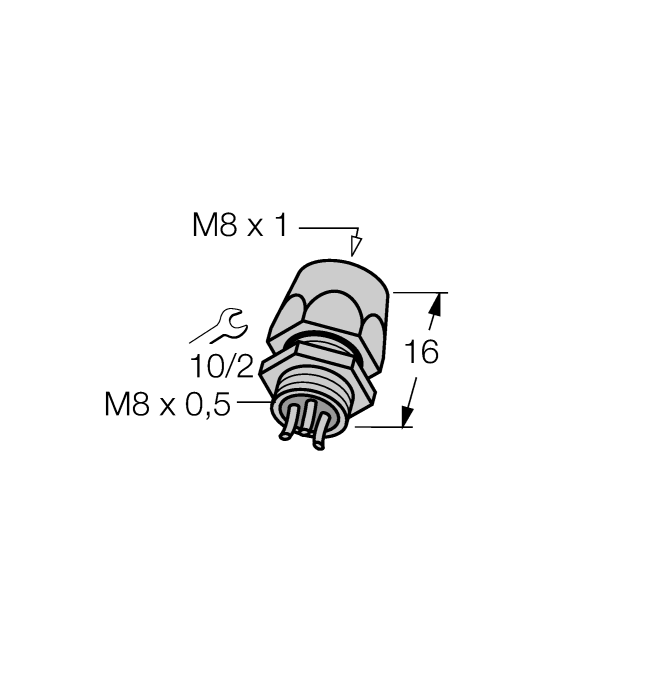

Female Flange with Stranded Wires, Front-mounted
Female Flange with Stranded Wires, Front-mounted
Order number: 6934786- robust and pre-assembled round connector
- Degree of protection IP67
- with 0.2 m litz wire
- also available with other litz wire lengths
- Stranded wire length: 0.2 m
General data
| EAN | 4047101371512 |
| eCl@ss-Code (V5.1.4): | 27250107 -/- Connection cable sensor-actuator |
| Customs tariff number | 85366990990 |
| Country of origin | DE |
| Weight | 11 g |
Technical Data
| Application | Signal |
| Design | Connection Cable |
| Connector A | Female, M8 × 1, Straight |
| Number of pins | 4 |
| Flange housing | Brass, CuZn, Nickel-plated |
| Mounting type | front panel mounting |
| Screw-in thread | M8 × 0.5 |
| Flange housing | Brass, CuZn, Nickel-plated |
| Voltage | 30 V |
| Current | 4 A |
| Cable length | 0.2 m |
| Number of Conductors | 4 |
| Protection class | IP67 |
| Approvals | CE |
