Product CBC5 572-2M
Bus Cable for CAN (DeviceNet, CANopen)
PVC Cable Jacket, Thin
Order number: U0151- Jacket material: PVC
- Power pair: AWG 2/22
- Data pair: AWG 2/22
- Jacket color: gray
- UL approval

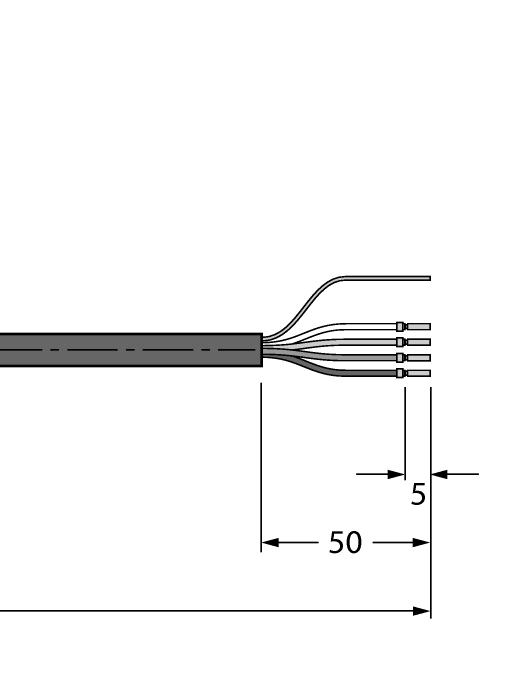

- End open
- Open connector
- Cable length: 2.0 m
General data
| EAN | 4047101042023 |
| eCl@ss-Code (V5.1.4): | 27060307 -/- Bus cable |
| Customs tariff number | 85444290900 |
| Country of origin | MX |
| Weight | 146 g |
Technical Data
| Application | Data |
| Design | Connection Cable |

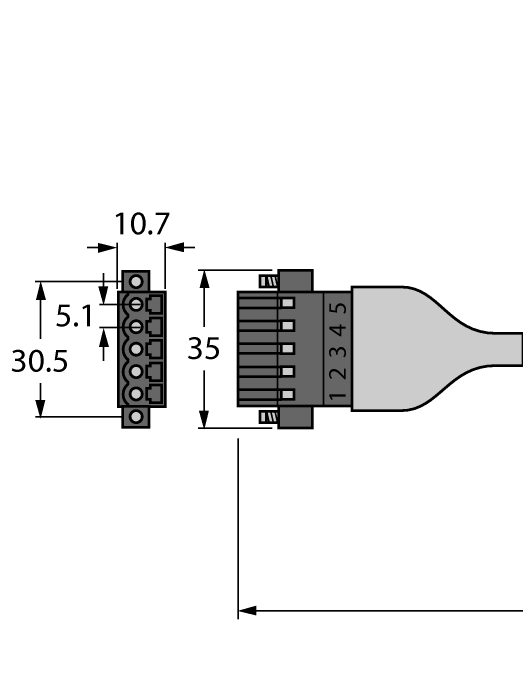

| Connector A | Female, CBC5, Straight |
| Number of pins | 5 |
| Network protocol | DeviceNet, CANopen |
| Voltage | 250 V |
| Current | 12 A |
| Cable diameter | Ø 7.2 mm |

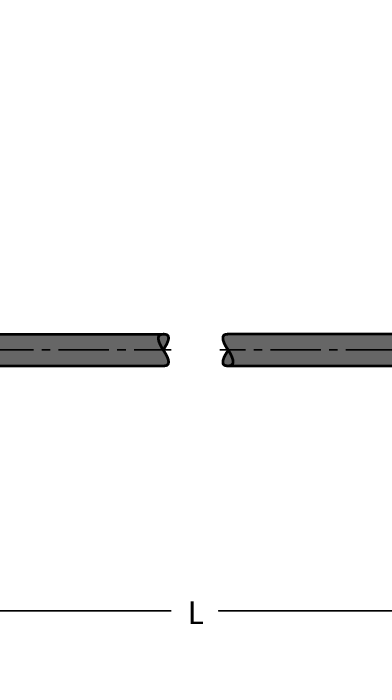

| Cable length | 2.0 m |
| Cable jacket | PVC, Gray |
| Number of Conductors | 2 |
| Protection class | IP20 |
| Special features | Shielded |
| Approvals | UL, CSA |
