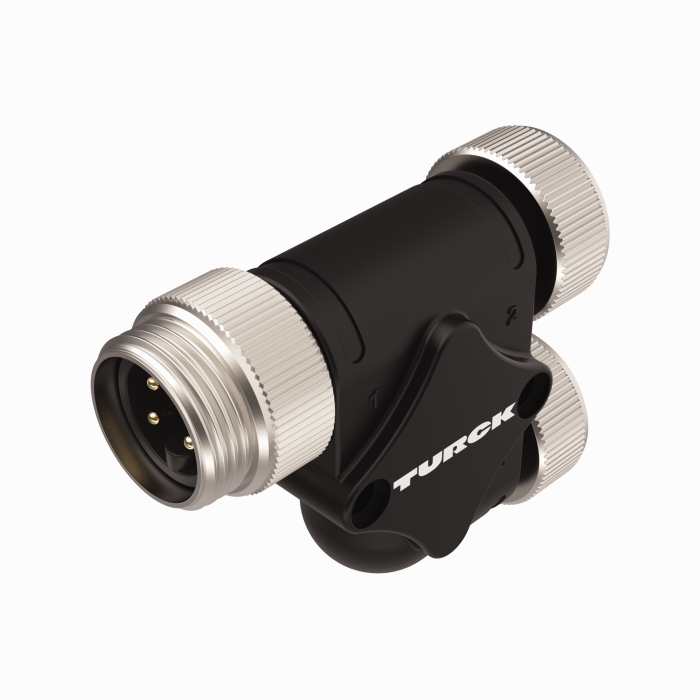

Product XSH-RSM-2RKM 40
2-Way Splitter
h-Splitter
4-Wire
Order number: U2-23666- 7/8" connector
- Male – 2 x female, 4-pin
- Wired in parallel
- cULus listed
- RoHS-compliant
- Protection class: NEMA 1, 3, 4, 6P and IEC IP67

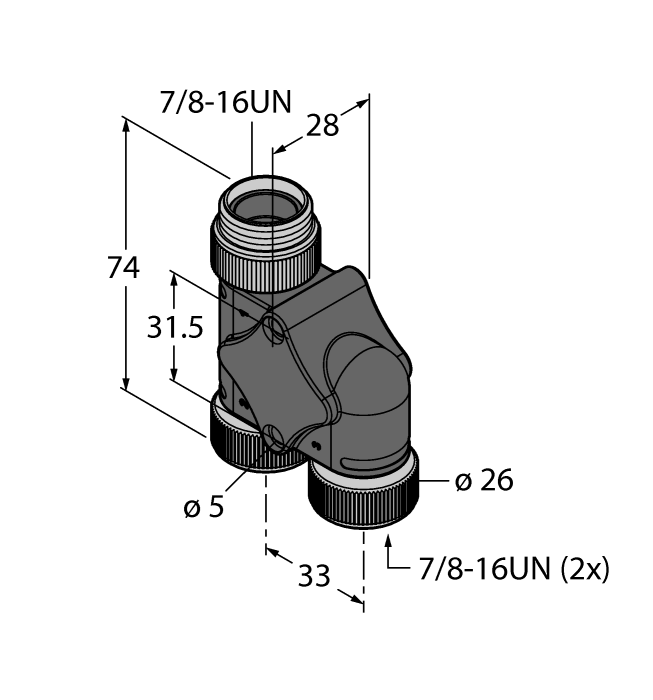

- 7/8″ male connector, straight, 4-pin
- 2 × 7/8″ female connector, straight, 4-pin
General data
| EAN | 4047101383591 |
| eCl@ss-Code (V5.1.4): | 27250316 -/- Passive sensor/actuator junction |
| Customs tariff number | 85366990990 |
| Country of origin | MX |
| Weight | 144 g |
Technical Data
| Application | Signal |
| Design | Small h-Splitter |
| Connector A | Male, 7/8″-16 UN |
| Number of pins | 4 |
| Coupling nut/screw | Brass, CuZn, Nickel-plated |
| Connector B | Female, 7/8″-16 UN |
| Number of Pins | 4 |
| Coupling nut/retaining screw | Brass, CuZn, Nickel-plated |
| Voltage | 600 V |
| Current | 9 A |
| Protection class | IP67 |
| Approvals | RoHS, UL Listed, CE |
