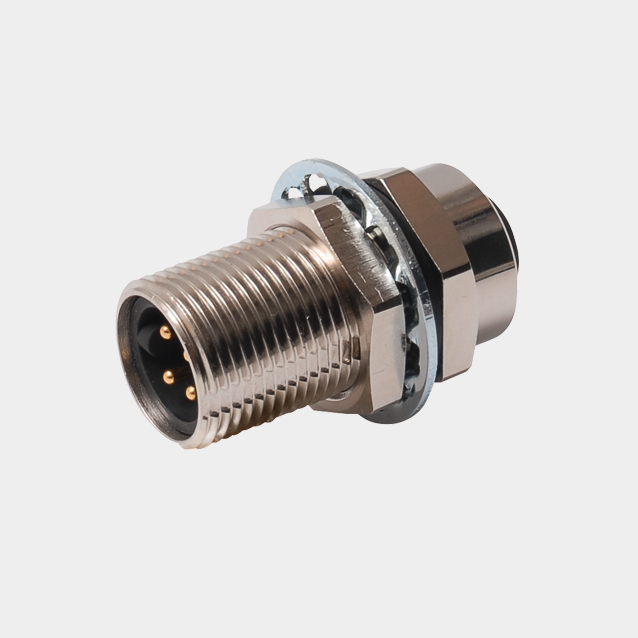

Product RSF RKF 57/22
DeviceNet™ Receptacle
Wall Feedthrough
Order number: U2309-6- Male 7/8" minifast receptacle
- Female 7/8" minifast receptacle
- Design: 7/8" adapter
- 5-pin feedthrough male/female
- For use in CAN (DeviceNet, CANopen) applications
- Ampacity: 9 A
- Rated voltage: 600 V
- Temperature range: -40 °C…+105 °C
- Protection class: NEMA 1, 3, 4 and IEC IP67
General data
| EAN | 4047101021790 |
| eCl@ss-Code (V5.1.4): | 27250391 -/- Decentralized periphery (parts) [AKP191002] |
| Customs tariff number | 85366990990 |
| Country of origin | MX |
| Weight | 99.79 g |
Technical Data
| Accessory type | Adapter |
| Device type | Wall feedthrough |
| Network protocol | DeviceNet |
| Connector A | Male, 7/8″-16 UN, Straight |
| Connector B | Female, 7/8″-16 UN |
General data
| EAN | 4047101021790 |
| eCl@ss-Code (V5.1.4): | 27250391 -/- Decentralized periphery (parts) [AKP191002] |
| Customs tariff number | 85366990990 |
| Country of origin | MX |
| Weight | 99.79 g |
Technical Data
| Application | Data |
| Design | Extension Cable |
| Connector A | Male, 7/8″-16 UN, Straight |
| Number of pins | 5 |
| Connector body | Metal, CuZn, nickel-plated |
| Flange housing | Brass, CuZn, Nickel-plated |
| Mounting type | front panel mounting |
| Screw-in thread | 7/8″-16 UN |
| Connector B | Female, 7/8″-16 UN |
| Number of Pins | 5 |
| Flange housing | Brass, CuZn, Nickel-plated |
| Mounting type | rear-mounted |
| Screw-in Thread | 7/8″-16 UN |
| Network protocol | DeviceNet |
| Voltage | 600 V |
| Current | 9 A |
