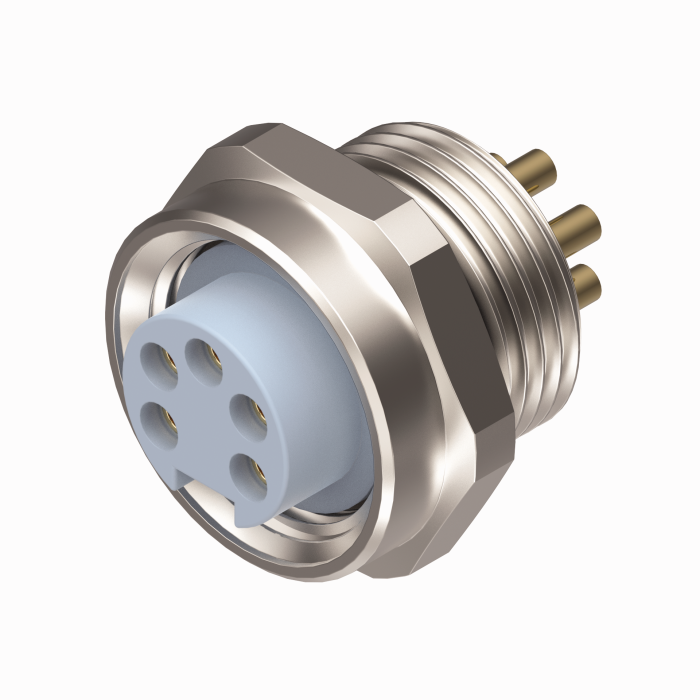

Product RKF 57
DeviceNet, 7/8″ Female Receptacle
Front-Mounted

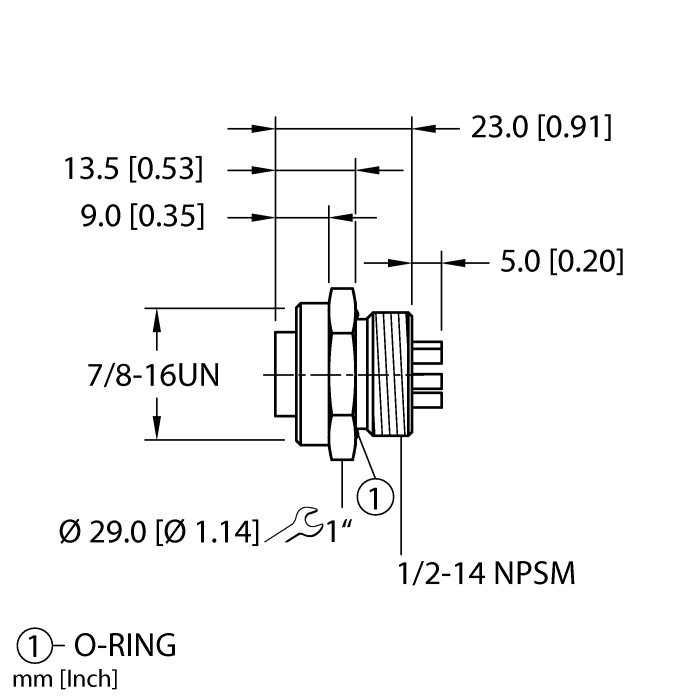

Order number: U5514-1- 7/8″, female receptacle, 5-pin
- Screw-in thread: 1/2″-14 NPSM
General data
| EAN | 4047101021783 |
| Customs tariff number | 85366990990 |
| Country of origin | DE |
| Weight | 38.555 g |
Technical Data
| Application | Data |
| Connector A | Female, 7/8″-16 UN |
| Number of pins | 5 |
| Flange housing | Brass, CuZn, Nickel-plated |
| Mounting type | front panel mounting |
| Screw-in thread | 1/2″-14 NPSM |
| Flange housing | Brass, CuZn, Nickel-plated |
| Network protocol | DeviceNet, CANopen |
| Voltage | 300 V |
| Current | 9 A |
| Protection class | IP67, IP68, IP69, IP69K |
| Approvals | UL 2238, CSA C22.2 No. 182.3, CE, RoHS |
