Product  BI15-CP40-Y1X

Inductive Sensor

Order number: 10110
    • Rectangular, height 40 mm
    • Variable orientation of active face in 9 directions
    • Plastic, PBT-GF30-VO
    • High-luminance corner LEDs
    • Optimum view of operating voltage and switching state from any position
    • DC 2-wire, nom. 8.2 VDC
    • Output acc. to DIN EN 60947-5-6 (NAMUR)
    • Terminal chamber
#

General data

EAN 4047101061987
eCl@ss-Code (V5.1.4): 27270101 -/- Inductive proximity switch
Customs tariff number 85365019900
Country of origin DE
Weight 227 g

Technical Data

Design Rectangular

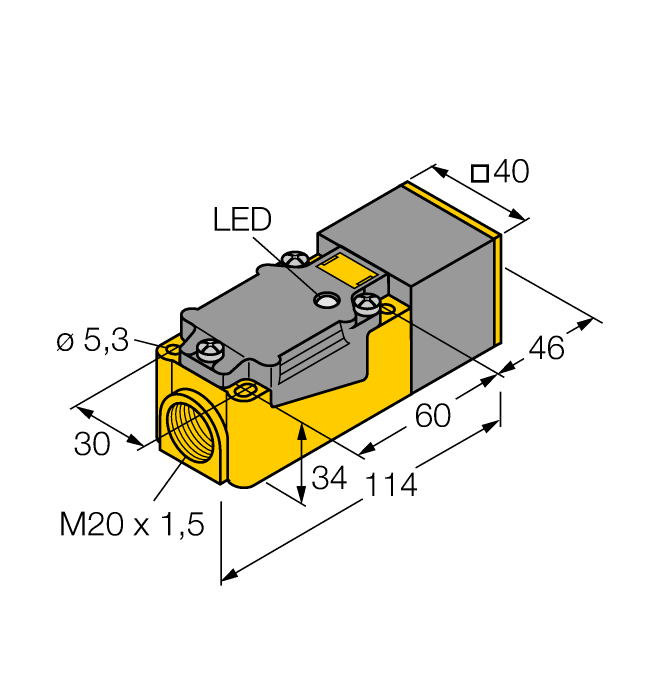

Construction size 114 x 40 x 40 mm, CP40
Rated switching distance 15 mm
Mounting conditions Flush
Output function NAMUR
Electrical connection Terminal chamber
Housing material Plastic, PBT-GF30-V0, Black
Ambient temperature -25…+70 °C
Protection class IP67
Approvals ATEX II 2G, ATEX II 3G, ATEX II 1D, ATEX II 2D, ATEX II 3D, SIL2, PLc
