Product  BI15U-EM30WD-AP6X-H1141/3GD

Inductive sensor

For the food industry

Order number: 1634855

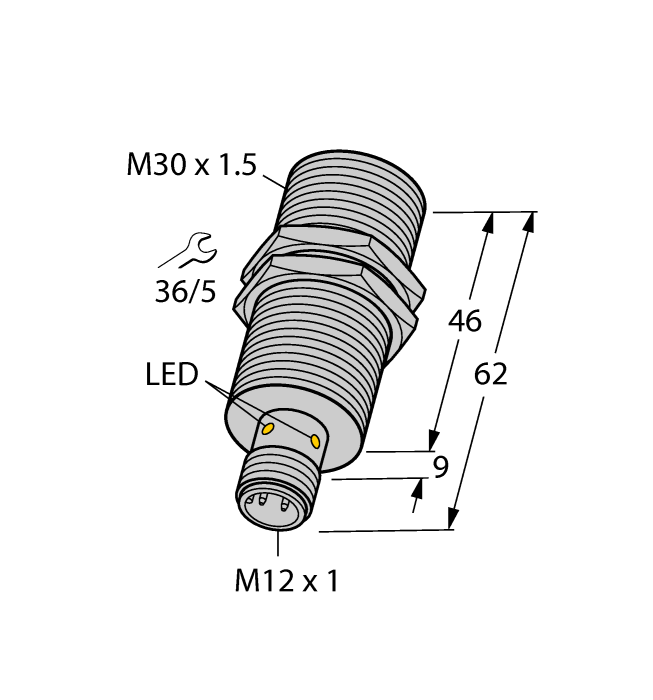

    • Threaded barrel, M30 x 1.5
    • Stainless steel, 1.4404
    • Front cap made of liquid crystal polymer
    • Factor 1 for all metals
    • Resistant to magnetic fields
    • Temperatures -40 °C … +100 °C
    • High protection class IP69K, for harsh environments
    • Special double-lip seal
    • Protection against all common acid and alkaline cleaning agents
    • Laser engraved label, permanently legible
    • DC 3-wire, 10…30 VDC
    • NO contact, PNP output
    • M12 x 1 male connector
#

General data

EAN 4047101129182
eCl@ss-Code (V5.1.4): 27270101 -/- Inductive proximity switch
Customs tariff number 85365019900
Country of origin DE
Weight 107 g

Technical Data

Design Threaded barrel
Construction size M30 x 1.5
Rated switching distance 15 mm
Mounting conditions Flush
Operating voltage 10…30 VDC
Output function NO contact, PNP
Electrical connection Connectors, M12 × 1
Housing material Stainless steel, V4A (1.4404)
Ambient temperature -40…+100 °C
Protection class IP68 / IP69K
Approvals ATEX II 3G, ATEX II 3D
Special features uprox®+, Wash down, Factor 1, Sn +, Resistant to magnetic fields, Pressure resistant
