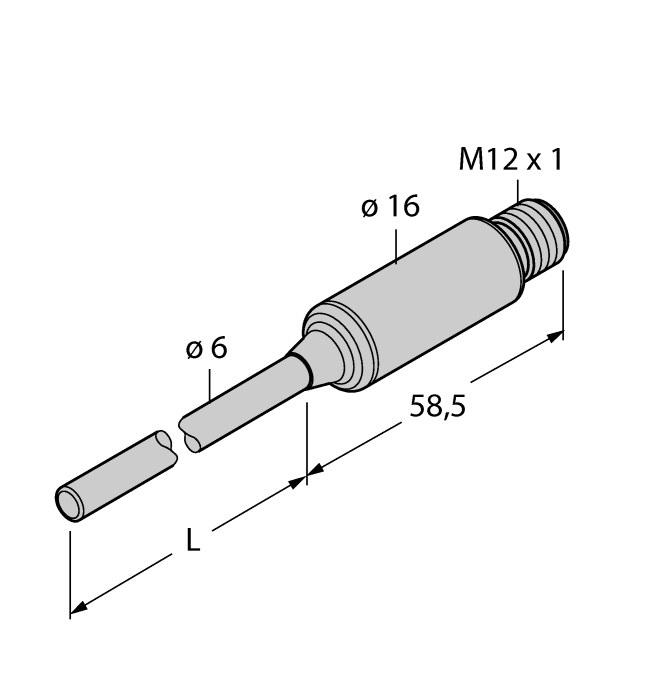

Product TTS260-000/075-00-LIUPN-H1140
Temperature Sensor with Integrated Transmitter in Stainless Steel Housing
Order number: 100051325- Jacket resistance thermometer
- Factory setting 0…150 °C
- IO-Link, Smart Sensor Profile
- Analog output 4…20 mA
- Switching output
- Multicolor LED
- Outer diameter: 6 mm
- Immersion depth: 100 mm
- Process connection: compression fitting
- Bendable probe (min. bending radius: 3 × outer diameter; excluding 30-mm probe tip)
General data
| EAN | 4047101684995 |
| eCl@ss-Code (V5.1.4): | 27200206 -/- Transducer (temperature) |
| Customs tariff number | 90259000900 |
| Country of origin | IT |
| Weight | 90 g |
Technical Data
| Detection type | medium contact |
| Design | Without display (integrated probe) |
| Measuring range | -70…500 °C |
| Immersion depth L | 100 mm |
| Process connection | For compression fittings, thermowell or direct mounting |
| Operating voltage | 18…32 VDC |
| Electrical output | Current output (2-wire), Switching output |
| Current output | 4…20 mA |
| Communication protocol | IO-Link |
| Measuring element | Pt100 |
| Electrical connection | Connector, M12 × 1 |
| Housing material | Stainless steel, 1.4404 (AISI 316L) |
| Ambient temperature | -40…+85 °C |
| Protection class | IP67 |
| Approvals | CE, cULus |
Mounting accessories
|

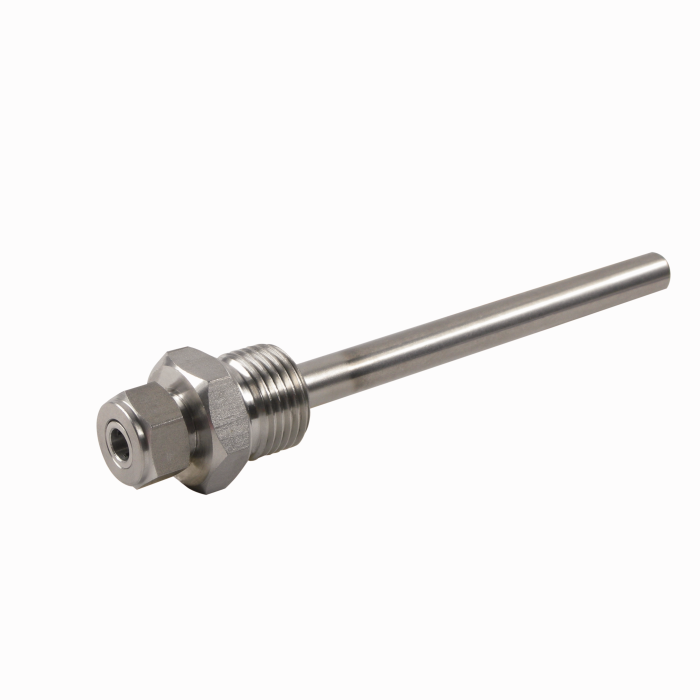

THW-6-G1/2-A4-L100
Protective tube for mounting temperature sensors; sensor diameter 6 mm; process connection G1/2” external thread; immersion depth 100 mm |
9910460 |
|

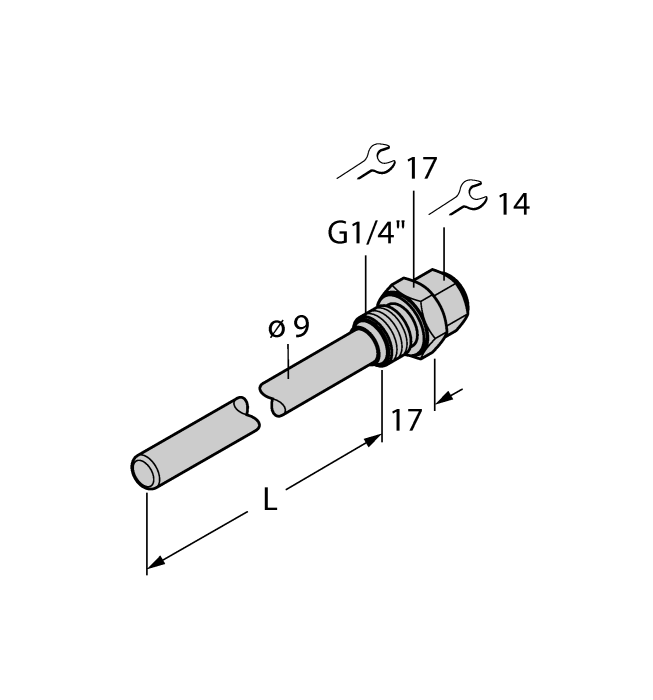

THW-6-G1/4-A4-L100
Protective tube for mounting temperature sensors; sensor diameter 6 mm; process connection G1/4” external thread; immersion depth 100 mm |
9910762 |
|

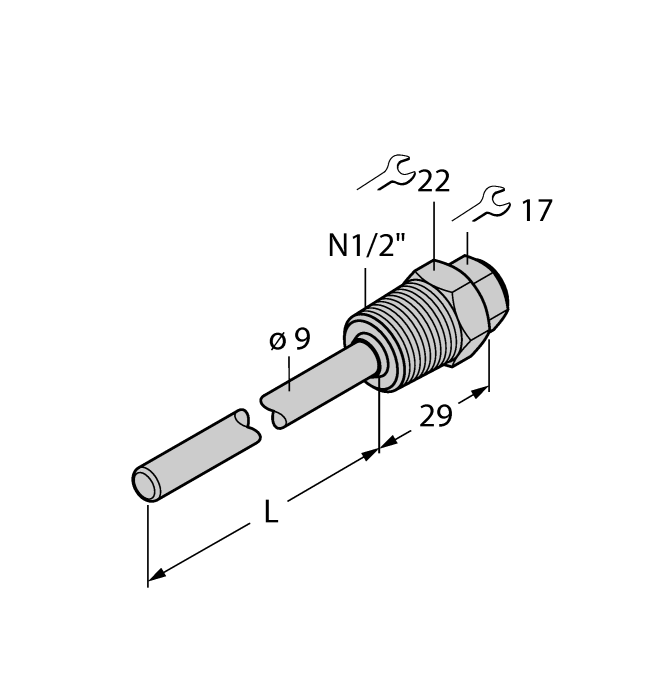

THW-6-N1/2-A4-L100
Protective tube for mounting temperature sensors; sensor diameter 6 mm; process connection 1/2” NPT; immersion depth 100 mm |
9910464 |
|

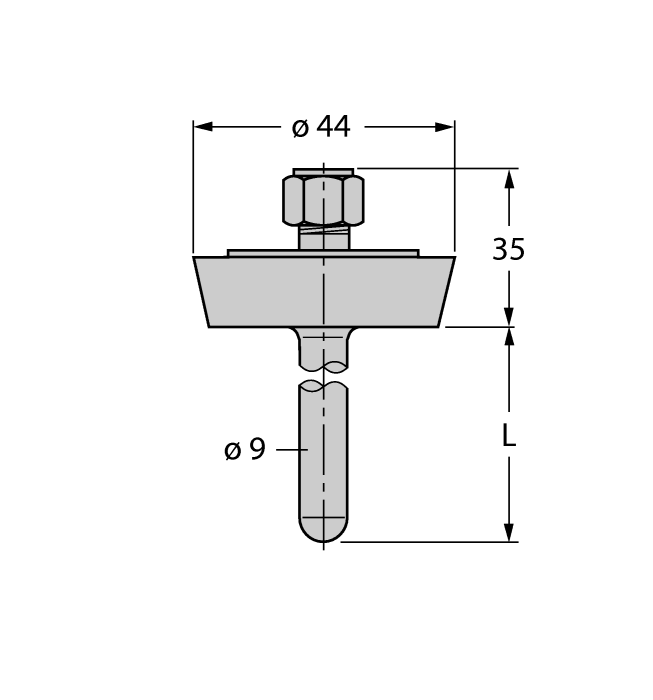

THW-6-DN25K-A4-L100
Protective tube for mounting temperature sensors; sensor diameter 6 mm; process connection for dairy screw connection DN25 acc. to DIN 11851; immersion depth 100 mm; for use in food and pharmaceutical applications |
9910436 |
|

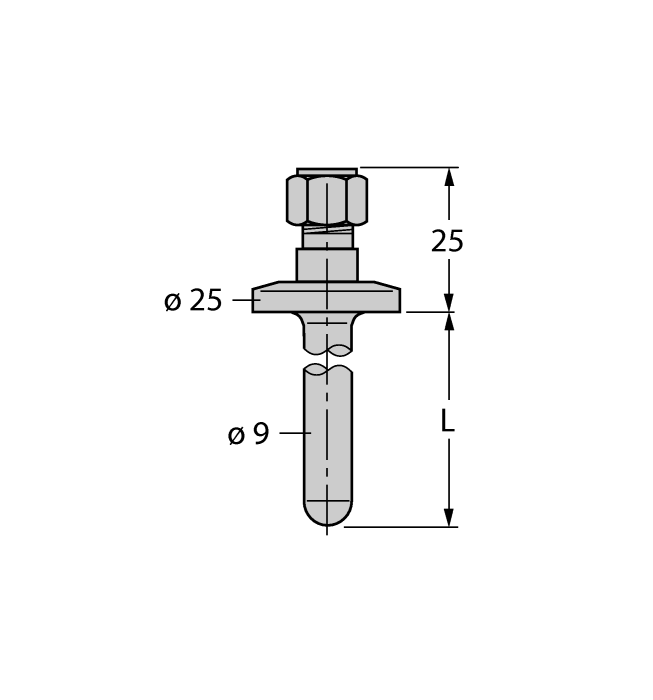

THW-6-TRI3/4-A4-L100
Protective tube for mounting temperature sensors; sensor diameter 6 mm; process connection Tri-Clamp 3/4; immersion depth 100 mm; for use in food and pharmaceutical applications |
9910468 |
|
CF-M-6-G1/4-A4
Compression fitting for direct mounting of temperature sensors; sensor diameter 6 mm; process connection G1/4” male thread |
9910483 |
|
CF-M-6-G1/2-A4
Compression fitting for direct mounting of temperature sensors; sensor diameter 6 mm; process connection G1/2” male thread |
9910530 |
|
CF-M-6-N1/4-A4
Compression fitting for direct mounting of temperature sensors; sensor diameter 6 mm; process connection 1/4” NPT male thread |
9910484 |
|
CF-M-6-N1/2-A4
Compression fitting for direct mounting of temperature sensors; sensor diameter 6 mm; process connection 1/2” NPT male thread |
9910529 |
|
CF-M-6-M18-A4
Compression fitting for direct mounting of temperature sensors; sensor diameter 6 mm; process connection M18 × 1 male thread |
9910525 |
|
|
CF-P-6-G1/4-A4
Compression fitting for direct mounting of temperature sensors; sensor diameter 6 mm; process connection G1/4” male thread |
9910485 |
|
|
CF-P-6-N1/4-A4
Compression fitting for direct mounting of temperature sensors; sensor diameter 6 mm; process connection 1/4” NPT male thread |
9910486 |
Connectivity accessories
|
RKC4.4T-2/TXL
Connection cable, M12 female connector, straight, 4-pin, cable length: 2 m, jacket material: PUR, black; cULus approval |
6625503 |
|
WKC4.4T-2/TXL
Connection cable, M12 female connector, angled, 4-pin, cable length: 2 m, jacket material: PUR, black; cULus approval |
6625515 |
|
RKC4.4T-P7X2-10/TXL
Connection cable, M12 female connector, straight, 4-pin, LED, cable length: 10 m, jacket material: PUR, black; cULus approval |
6626184 |
|
|
WKC4.4T-2/TEL
Connection cable, M12 female connector, angled, 4-pin, cable length: 2 m, jacket material: PVC, black; cULus approval |
6625025 |
|
|
RKC4.4T-2/TEL
Connection cable, M12 female connector, straight, 4-pin, cable length: 2 m, jacket material: PVC, black; cULus approval |
6625013 |
Functional accessories
|
USB-2-IOL-0002
IO-Link Master with integrated USB port |
6825482 |
