Product NI100R-S32XL-2LU-H1141/S950
Inductive Sensor
For Differentiation Between Metals
Order number: 1534610- Rectangular, height 32 mm
- Plastic, POM
- Analog
- 1 x analog output for amplitude evaluation
- 1 x analog output for phase evaluation
- M12 x 1 male connector
General data
| EAN | 4047101071801 |
| eCl@ss-Code (V5.1.4): | 27270802 -/- Indcutive distance sensor |
| Customs tariff number | 85365019000 |
| Country of origin | DE |
| Weight | 991 g |
Technical Data
| Design | Ring sensor |

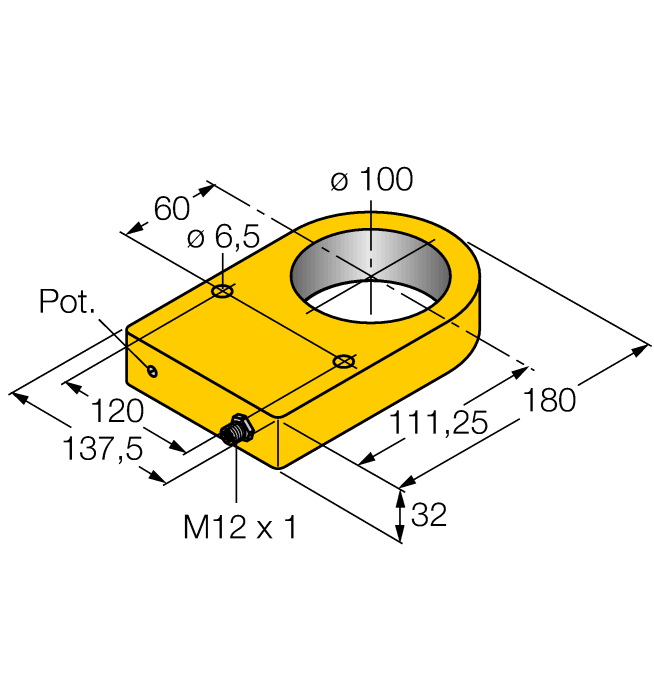

| Construction size | 180 x 137.5 x 32 mm, S32XL |
| Inside ring diameter D | 100 mm |
| Operating voltage | 15…30 VDC |
| Output function | Analog output |
| Voltage output | 0…10 V |
| Electrical connection | Connector, M12 × 1 |
| Housing material | Plastic, POM |
| Ambient temperature | -25…+70 °C |
| Protection class | IP67 |
| Special features | Differentiation of metals |
Connectivity accessories
|
RKC4.4T-2/TEL
Connection cable, M12 female connector, straight, 4-pin, cable length: 2 m, jacket material: PVC, black; cULus approval |
6625013 |
