Product  DX80G2M6S-PB2

Radio Transmission System

Star Topology

Gateway

Order number: 3025756

Alternative order number : 25756

    • External antenna (RG58 RP-SMA connection)
    • External terminal strip
    • Integrated signal strength indicator
    • Configuration via DIP switch
    • Modbus RTU communication, RS485 interface
    • Deterministic data transmission
    • Frequency hopping FHSS
    • Time Division Multiplex Access TDMA
    • Transmission power: 63 mW, 18 dBm conducted, ≤ 20 dBm EIRP
    • Alternative register assignment
    • Inputs: 2 x PNP, 2 x 0…20 mA
    • Outputs: 2 x PNP, 2 x 0…20 mA
    • Power consumption: < 60 mA at 24 VDC
#

General data

EAN 662488257569
eCl@ss-Code (V5.1.4): 27250312 -/- Communication interface, active
Customs tariff number 85176200000
Country of origin US
Weight 123 g

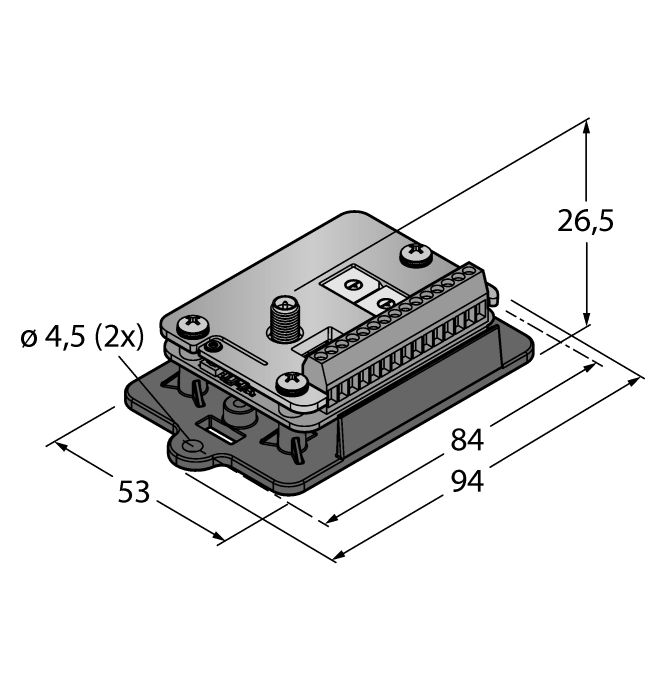

Technical Data

Function Star topology
Device type Gateway
Design Rectangular
Antenna connection RP-SMA female connector
runs with battery nein
Protection class IP00
Communication protocol Modbus RTU, RS485
Input type PNP / 0…20 mA
Output type PNP/0…20 mA
Housing material Plastic, FR4 circuit board
Ambient temperature -40…+85 °C
Approvals ATEX II 3 G

Connectivity accessories

BWC-LMRSFRPB Surge protection, bulkhead fitting, RP-SMA type

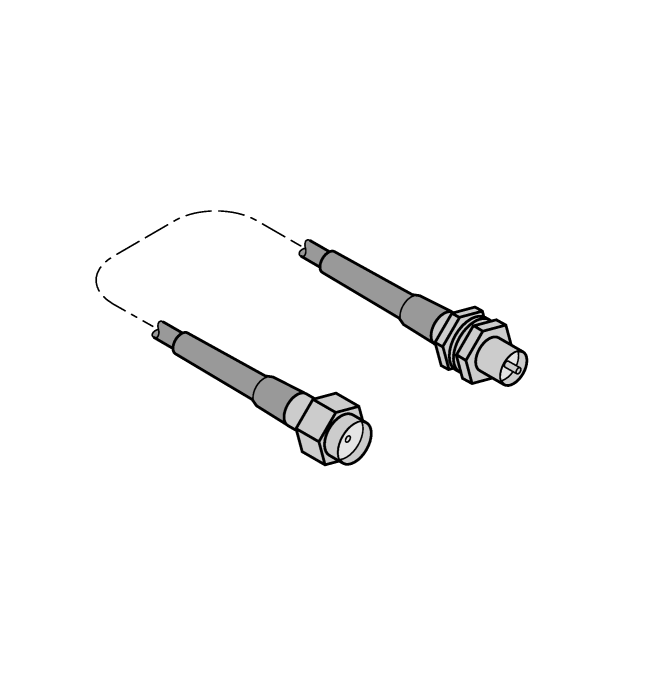

BWC-1MRSFRSB0.2 Antenna extension, RP-SMA on RP-SMAF bulkhead fitting, 0.2m, RG58, loss 1.05 dB/m
BWC-1MRSFRSB1 Antenna extension, RP-SMA on RP-SMAF bulkhead fitting, 1 m, RG58, loss 1.05 dB/m
BWC-1MRSFRSB2 Antenna extension, RP-SMA on RP-SMAF bulkhead fitting, 2m, RG58, loss 1.05 dB/m
BWC-1MRSFRSB4 Antenna extension, RP-SMA on RP-SMAF bulkhead fitting, 4m, RG58, loss 1.05 dB/m

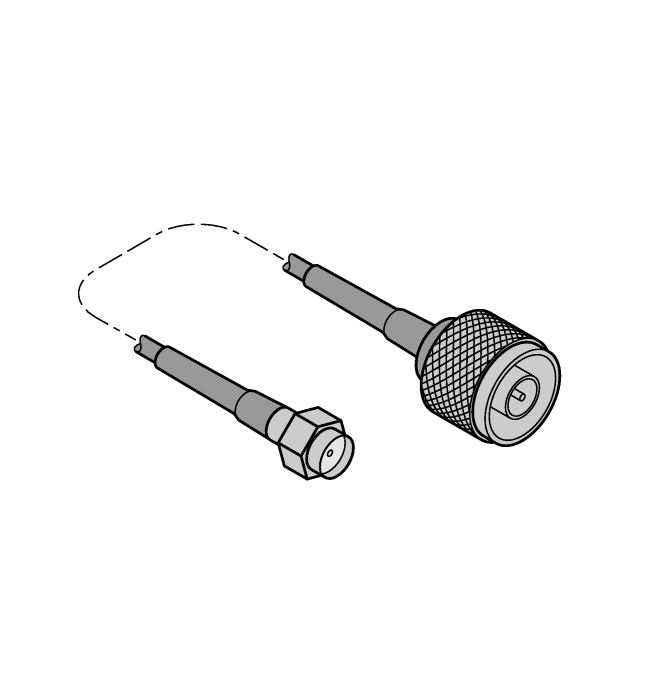

BWC-1MRSMN05 Antenna extension, RP-SMA on N-male, 0.5 m, RG58, loss 0.56 dB/m
BWC-1MRSMN2 Antenna extension, RP-SMA on N-male, 2m, RG58, loss 0.56 dB/m

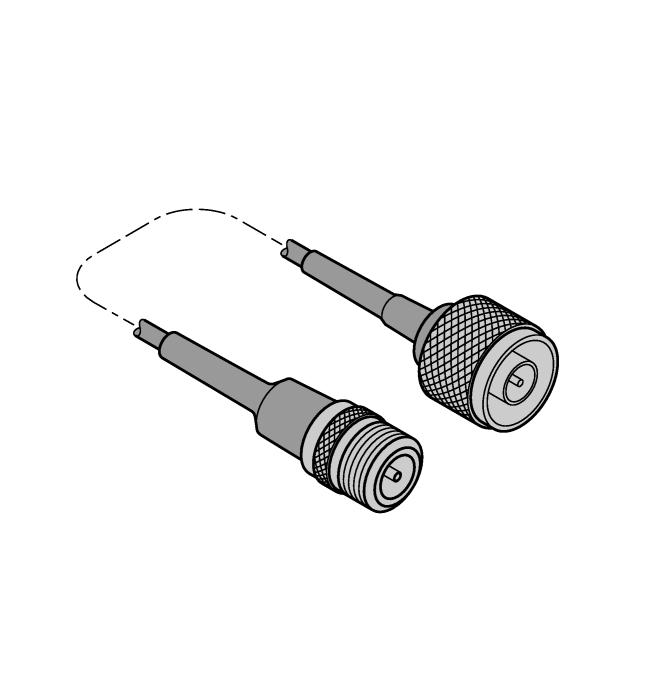

BWC-4MNFN3 Antenna extension, N-male on N-female, 3m, LMR400, coaxial, loss 0.22 dB/m
BWC-4MNFN6 Antenna extension, N-male on N-female, 6m, LMR400, coaxial, loss 0.22 dB/m
BWC-4MNFN15 Antenna extension, N-male on N-female, 15 m, LMR400, coaxial, loss 0.22 dB/m
BWC-4MNFN30 Antenna extension, N-male on N-female, 30m, LMR400, coaxial, loss 0.22 dB/m

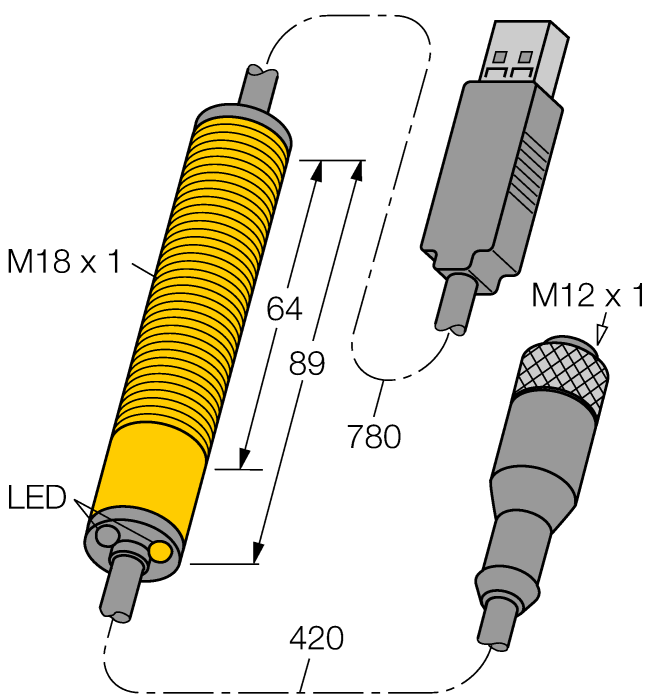

BWA-UCT-900 Converter cable with DC power supply for parameterizing DX80 networks via PC, RS485 to USB 2.0 converter, female connector, M12 × 1, 5-pin, male connector, USB type A, length 1 m; supplies the connected device with 10 V

Functional accessories

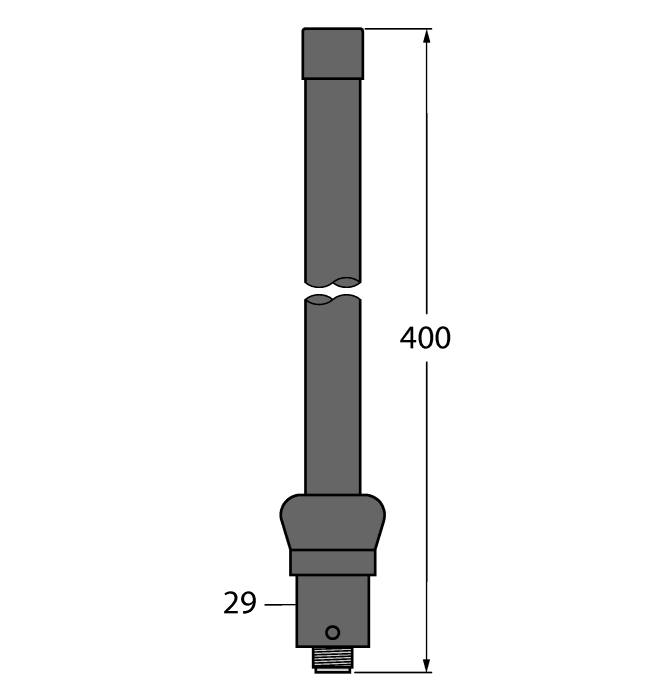

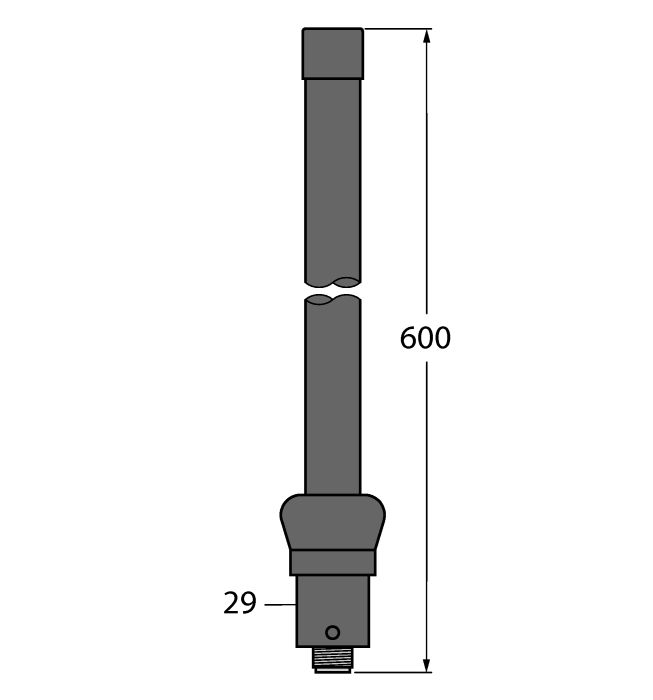

BWA-2O6-A External antenna 6 dBi, N-female

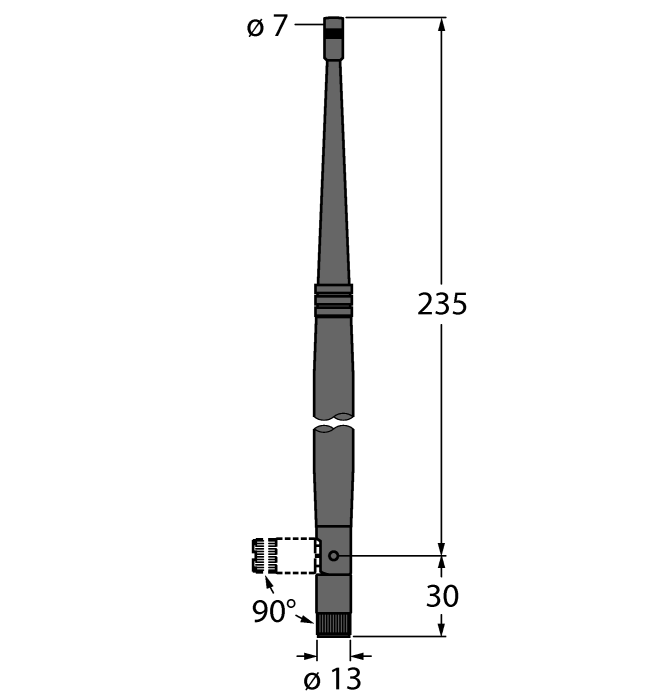

BWA-2O8-A External antenna 8.5 dBi, N-female

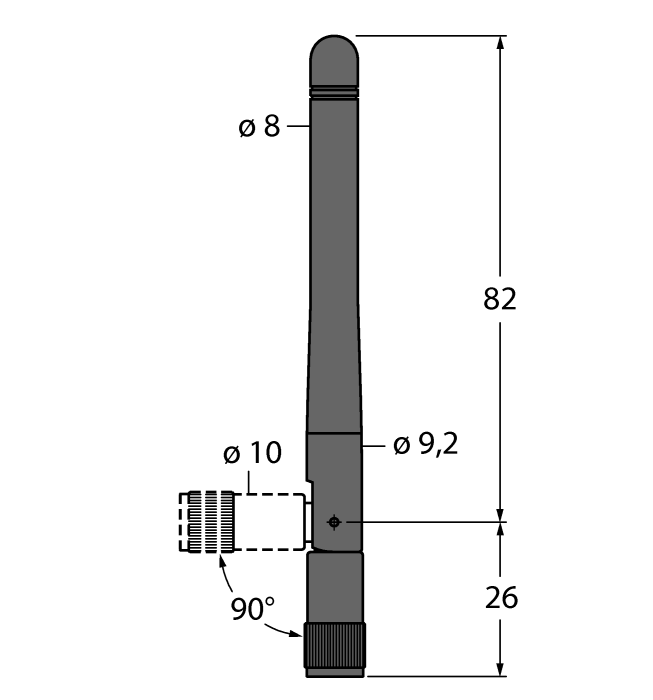

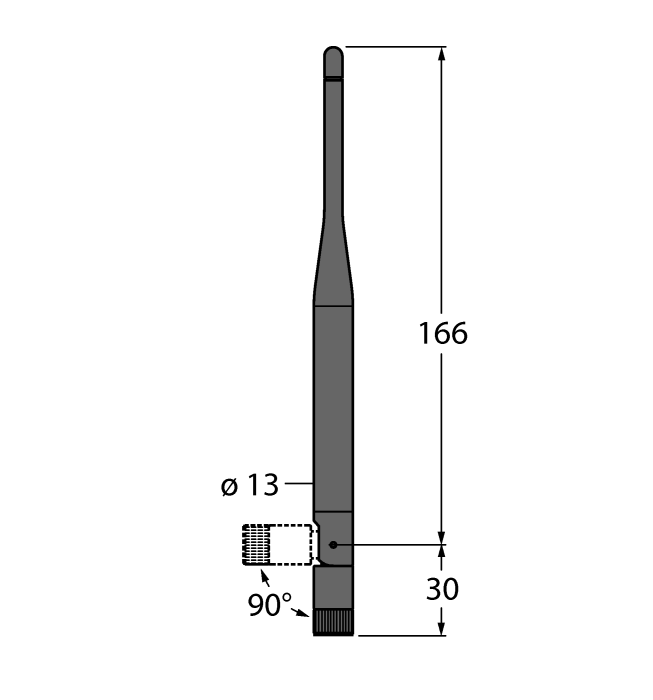

BWA-2O2-C Internal antenna 2 dBi, RP-SMA male, standard
BWA-2O5-C Internal antenna 5 dBi, RP-SMA male
BWA-2O7-C Internal antenna 7 dBi, RP-SMA male
