Product VB2-FSM5-2FKM5

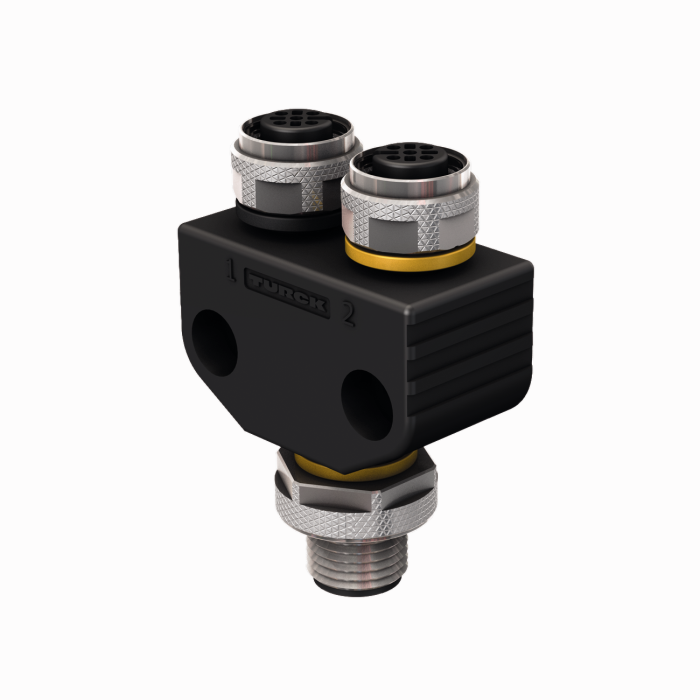

2-Way Splitter
Y-Splitter without Cable, Male Connector — 2 × Female Connectors
Order number: 6635487- M12 male connector, 5-pin
- 2 × M12 female connector, 5-pin
- Wired in parallel
- RoHS compliant
- Protection class: IP67
General data
| EAN | 4047101590036 |
| eCl@ss-Code (V5.1.4): | 27250316 -/- Passive sensor/actuator junction |
| Customs tariff number | 85366990990 |
| Country of origin | CN |
| Weight | 51 g |
Technical Data
| Application | Signal |
| Design | Y-splitter |
| Connector A | Male, M12 × 1 |
| Connector B | 2 x Female, M12 × 1 |
| Number of Drops/Branches | 2 |
| Voltage | 60 V |
Mounting accessories
|
TORQUE-WRENCH-SET-AS
Torque wrench set; handles with adjustable torque 0.4-1.0 Nm, torque wrench for M8 (SW9), fork wrench for M12 (SW 14) |
6936170 |
