Product DPC-49-HSEFD/24VDC
HSE Field Device
FOUNDATION Fieldbus
Order number: 6882014- HSE field device for transmission of diagnostic data
- FOUNDATION fieldbus function blocks for remote diagnostics
- Local diagnostics via LEDs
- Long-term diagnostics of 16 H1 segments
- Complete galvanic isolation
General data
| EAN | 4047101110753 |
| eCl@ss-Code (V5.1.4): | 27259802 -/- Fieldbus (inspection, maintenance, diagnostics [AGZ323004] |
| Customs tariff number | 85369095000 |
| Country of origin | DE |
| Weight | 537 g |
Technical Data
| Network protocol | FOUNDATION fieldbus |
| Connection technology signal | Screw terminal |
| Device type | Diagnostics |
| Ambient temperature | -20…+60 °C |
| Protection class | IP20 |
Data Sheets
| German | 420 KB |
| English | 419 KB |
| French | 420 KB |
| Spanish | 420 KB |
| Czech | 420 KB |
| Dutch | 419 KB |
| Romanian | 419 KB |
| Russian | 441 KB |
| Polish | 419 KB |
| Turkish | 420 KB |

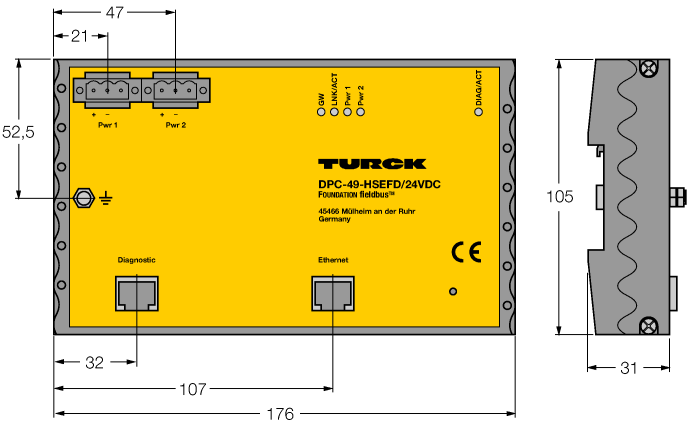

CAD File
Configuration Software
| DTM DPC system V1.30 | 37677 KB |
| DTM FF-HSE/COM V1.30 | 14578 KB |
| 20863 KB | |
| DPC-49-HSEFD alarm and event reader | 1491 KB |
Manual
| Diagnostic Power Conditioner system (diagnostics) | 3356 KB |
| DPC-49-HSEFD alarm and event reader | 1426 KB |
