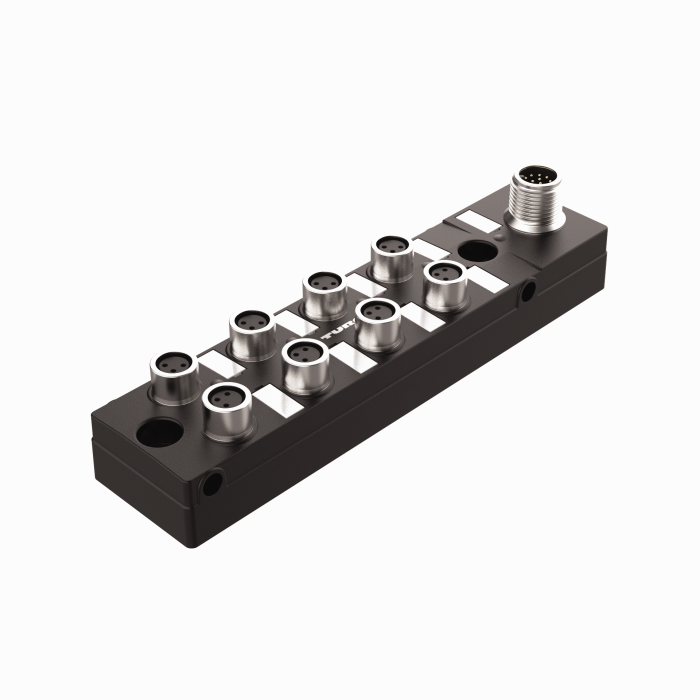

Product TB-8M8M-3-FS12
Passive Actuator/Sensor Junction Box, 8 Ports
M8 × 1 I/O Port with M12 Male Connector for the Supply Cable
Order number: U2-28809- Housing material: Nylon
- Housing color: black
- Protection class IP67
- RoHS conform
- cULus listed
- I/O port (number of pins): 3-pin + PE
General data
| EAN | 4047101469462 |
| Customs tariff number | 85366990990 |
| Country of origin | MX |
| Weight | 128 g |
Technical Data
| Application | Signal |
| Number of Ports | 8 |
| I/O port | Female, M8 × 1 |
| Number of pins | 3 |
| Group terminal | Male, M12 × 1, Top output |
| Number of Pins | 12 |
| Housing material | Plastic, PA6-GF30 |
| Voltage | 30 V |
| Ampacity | 2 A per contact, total current 2 A |
| Approvals | CE, UKCA, RoHS |
