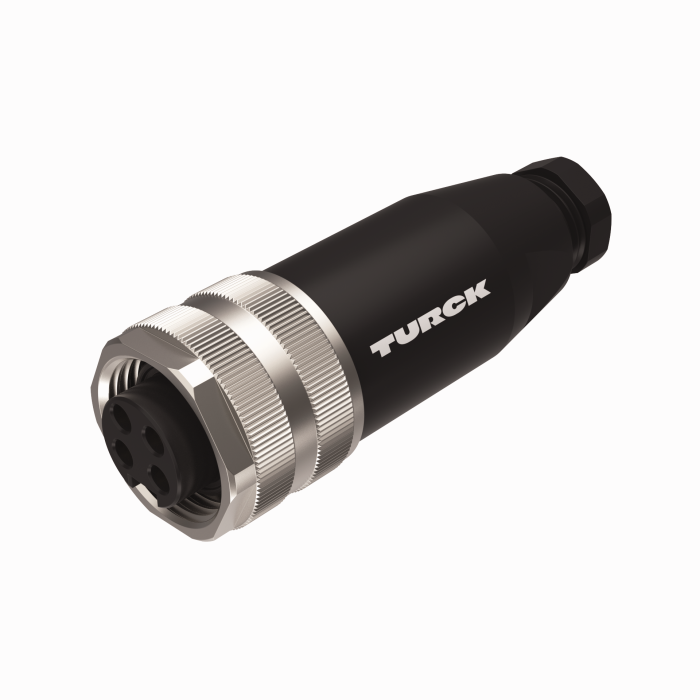

Product B 4141-0/9
Actuator and Sensor, Field-Wireable
7/8” Verbindung
Order number: U6410- Screw terminal connection
- Plastic housing
- 7/8″ female connector, straight, 4-pin
- Plastic housing
- Screw terminal connection
General data
| EAN | 4047101626858 |
| Customs tariff number | 85366990990 |
| Country of origin | DE |
| Weight | 46.493 g |
Technical Data
| Application | Signal |
| Connector A | Female, 7/8″-16 UN, Straight |
| Number of pins | 4 |
| Connector body | Plastic, PBT, Black |
| Coupling nut/screw | Die-cast Zinc, CuZn, Nickel-plated |
| Voltage | 600 V |
| Current | 9 A |
| Protection class | IP67 |
| Approvals | UL Recognized, RoHS |
