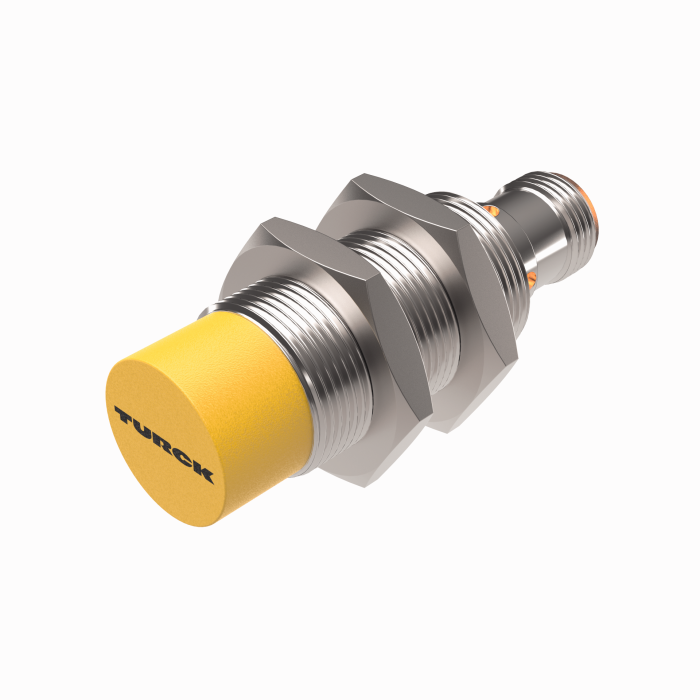

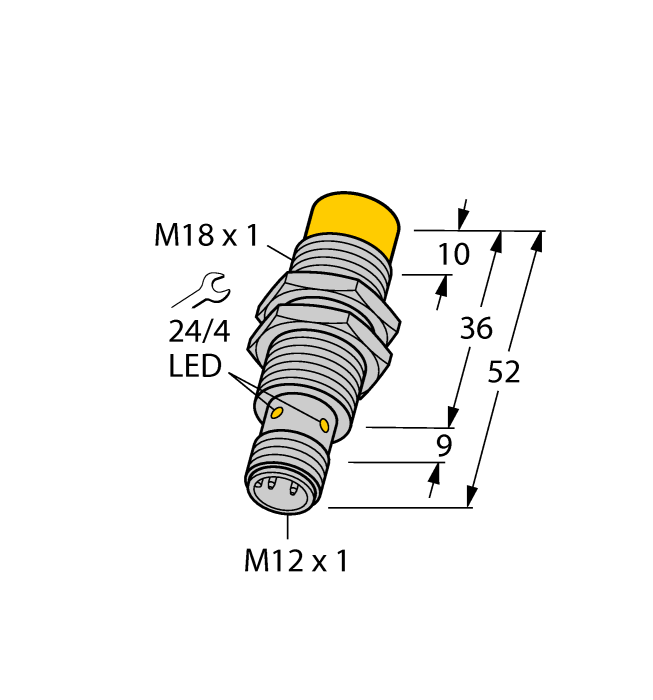

Product  NI10-M18-Y1X-H1141

Inductive Sensor

Order number: 40153
    • Threaded barrel, M18 x 1
    • Chrome-plated brass
    • DC 2-wire, nom. 8.2 VDC
    • Output acc. to DIN EN 60947-5-6 (NAMUR)
    • M12 x 1 male connector
#

General data

Preferred type 5
EAN 4047101091212
eCl@ss-Code (V5.1.4): 27270101 -/- Inductive proximity switch
Customs tariff number 85365019900
Country of origin DE
Weight 57 g

Technical Data

Design Threaded barrel
Construction size M18 x 1
Rated switching distance 10 mm
Mounting conditions Non-flush
Output function NAMUR
Electrical connection Connectors, M12 × 1
Housing material Metal, CuZn, Chrome-plated
Ambient temperature -25…+70 °C
Protection class IP67
Approvals ATEX II 1G, ATEX II 2G, ATEX II 3G, ATEX II 1D, ATEX II 2D, ATEX II 3D, SIL2, PLc
