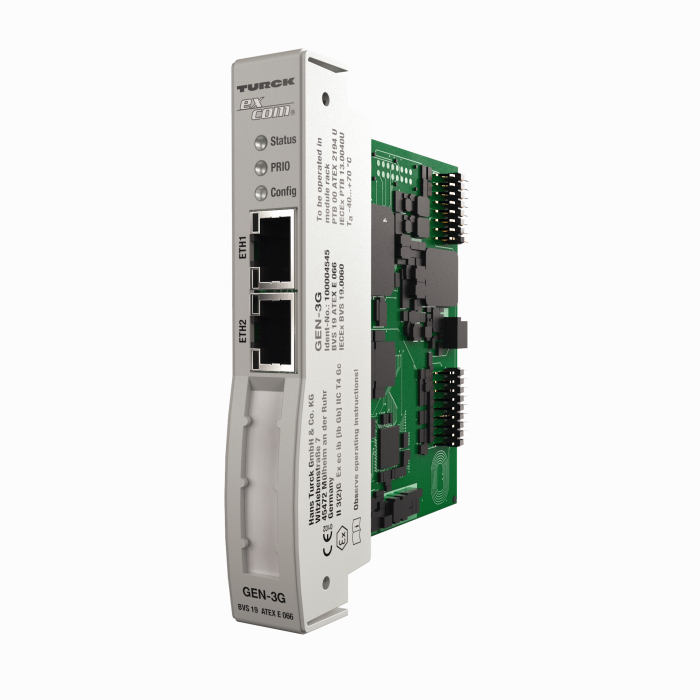

Product GEN-3G
excom I/O System
Multiprotocol Gateway for Ethernet
Order number: 100004545- Gateway for Ethernet fieldbus communication
- Connection of the excom station to the Ethernet fieldbus
- Support for Ethernet protocols Modbus TCP, EtherNet/IP and PROFINET
- Integrated switch, 10/100 Mbps
- Two RJ45 connectors for fieldbus connection
General data
| EAN | 4047101501315 |
| eCl@ss-Code (V5.1.4): | 27250312 -/- Communication interface, active |
| Customs tariff number | 85389099990 |
| Country of origin | DE |
| Weight | 128 g |
Technical Data
| Network protocol | EtherNet/IP, PROFINET, Modbus TCP |
| Connection technology signal | Screw terminal, Cage clamp terminal |
| Device type | Gateway |
| Ambient temperature | -40…+70 °C |
| Protection class | IP20 |
| Approvals | ATEX, cFMus, cFM, IECEx, CCC, INMETRO, KOSHA, EAC Ex, UKCA, CE |
Data Sheets
| German | 391 KB |
| English | 390 KB |
| French | 392 KB |
| Spanish | 392 KB |
| Czech | 392 KB |
| Dutch | 390 KB |
| Romanian | 391 KB |
| Russian | 414 KB |
| Polish | 391 KB |
| Chinese | 452 KB |
| Turkish | 392 KB |
Approval
Configuration File
| EtherNet/IP CIP bridging | 254 KB |
| EtherNet/IP consolidated IO | 2791 KB |
| GSDML files | 33 KB |
| L5K File | 205 KB |
Configuration Software
Firmware
Manual
Product Catalog
Product Overview
| Modular I/O Systems and Compact I/O Modules in IP20 and IP67 | 1559 KB |
| Products and Solutions for Efficient Automation | 2173 KB |
| excom I/O system | 6454 KB |
Quick Start Guide
Connectivity accessories — Network
|

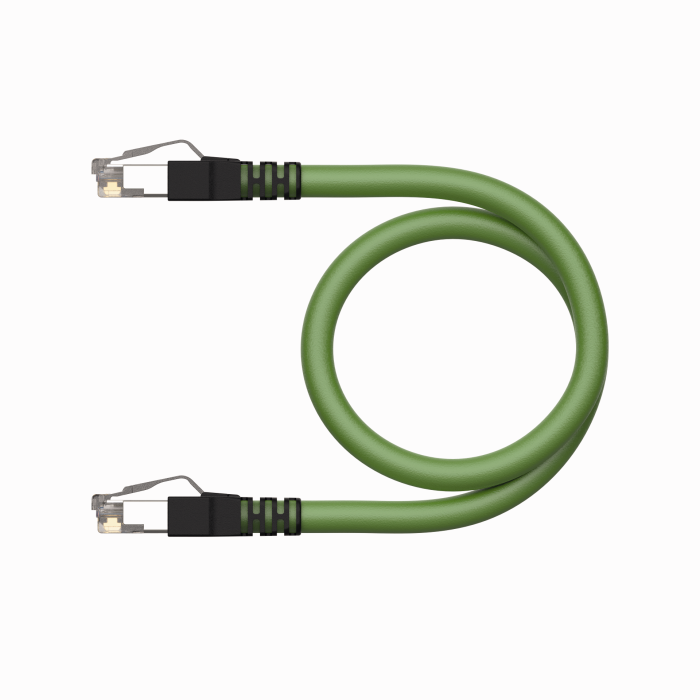

RJ45S-RJ45S-4422-2M | 6635218 |
