Product  BI3-M08K-AP6X-V1131

Inductive Sensor

With Increased Switching Distance

Order number: 4602917
    • Threaded barrel, M8 x 1
    • Nickel-plated brass
    • Large sensing range
    • DC 3-wire, 10…30 VDC
    • NO contact, PNP output
    • M8 x 1 male connector

General data

EAN 4047101403459
eCl@ss-Code (V5.1.4): 27270101 -/- Inductive proximity switch
Customs tariff number 85365019900
Country of origin CH
Weight 16 g

Technical Data

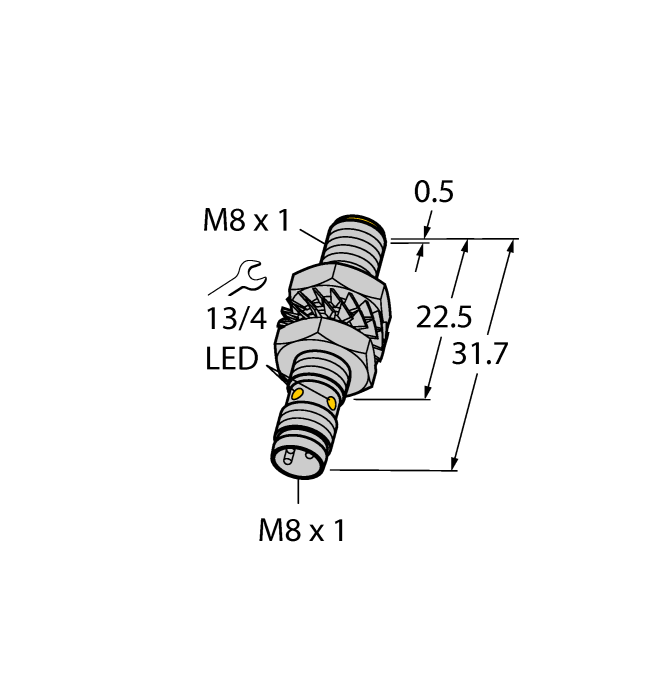

Design Threaded barrel
Construction size M8 x 1
Rated switching distance 3 mm
Mounting conditions Flush
Operating voltage 10…30 VDC
Output function NO contact, PNP
Switching frequency 2.80 kHz
Electrical connection Connector, M8 × 1
Housing material Metal, CuZn, Nickel Plated
Ambient temperature -25…+70 °C
Protection class IP67
Special features Sn +
