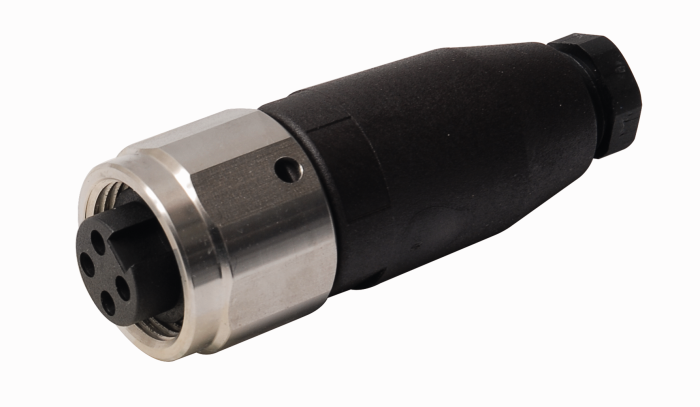

Product BKV4140-0/9
Field-Wireable Connector
7/8″ Female, Straight
Order number: 6914543- For use in PROFIBUS-PA and FOUNDATION fieldbus applications
- Screw-clamp terminal
- Stainless steel coupling nut
- 4-pin
- PG9 screw-in thread
- Cable feedthrough 6.0…8.0 mm
General data
| EAN | 4047101510829 |
| eCl@ss-Code (V5.1.4): | 27279201 -/- Connectivity (accessories sensors) |
| Customs tariff number | 85366990990 |
| Country of origin | HU |
| Weight | 68 g |
Technical Data
| Network protocol | PROFIBUS-PA |
| Connection technology signal | 7/8” |
| Device type | Field-wireable connector |
| Ambient temperature | -40…+90 °C |
