Product BS4241-0/9
Field-Wireable Connector

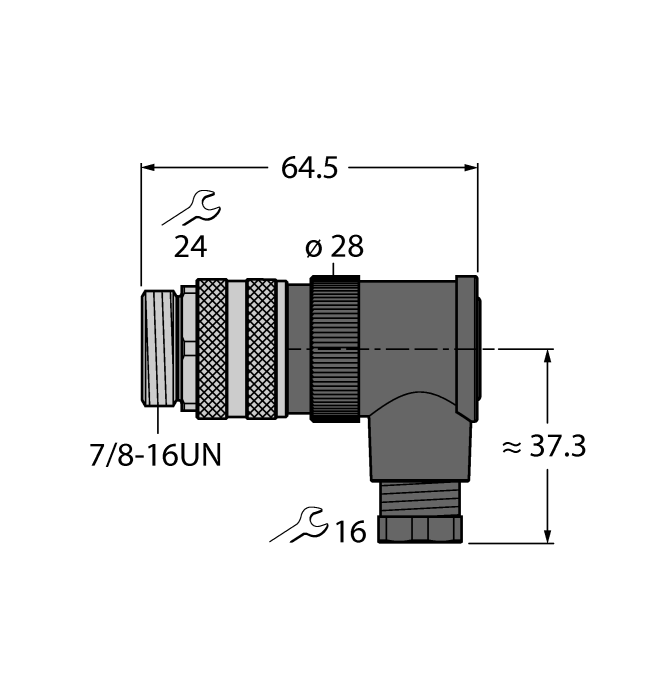

Male Connector, 7/8″, Angled
Order number: 6901020- Screw-clamp terminal
- Metal coupling nut
- UL approval
- 4-pin
- PG9 screw-in thread
- Cable feedthrough 6.0…8.0 mm
General data
| EAN | 4047101458237 |
| eCl@ss-Code (V5.1.4): | 27279201 -/- Connectivity (accessories sensors) |
| Customs tariff number | 85366990990 |
| Country of origin | DE |
| Weight | 57 g |
Technical Data
| Application | Signal, Power |
| Connector A | Male, 7/8″-16 UN, Angled |
| Number of Pins | 5 |
| Connection mode | Screw/clamp connection |
| Screw-in thread | PG9 |
| Housing material | Plastic, PBT(UL 94 V0) |
| Coupling nut/screw material | Die-cast Zinc, GD-Zn, Nickel-plated |
| External diameter of the cable | 6…8 mm |
| Core cross-section/Clamping ability | 0.14…1.5 mm² |
| Voltage | 600 V |
| Current | 9 A |
| Approvals | cULus recognized |
Data Sheets
| German | 845 KB |
| English | 844 KB |
| French | 845 KB |
| Spanish | 844 KB |
| Czech | 845 KB |
| Dutch | 845 KB |
| Romanian | 845 KB |
| Russian | 850 KB |
| Polish | 846 KB |
| Chinese | 878 KB |
| Turkish | 846 KB |
Approval/Declaration
| UL Approval | 339 KB |
| CE Declaration of Conformity | 120 KB |
| RoHS and REACH Manufacturer's Declaration | 280 KB |
