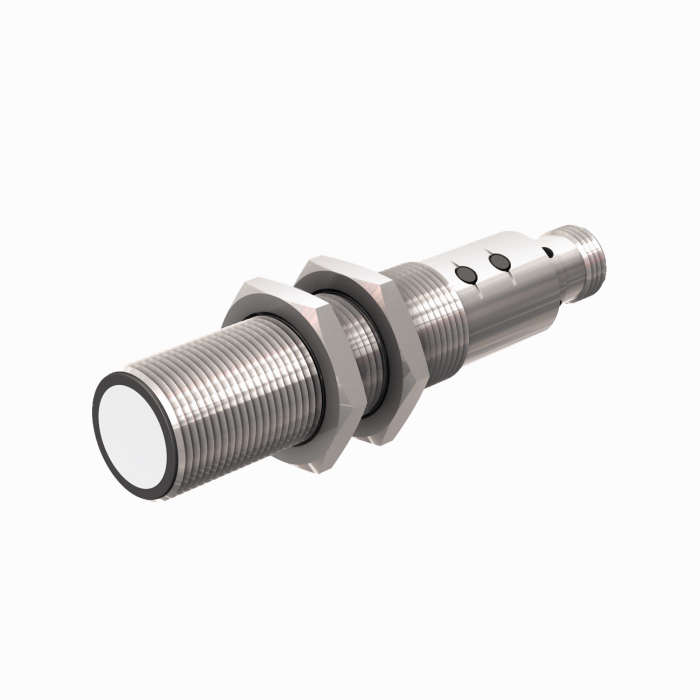

Product  RU40U-M18E-LIU2PN8X2T-H1151

Ultrasonic Sensor

Diffuse Mode Sensor

Order number: 1610024
    • Smooth sonic transducer face

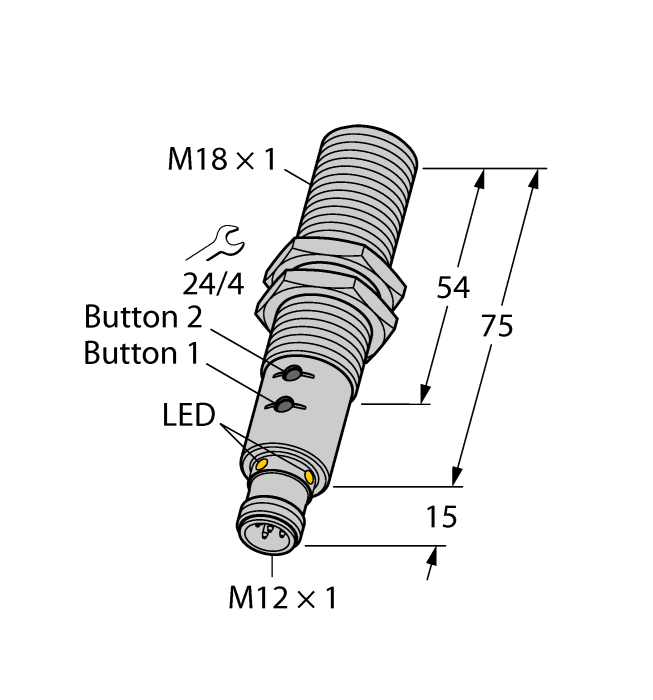

    • Cylindrical housing M18, potted
    • Connection via M12 x 1 male
    • Teach range adjustable via pushbutton or adapter
    • Temperature compensation
    • Blind zone: 2.5cm
    • Range: 40cm
    • Resolution: 0.5mm
    • Aperture angle of sonic cone: 15°
    • 1 × switching output, PNP/NPN
    • 1 × analog output, 4…20 mA / 0…10 V / additional switching output, PNP/NPN
    • NO/NC programmable
    • Transmission of process value and parametrization via IO-link

General data

EAN 4047101287370
eCl@ss-Code (V5.1.4): 27272803 -/- Ultrasonic proximity switch
Customs tariff number 85365019900
Country of origin DE
Weight 85 g

Technical Data

Function Proximity switch
Design Threaded barrel
Construction size M18 x 1
Radiation direction straight
Range 25…400 mm
Operating voltage 15…30 VDC
Switching element function NO/NC
Output function PNP/NPN, analog output
Voltage output 0…10 V
Current output 4…20 mA
Communication protocol IO-Link
Electrical connection Connectors, M12 × 1
Housing material Metal
Housing quality CuZn
Housing surface Nickel Plated
Ambient temperature -25…+70 °C
Protection class IP67
Special features Synchronization, Pushbutton
