Product DX80N2X6S-P6

Zoom

Radio Transmission System

Star Topology

Node

Order number: 3095667

Alternative order number : 95667

External antenna (RG58 RP-SMA connection)
Integrated signal strength indicator
Configuration via DIP switch

Deterministic data transfer
Frequency hopping FHSS
Time Division Multiplex Access TDMA
Transmission power: 63 mW, 18 dBm conducted, ≤ 20 dBm EIRP

M12 x 1 female connector for connecting a sensor with serial interface
Power consumption: < 60 mA at 24 VDC

Hide All Open All

Specifications
Download
Accessories

General data

EAN	662488956677
eCl@ss-Code (V5.1.4):	27250312 -/- Communication interface, active
Customs tariff number	85176200
Country of origin	US
Weight	446 g

Technical Data

Function	Star topology
Device type	Node
Construction type designation	DX80
Design	Rectangular
Antenna connection	RP-SMA female connector
runs with battery	nein
Protection class	IP67
Communication protocol	1-wire-serial
Input type	Serial interface
Housing material	Plastic, PC
Ambient temperature	-20…+80 °C
Approvals	ATEX II 3 G

Data Sheets

German	513 KB
English	513 KB
French	514 KB
Spanish	512 KB
Czech	514 KB
Dutch	513 KB
Romanian	514 KB
Russian	520 KB
Polish	514 KB
Turkish	514 KB

Manual

DX80 manual	5489 KB

Product Flyer

Radio Solutions DX80	4005 KB

Product Overview

15 Points to Consider For Successful Application	145 KB

Mounting accessories

3094613	K50UX1CRA	Ultrasonic sensor, diffuse-mode sensor, 3 m range, serial interface for connection to DX80 nodes
3025895	M12FTH4Q	Temperature and humidity sensor, metal housing, protection class IP67, serial interface for connection to DX80 nodes

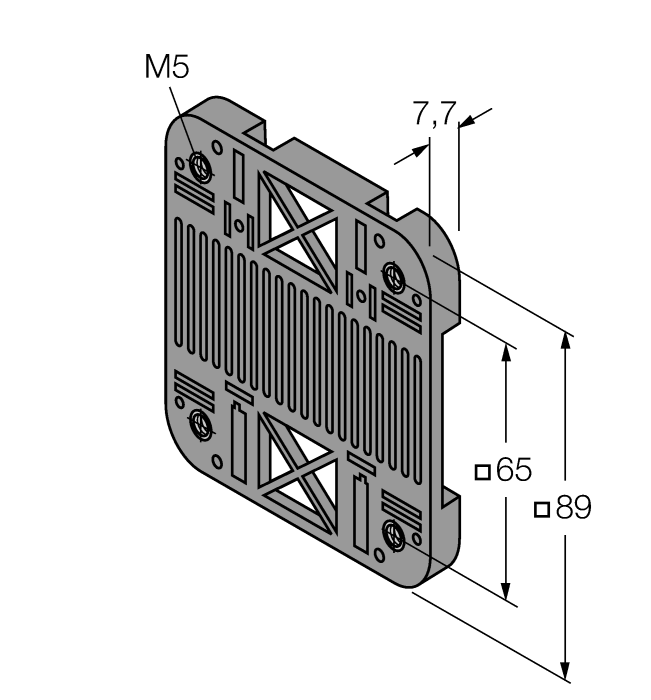

3077161	SMBDX80DIN	Mounting panel for DIN rail, suited for CP80, DX80, K80, Q80, operating temperature: -20…90 °C

Connectivity accessories

3079296	BWC-LMRSFRPB	Surge protection, bulkhead fitting, RP-SMA type
3078544	BWC-1MRSFRSB0.2	Antenna extension, RP-SMA on RP-SMAF bulkhead fitting, 0.2m, RG58, loss 1.05 dB/m
3078337	BWC-1MRSFRSB1	Antenna extension, RP-SMA on RP-SMAF bulkhead fitting, 1 m, RG58, loss 1.05 dB/m
3078338	BWC-1MRSFRSB2	Antenna extension, RP-SMA on RP-SMAF bulkhead fitting, 2m, RG58, loss 1.05 dB/m
3077488	BWC-1MRSFRSB4	Antenna extension, RP-SMA on RP-SMAF bulkhead fitting, 4m, RG58, loss 1.05 dB/m
3077486	BWC-1MRSMN05	Antenna extension, RP-SMA on N-male, 0.5 m, RG58, loss 0.56 dB/m
3077820	BWC-1MRSMN2	Antenna extension, RP-SMA on N-male, 2m, RG58, loss 0.56 dB/m
3077489	BWC-4MNFN3	Antenna extension, N-male on N-female, 3m, LMR400, coaxial, loss 0.22 dB/m
3077490	BWC-4MNFN6	Antenna extension, N-male on N-female, 6m, LMR400, coaxial, loss 0.22 dB/m
3077821	BWC-4MNFN15	Antenna extension, N-male on N-female, 15 m, LMR400, coaxial, loss 0.22 dB/m
3077822	BWC-4MNFN30	Antenna extension, N-male on N-female, 30m, LMR400, coaxial, loss 0.22 dB/m

Functional accessories

3081081	BWA-2O6-A	External antenna 6 dBi, N-female
3081080	BWA-2O8-A	External antenna 8.5 dBi, N-female
3077816	BWA-2O2-C	Internal antenna 2 dBi, RP-SMA male, standard
3077817	BWA-2O5-C	Internal antenna 5 dBi, RP-SMA male
3077818	BWA-2O7-C	Internal antenna 7 dBi, RP-SMA male
