Product  BIM-UNC-AP6X

Magnetic Field Sensor

For Pneumatic Cylinders

Order number: 100001904
    • For SMC C-groove cylinders without mounting accessories
    • One-hand mounting possible
    • Stable mounting
    • Magneto-resistive sensor
    • DC 3-wire, 11…30 VDC
    • NO contact, PNP output
    • Cable connection
#

General data

EAN 4047101454093
eCl@ss-Code (V5.1.4): 27270104 -/- Magnetic inductive proximity switch
Customs tariff number 85365019900
Country of origin PL
Weight 17 g

Technical Data

Design Rectangular

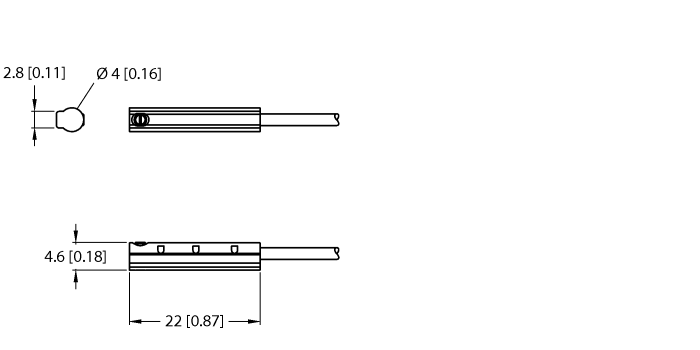

Construction size 22 x 4 x 4.6 mm, UNC
Cylindrical design C-groove cylinder
Operating voltage 11…30 VDC
Output function NO contact, PNP
Electrical connection Cable
Cable length 2.0  m
Housing material Plastic, PP-GF20
Ambient temperature -25…+70 °C
Protection class IP67
