Product PSU67-3P-1S-2L-24250-IOL-F
Smart Power Supply Module in IP67
24…28 VDC Output Voltage
3-Phase, 25-A Output Current, IO-Link Interface
Order number: 100025929- Broad temperature range
- Status LED
- High efficiency, > 95 %
- 3-phase AC input, M12 S-coded
- Current-limited outputs, 2 × M12 L-coded
- Protection by 4 separate eFuses
- IO-Link interface for checking and parameterization
- LED interface and control knobs for maximum flexibility
General data
| EAN | 4047101536287 |
| eCl@ss-Code (V5.1.4): | 27049002 -/- DC supply |
| Customs tariff number | 85044083900 |
| Country of origin | DE |
| Weight | 1605 g |
Technical Data
| Power supply | 3 × AC 380…480 V |
| Nominal output voltage | 24 V |
| Output voltage | 24…28 VDC |
| Nominal current | 25 A |
| Status interface | IO-Link (V 1.1) |
| Internal fuse | 4 separate eFuses |
| Parallel mode | no |
| Power Good Output | no |

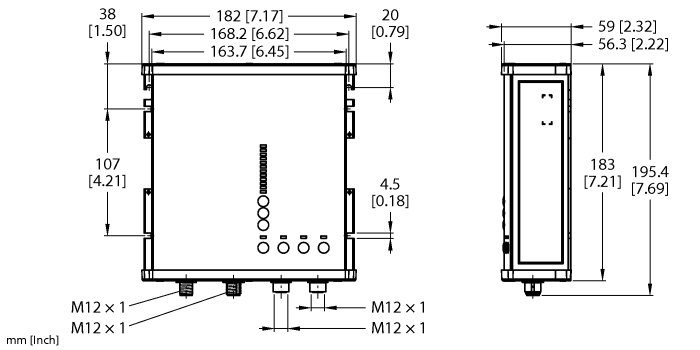

| Dimensions | 183 x 180.6 x 58.7 mm |
| Protection class | IP67 |
Connectivity accessories
|
RKC4.4T-2-RSC4.4T/TXL
Extension cable, M12 female connector, straight, 4-pin to M12 male connector, straight, 4-pin; cable length: 2 m, jacket material: PUR, black; cULus approval |
6625608 |
|
RKP46PSB-2-RSP46PSB/TXL
Extension cable, M12 female connector, straight, 3-pin + PE, S-coded; M12 male connector, straight, 3-pin + PE, S-coded; cable length: 2 m, jacket material: PUR, black |
100004420 |
|
VH2-M12S-M4-2F4
Small h-splitter, M12 Power, S-coded, 3-pin + PE |
100028588 |
|
VT2-M12S-M4-2F4
T-splitter, M12 Power, S-coded, 3-pin + PE |
100028580 |
|
|
RKP46PLB-2-RSP46PLB/TXL
Extension cable, M12 female connector, straight, 4-pin, L-coded; M12 male connector, straight, 4-pin, L-coded; cable length: 2 m, jacket material: PUR, black |
100028666 |
|
VT2-M12L-M5-2F5
T-splitter, M12 Power, L-coded, 4-pin + FE |
100028579 |
|

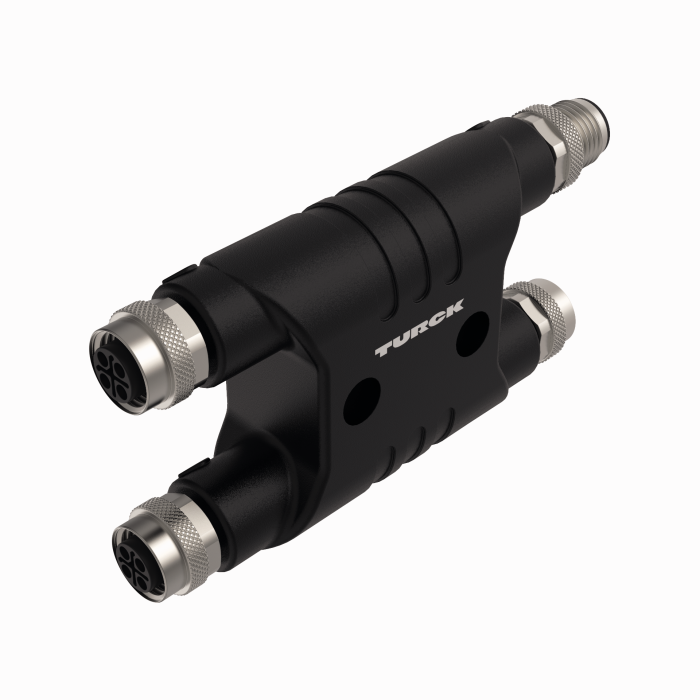

VH2-M12L-M5-2F5
Small h-splitter, M12 Power, L-coded, 4-pin + FE |
100028587 |
|
VH3-M12L-M5-3F5
Large H-splitter, M12 Power, L-coded, 4-pin + FE |
100028591 |
|
VH3-M12S-M4-3F4
Large H-splitter, M12 Power, S-coded, 3-pin + PE |
100028592 |
Connectivity accessories — Power supply
|

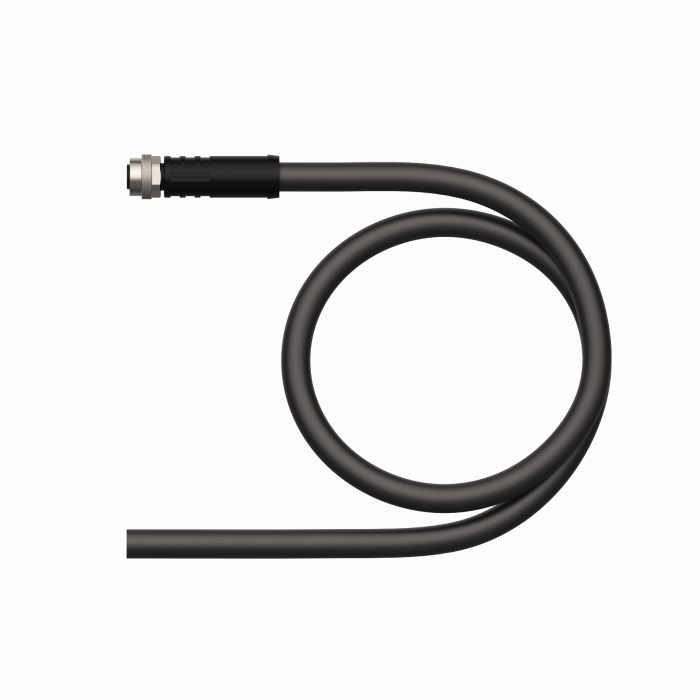

RSP56PLB-2/TXG
Connection cable, M12 male connector, straight, 5-pin, cable length: 2 m, jacket material: PVC, gray |
100018910 |
|
|
RKP46PSB-2-RSP46PSB/TXL
Extension cable, M12 female connector, straight, 3-pin + PE, S-coded; M12 male connector, straight, 3-pin + PE, S-coded; cable length: 2 m, jacket material: PUR, black |
100004420 |
Connectivity accessories — I/O
|
|
RKC4.4T-2-RSC4.4T/TXL
Extension cable, M12 female connector, straight, 4-pin to M12 male connector, straight, 4-pin; cable length: 2 m, jacket material: PUR, black; cULus approval |
6625608 |
|
WKC4.4T-2-RSC4.4T/TXL
Extension cable, M12 female connector, angled, 4-pin to M12 male connector, straight, 4-pin, cable length: 2 m, jacket material: PUR, black; cULus approval |
6625640 |
