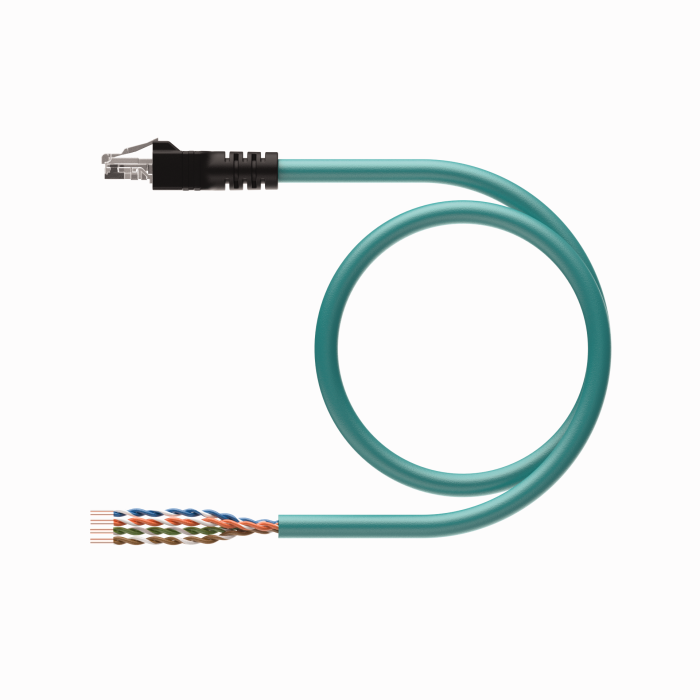

Product RJ45S 841-6M
Industrial Ethernet Cable
Anschluss Kabelsatz
Order number: U8635-6- Ethernet cable: 8‐pin, AWG 24, shielded
- Jacket material: TPE, color: green
- Jacket diameter: 7.7 mm
- Suitable for drag chain use
- UL approval

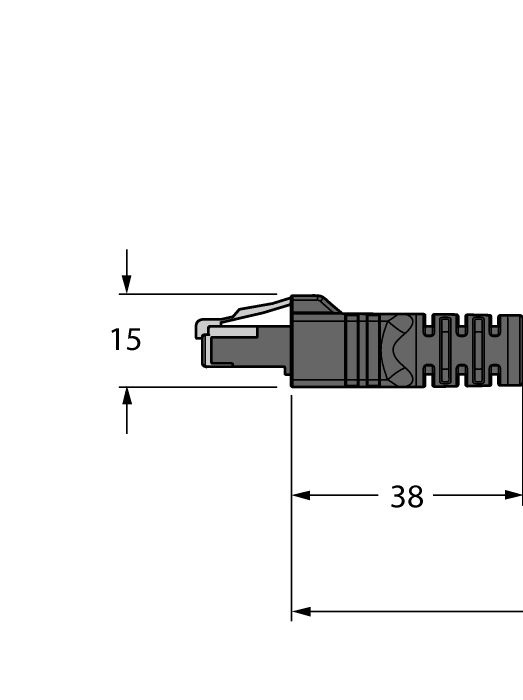

- RJ45 male connector, straight, 8-pin
- RJ45 male connector, straight, 8-pin
General data
| EAN | 4047101035841 |
| eCl@ss-Code (V5.1.4): | 27060307 -/- Bus cable |
| Customs tariff number | 85444290900 |
| Country of origin | MX |
| Weight | 437 g |
Technical Data
| Application | Data |
| Design | Connection Cable |
| Connector A | Male, RJ45, Straight |
| Number of pins | 8 |
| Connector body | Plastic, TPU, Black |
| Network protocol | Ethernet |
| Voltage | 42 V |
| Current | 1.5 A |
| Cable diameter | Ø 7.7 mm |
| Cable length | 6.0 m |
| Cable jacket | TPE, Green |
| Number of Conductors | 8 |
| Protection class | IP20 |
| Special features | Shielded |
| Approvals | UL |
