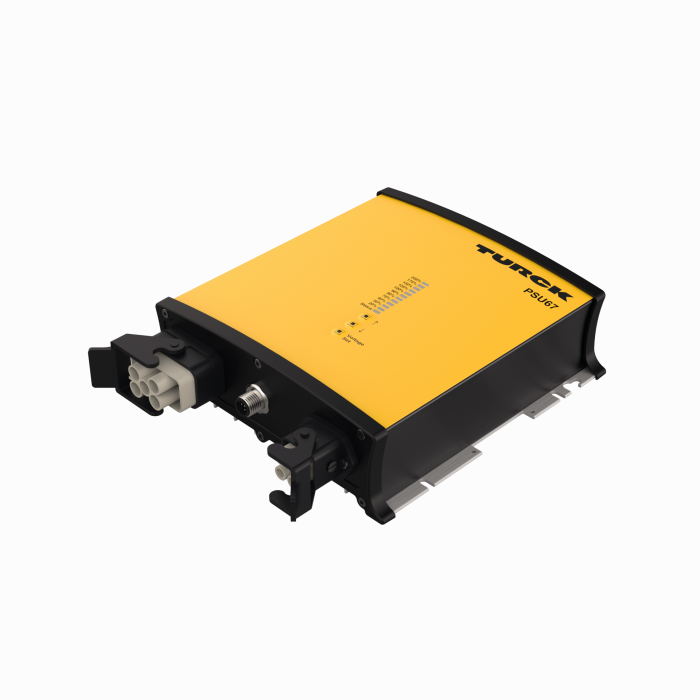

Product PSU67-3P-1H2-1H0-24250
Smart Power Supply Module in IP67
24…28 VDC Output Voltage
3-Phase, 25-A Output Current
Order number: 100028239- Broad temperature range
- Status LED
- High efficiency, > 95 %

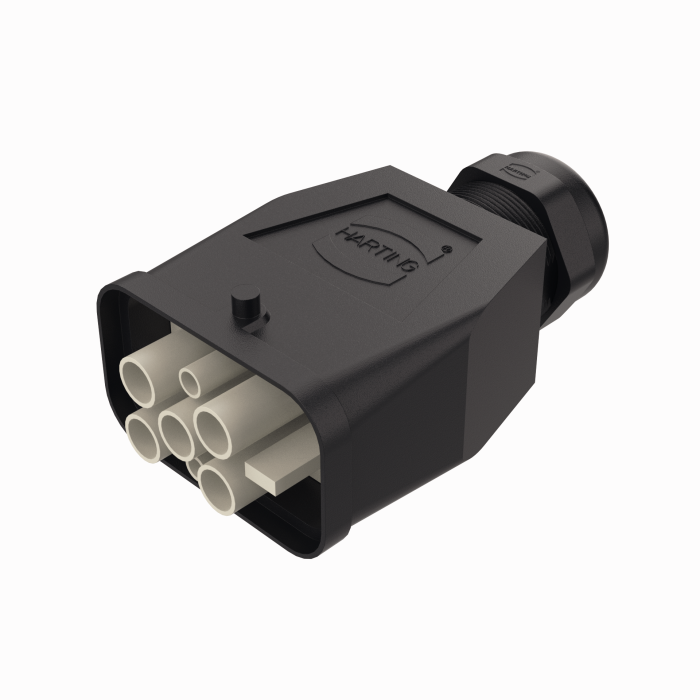

- 3-phase AC input, Han Q4/2

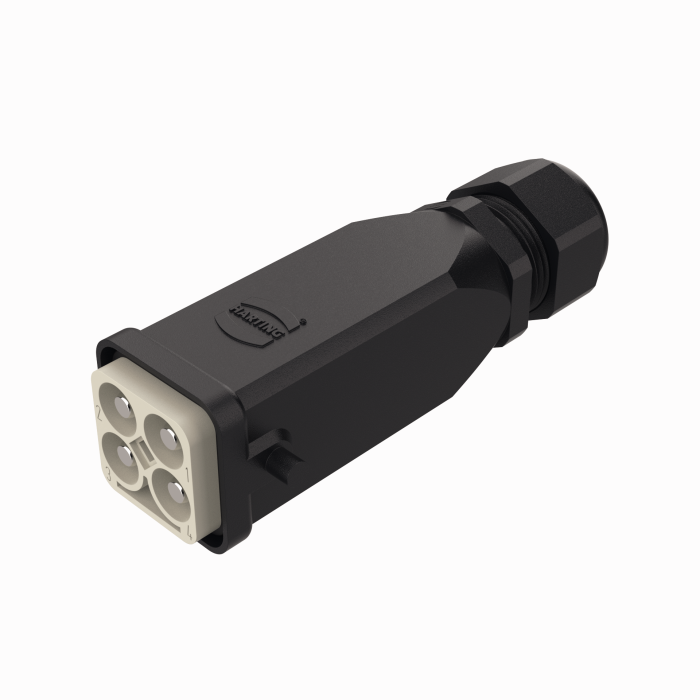

- 24 VDC output, 1 × Han Q4/0
- LED interface and control buttons for maximum flexibility
General data
| EAN | 4047101540116 |
| eCl@ss-Code (V5.1.4): | 27049002 -/- DC supply |
| Customs tariff number | 85044083900 |
| Country of origin | CZ |
| Weight | 1581 g |
Technical Data
| Power supply | 3 × AC 380…480 V |
| Nominal output voltage | 24 V |
| Output voltage | 24…28 VDC |
| Nominal current | 25 A |
| Status interface | Relay output (DC-OK) |
| Internal fuse | No eFuse |
| Parallel mode | no |
| Power Good Output | no |

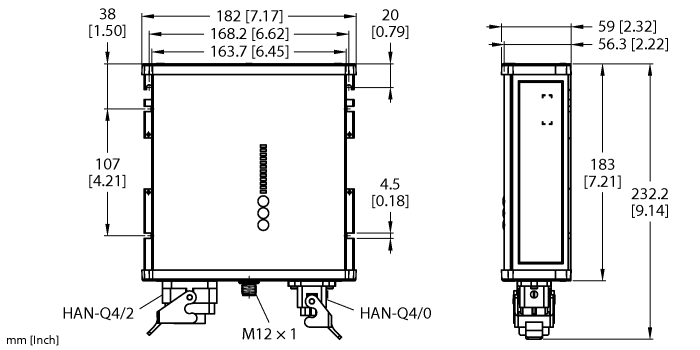

| Dimensions | 183 x 180.6 x 58.7 mm |
| Protection class | IP67 |
Connectivity accessories
|
RKC4.4T-2-RSC4.4T/TXL
Extension cable, M12 female connector, straight, 4-pin to M12 male connector, straight, 4-pin; cable length: 2 m, jacket material: PUR, black; cULus approval |
6625608 |
Connectivity accessories — I/O
|
|
RKC4.4T-2-RSC4.4T/TXL
Extension cable, M12 female connector, straight, 4-pin to M12 male connector, straight, 4-pin; cable length: 2 m, jacket material: PUR, black; cULus approval |
6625608 |
|
WKC4.4T-2-RSC4.4T/TXL
Extension cable, M12 female connector, angled, 4-pin to M12 male connector, straight, 4-pin, cable length: 2 m, jacket material: PUR, black; cULus approval |
6625640 |
